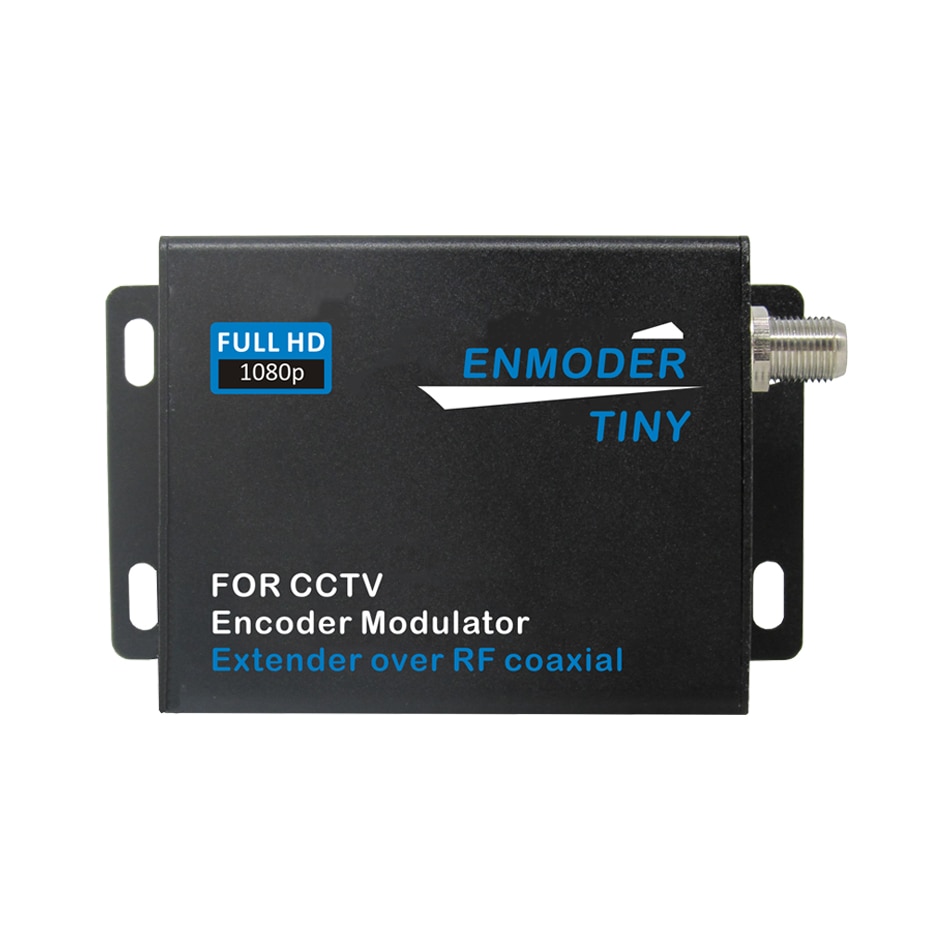

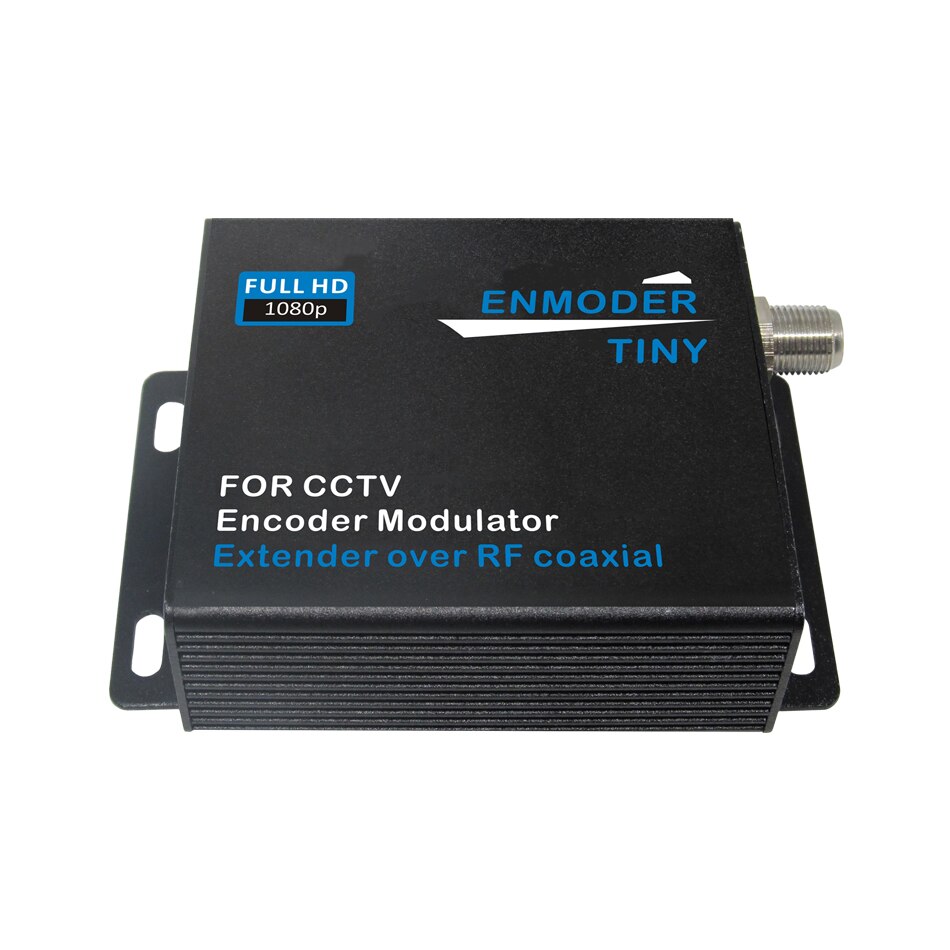

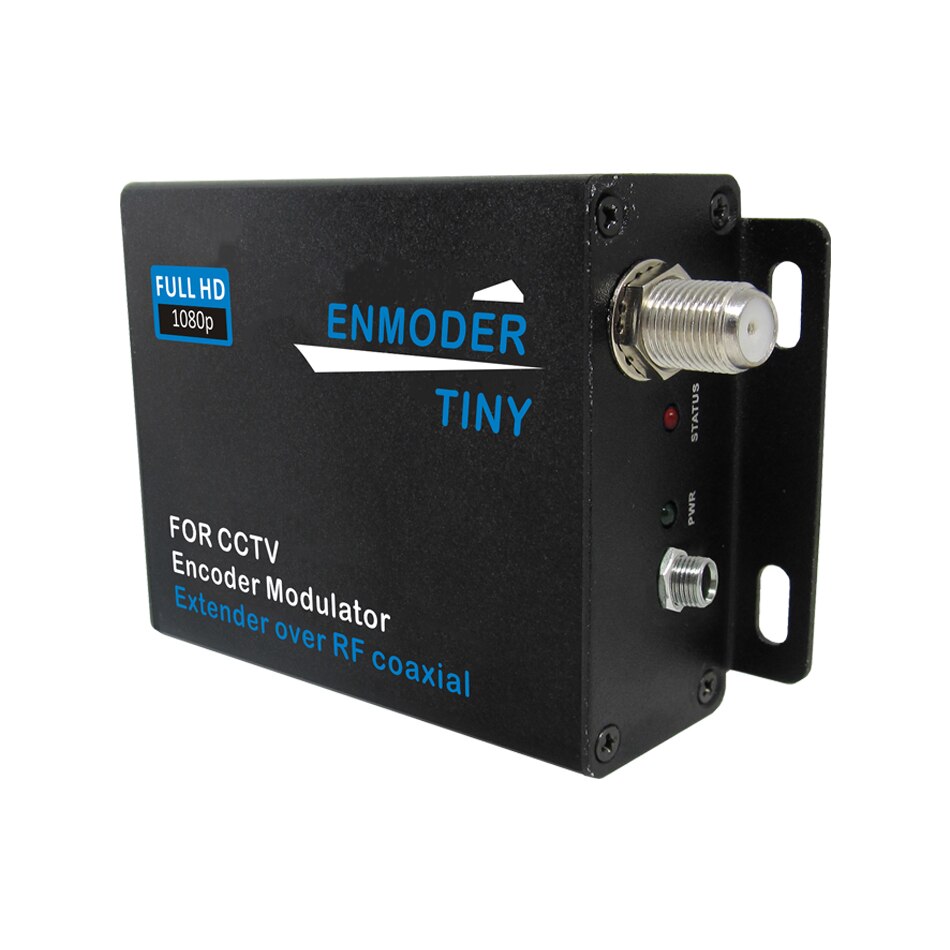

Digitale encoder-modulator HD-MI-versoenbare verlenger oor koaksiale ISDB-T TV RF-modulator MJZSEE V2020I
- Model nommer: V2020I
- Spanning: 12V
- Tik: Digitale
- Tipe1: ISDB-T
- Video-enkodering: MPEG2
- Oudio-enkodering: AAC
- Kanale: 72 CH
- Bandwydte: 6M
- RF reeks: 177.143-857.143MHz
- Kragtoevoer: DC 12V 1A
- Afmetings: 70*66*27mm
- gewig: 130g
This HD-IN extender over a coaxial cable can do digital coding processing from HD-MI signal with DTV technology.
Die produk neem aan RF modulation technology characteristics to transmit multiple RF signals through one
standard coaxial cable for long-distance transmission without amplification.
Die ontvanger kan die hoë-definisie videosein herstel en dit na die TV of monitor oordra.
Oorsig
The HDMI to ISDB-T video encoder converter box is a compact ISDB-T Digital Encoder Modulator that converts HDMI input signals into digital RF channels for coaxial transmission. Ontwerp vir ISDB-Tb in Brazil and ISDB-T in Japan, it supports up to 1080p HD video met H.264/MPEG-4 AVC by default, and also supports MPEG-2 encoding, ensuring full compatibility across both regions.
The V2020I is ideal for distributing HD video over existing coaxial networks without additional amplification, making it perfect for hotels, multi-dwelling buildings, corporate TV systems, or security monitoring setups.
Belangrike kenmerke
-
ondersteun HDMI input up to 1080p resolution
-

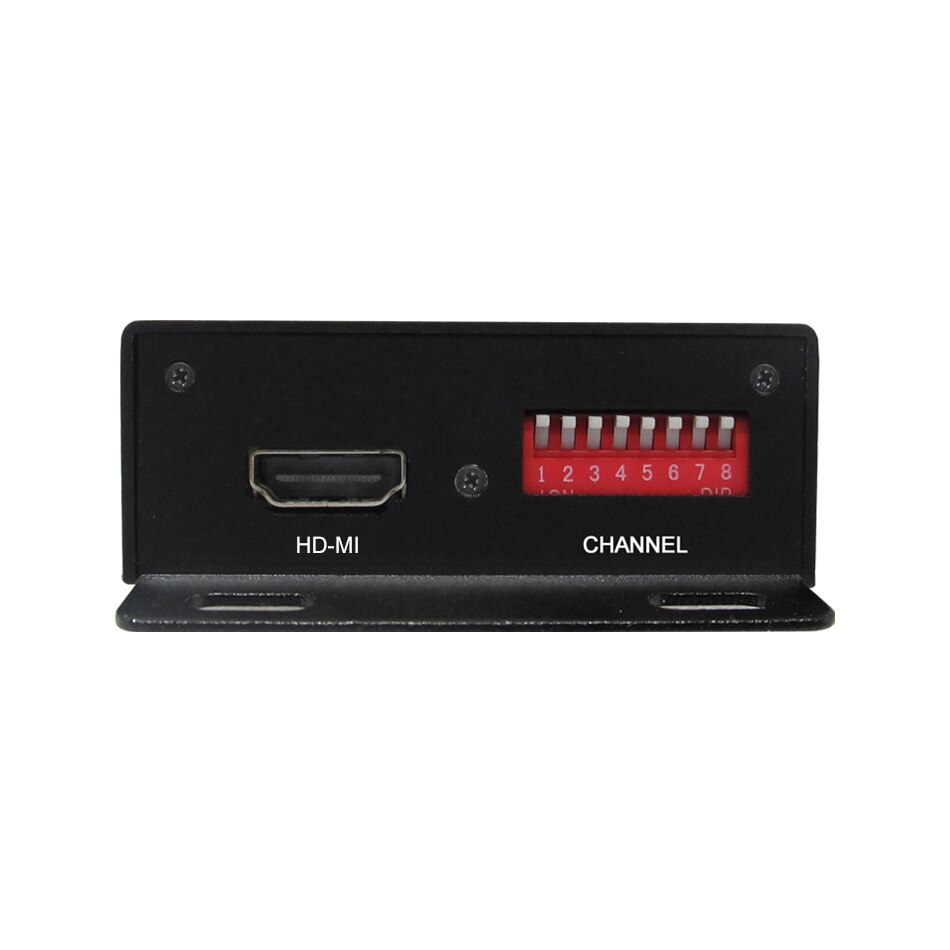

DIP switch channel setting, easy configuration up to 72 kanale
-
Stable RF output level of 100 dBμV for long-distance coax transmission
-
Typical MER ≥ 35 dB ensures excellent modulation quality
-
Small, lightweight, en wall-mountable (70×66×27 mm, 130 g)
-
Quick installation – ready to link in minutes
-
Ideal for HD image distribution, adding channels to TV systems, and monitoring applications
-
Supports both H.264 and MPEG-2 video encoding, compatible with Brazil ISDB-Tb and Japan ISDB-T
spesifikasies
Video-enkodering
| Parameter | Spesifikasie |
|---|---|
| Kodering | H.264/MPEG-4 AVC (verstek), MPEG-2 supported |
| Input Interface | HDMI ×1 |
| Supported Resolutions | Insette: 720@50/60p, 1080@50/60i/p,
Uitset: max 1080@30p |
| Stelsel | PAL / NTSC |
Oudio-enkodering
| Parameter | Spesifikasie |
|---|---|
| Kodering | AAC |
| Voorbeeldkoers | 48 kHz |
Modulator afdeling
| Parameter | Spesifikasie |
|---|---|
| RF Range | 177.143 - 857.143 MHz (ISDB-T) |
| RF Output Level | 100 dBμV |
| Modulation Quality | MER Typ. 35 dB |
| Kanale | Op na 72 via DIP switch |
| Bandwydte | 6 MHz |
Generaal
| Parameter | Spesifikasie |
|---|---|
| Kragtoevoer | DC 12V 1A |
| Afmetings | 70×66×27 mm |
| gewig | 130 g |
Pakket sluit in
-
V2020I Modulator ×1
-
Power Supply ×1
-
Service Card ×1

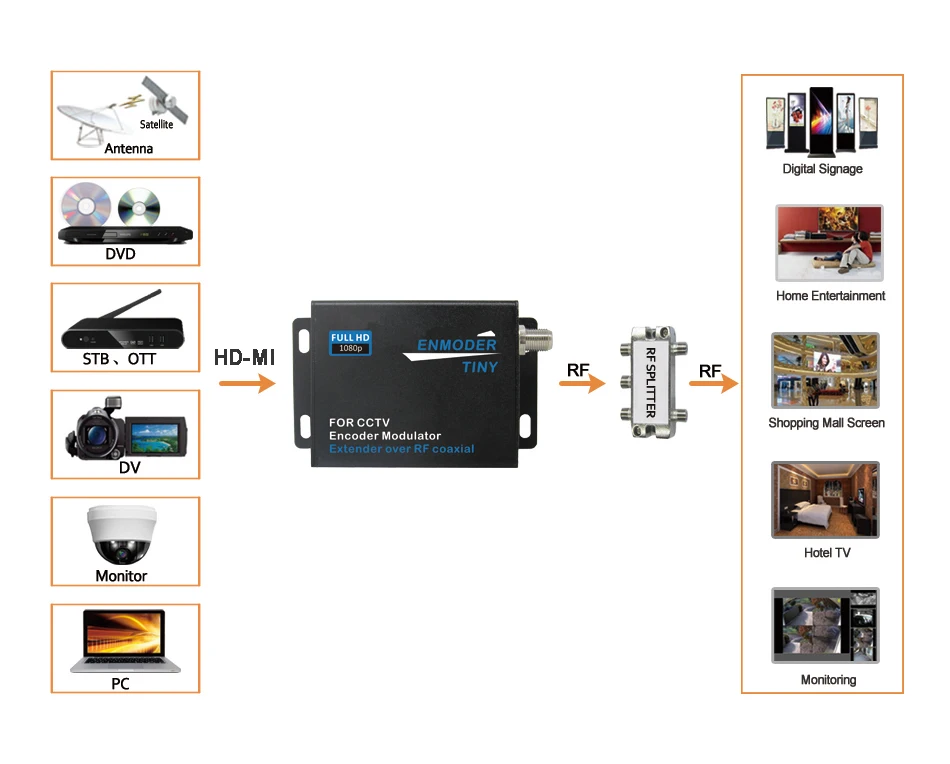

Aansoeke
-
Monitor security cameras on domestic or communal TV systems
-
Distribute HD images for hotels, schools, and corporate buildings
-
Add extra channels to multi-dwelling or CATV TV systems
-
Digital signage and information channels in public spaces
Vrae
V: Can the HDMI input ISDB-T RF output encoder be used in Japan?
A: Ja. Die 1907 supports MPEG-2 video encoding, required by Japan’s ISDB-T system, en H.264, used by Brazilian ISDB-Tb. This makes it compatible with both standards.
V: Can the HDMI to ISDB-T video encoder converter box be used for long-distance coaxial transmission?
A: Ja. Met 100 dBμV RF output, it ensures stable HD signal transmission over long coaxial runs without additional amplification.
V: Can it be used in DVB-T systems?
A: Geen. it is designed specifically for ISDB-Tb and ISDB-T systems. Use a DVB-T compatible modulator for DVB-T.
V: How many channels can I set?
A: Op na 72 kanale using DIP switch configuration.
V: Do you have an SDI input ISDB-T output 6M encoder/modulator?
Hi, we are looking to buy some encoder/modulator ISDB-T for Argentina (6mhz), Maybe VHF or UHF channels. If we can choose, we prefer HD-SDI video input.
Antwoord: Ja, please check the below model.
https://isdb-t.com/wp-content/uploads/2023/10/SDI-ISDB-T-User-Manual.pdf
A: Jammer, the VCAN1907 does not have a firmware option to reduce latency. If you need a low-latency solution for professional video transmission, please consider our professional COFDM models:
👉 Modulator Demodulator Module Encoder Decoder HDMI/CVBS
