1000 Nits Sunlight-Readable 15.6-inch TFTLCD touch monitor 1000cd/m2 18.5 inch 19 inch 21inch

1000 Nits Sunlight-Readable 15.6-inch TFTLCD touch monitor 1000cd/m2 18.5 inch 19 inch 21inch

Beskrivelse

The IS2196 is a 15.6-inch Full HD industrial LCD monitor featuring ultra-high brightness of 1000 cd/m² (1000 nits), capacitive touch, wide viewing angles, and multiple interfaces. Designed for outdoor, semi-outdoor, and high-ambient-light applications with reliable performance and durable metal housing.

---

Oversigt

Det IS2196 15.6-inch High-Brightness Touch Monitor is a professional-grade display solution designed for demanding environments where standard monitors fail to perform. Equipped with an ultra-bright 1000 cd/m² (1000 nits) TFT LCD panel, this monitor delivers exceptional visibility even under strong ambient light or direct sunlight, making it ideal for outdoor kiosks, industrial control systems, transportation hubs, medicinsk udstyr, and commercial signage.

Med en Full HD resolution of 1920×1080, the IS2196 ensures crisp images, sharp text, and accurate color reproduction. Its capacitive touch technology enables smooth, responsive multi-touch interaction, enhancing user experience across a wide range of interactive applications.

The monitor features a durable metal enclosure, wide viewing angles of 85° in all directions, and a contrast ratio of 1500:1, providing consistent image quality from any angle. Designed to operate reliably in extreme environments, it supports a wide operating temperature range from -20°C to 50°C, ensuring stable performance in both indoor and outdoor installations.

Med støtte til HD, VGA, and USB (touch) interfaces, as well as multi-language system compatibility, the IS2196 is a flexible and future-ready display solution for global markets.

---

Funktioner

Ultra-High Brightness – 1000 cd/m² (1000 Nits)

The standout feature of the IS2196 is its 1000 cd/m² high-brightness display, which is significantly brighter than standard commercial monitors. This level of brightness ensures excellent readability in high-light environments such as outdoor kiosks, shop windows, factories, and transportation terminals.

15.6-Inch Full HD TFT LCD Panel

Featuring a 15.6-inch TFT LCD panel with a 16:9 aspect ratio og 1920×1080 resolution, the display offers a perfect balance between size and clarity. Images are sharp, text is clean, and UI elements are clearly visible.

Capacitive Touch Technology

The integrated capacitive touch panel supports precise, smooth, and highly responsive touch interaction. It is ideal for applications requiring intuitive human-machine interfaces, including self-service terminals, POS systems, and industrial control panels.

Wide Viewing Angles (85°/85°/85°/85°)

Thanks to its advanced panel technology, the IS2196 provides consistent color and brightness from almost any angle, ensuring excellent visibility for multiple users simultaneously.

High Contrast Ratio – 1500:1

The high contrast ratio delivers deeper blacks and brighter whites, enhancing visual depth and improving readability of complex graphics and text.

Stable Refresh Rate (60–75Hz)

Supporting refresh rates from 60Hz to 75Hz, the monitor ensures smooth image transitions and stable performance for both static and dynamic content.

Durable Metal Housing

The monitor is built with a robust metal enclosure, offering superior protection, improved heat dissipation, and long-term durability in industrial and commercial environments.

Multiple Interface Options

Equipped with HD, VGA, and USB (touch) interfaces, the IS2196 offers wide compatibility with PCs, industrial controllers, media players, and embedded systems.

Wide Operating Temperature Range

Designed for harsh environments, the monitor operates reliably between -20°C and 50°C, making it suitable for outdoor and semi-outdoor installations.

Global Certifications

Certified with CE and RoHS, the product meets international safety and environmental standards, ensuring compliance for global deployment.

---

specifikationer

• Product Model: IS2196

• Panel Type: 15.6-inch TFT LCD

• Aspect Ratio: 16:9

• Løsning: 1920 × 1080 (Full HD)

• Display Colors: 16.7 Million

• Lysstyrke: 1000 cd/m² (1000 nits)

• Kontrastforhold: 1500:1

• Response Time: 10 Frk

• Synsvinkel: 85° / 85° / 85° / 85° (Up/Down/Left/Right)

• Opdateringshastighed: 60–75 Hz

• Touch Type: Capacitive Touch

• Grænseflader: HD, VGA, USB (Touch)

• Supported Languages: kinesisk, engelsk, fransk, Italiensk, tysk, spansk, Russisk, og mere

• Housing Material: Metal

• Farve: Sort

• Visningsområde: 345.16 × 194.59 mm

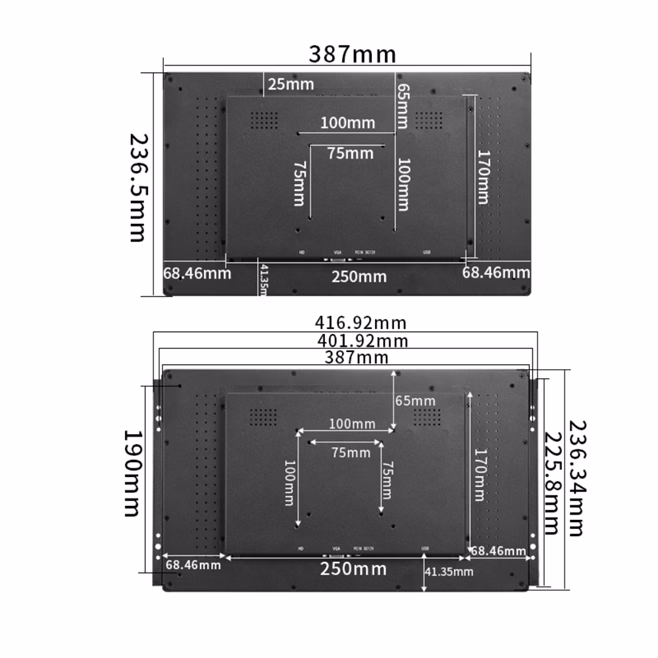

• Overall Dimensions: 387 × 236.3 × 44.2 mm

• Speakers: Valgfri (Not Default)

• Power Plug Options: AU / EU / USA / Storbritannien

• Driftstemperatur: -20°C to 50°C

• Certifications: DET HER, RoHS

---

Ansøgninger

The IS2196 high-brightness touch monitor is suitable for a wide range of professional applications, including but not limited to:

• Outdoor and Semi-Outdoor Kiosks

• Industrial Control Systems

• Medical and Laboratory Equipment

• Transportation Systems (Airports, Railways, Bus Stations)

• POS and Retail Terminals

• Digital Signage and Advertising Displays

• Smart Manufacturing and Automation

• Self-Service Machines

• Access Control and Security Systems

Its sunlight-readable brightness and rugged construction make it particularly suitable for environments where standard monitors cannot maintain visibility or reliability.



---

Different Size Compare

Størrelse	Ratio	Løsning	Price
15.6 jegnch	16:9	1920*1080	$287
18.5 inch	16:9	1920*1080	$348
19 inch	4:3	1280*1024	$340
21.5 inch	16:9	1920*1080	$360

---

Customization Options

To meet diverse project requirements, the IS2196 supports a wide range of customization options:

• Custom Logo Branding

• Touch Panel Customization (Thickness, Glass Type)

• Interface Configuration

• Housing Color Customization

• Speaker Integration

• Power Plug and Voltage Customization

• Mounting Solutions (VESA, Panel Mount, Embedded)

• Firmware and Language Customization

OEM and ODM services are available for bulk orders and specialized applications.

---

Ofte stillede spørgsmål (Ofte stillede spørgsmål)

Q1: Is the 1000 nits brightness suitable for outdoor use?
Ja. Med 1000 cd/m² brightness, the IS2196 is specifically designed for outdoor and high ambient light environments, ensuring excellent visibility even under direct sunlight.

Q2: Does the monitor support multi-touch?
Ja. The capacitive touch panel supports smooth and responsive touch interaction, including multi-touch functionality depending on system configuration.

Q3: Can this monitor work in extreme temperatures?
Absolutely. It operates reliably between -20°C and 50°C, making it suitable for both cold and hot environments.

Q4: What operating systems are supported?
The monitor is compatible with most mainstream operating systems including Windows, Linux, and Android, depending on the connected device.

Q5: Are speakers included by default?
Speakers are valgfri and not included by default. They can be added upon request.

Q6: What certifications does this product have?
The IS2196 is certified with CE and RoHS, meeting international safety and environmental standards.
