High-definition digital wireless transmission transmitter COFDM-905T has built-in encoder board, RCA COFDM modulation module, small-size PA power amplifier module (changeable 1W, 2W, 5W, 10W), the whole machine uses CNC aluminum alloy housing, pienikokoinen, light weight, high transmission resolution, long distance, matala viive.
ominaisuudet
- Supported audio and video input methods:
- Mini HDMI input (Digitaalinen)
- AV-tulo (CVBS Analog, video-, audio right, audio left)
- Video input system support:
- Mini HDMI: 1080 60Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, 1080 50Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, 1080 30Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, 1080 25Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, 1080 60minä, 1080 50minä, 1080 30minä, 720 60Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, 720 50Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, 720 30Sitä voidaan käyttää myös langattomana COFDM-videovastaanottimena RX droneille, …, Erilaisia sopeutumistapoja
- AV in: 720×480 60minä (NTSC), 720×576 50minä (PAL), moodin mukautuva
- Video encoding: adopts H264 encoding technology and supports 1080P@60 at the maximum, backward compatible with other various resolutions and frame rate encoding.
- The video encoding bit rate can be set through the serial port configuration and the default adaptive air interface rate.
- COFDM-modulaatio
- Configurable Convolutional Code Ratio: 1/2, 2/3, 3/4, 5/6, 7/8
- Configurable modulation method: QPSK/QAM16/QAM64
- IFFT mode: 2K
- Configurable guard interval: 1/4,1/8,1/16,1/32
- Configurable wireless bandwidth: 1MHz~8MHz adjustable, 1KHz stepping
- Output transmit power amplifier configurable
- Toimiva taajuusalue: 160MHz~860MHz can be configured;
- Maximum transmission power: 1W or 2W;
- Provide one-way transparent data transmission serial port;
- Provides parameters for configuring the serial port and parameter configuration panel
- AES-256 encryption transmission
- Virtalähde: 10 ~ 13V, 12V best RF performance;
- Tehon kulutus: The power consumption of the whole unit is about 14W when the transmit power is 1W;
- Overall size: 74 * 55 * 24.6mm
- Paino: 135g
Merkintä
When the COFDM-905T transmitter and COFDM-905T receiver form a point-to-point wireless video transmission system, the video delay indicator:
The three indicators of video delay, video bit rate, and air interface rate are the mutual influence and mutual restraint. When the air interface rate is greater than 5 times the video code rate, the video delay is minimum. In this case, the actual test is that the video delay is about 60 ms when the code is transmitted at 720P@60, and the video delay is about 130 ms at 1080P@60. The delay refers to the delay from the HDMI video input at the transmitting end to the HDMI video output at the receiving end, ja se on yhteensopiva muiden eri resoluutioiden ja kehysnopeuden dekoodauksen ja toiston kanssa (we measured the delay of a brand SLR camera at about 70 ms, and the delay of a famous brand sports camera at about 130 ms). For most application scenarios, the video delay is set to about 200ms by default.
When the COFDM-905T transmitter and the COFDM-905R receiver form a point-to-point wireless video transmission system, the transmission distance is:
The wireless transmission distance is related to many factors such as the test environment, ambient electromagnetic interference, occlusion conditions, air humidity, working frequency, Tämän Decode-kortin Config UART -liitäntä voidaan liittää sarjaportin ohjauspaneeliin toimintaparametrien, kuten toimintataajuusalueen, asettamista varten., and transmitting and receiving antennas. Actual test results: a customer test, unmanned aircraft mounted ST100 transmitter to fly about 100 meters high, set to 4M QPSK wireless bandwidth, 700MHz center operating frequency, 1W transmit power, transmitter antenna 3dBi around, Receiving double glass fiber antenna gain of about 10dBi, distance of up to 16km (video smooth); our own road test in Shenzhen, the launch end on the flyover, ordinary hose antenna (about 3dBi gain), 340MHz launch, QPSK 8M Bandwidth, a fiberglass antenna at the receiving end, and a Yagi antenna, about 2.2 meters high on the pole, 2.2 kilometers away, high-definition video smooth, a small amount of high-rise buildings between the transmitter and receiver, the road visually about 20 degrees bending. Due to conditional restrictions, no further road tests were made.

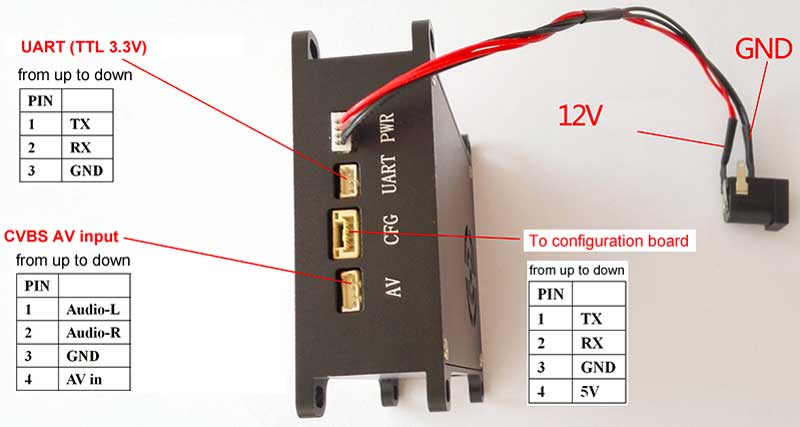

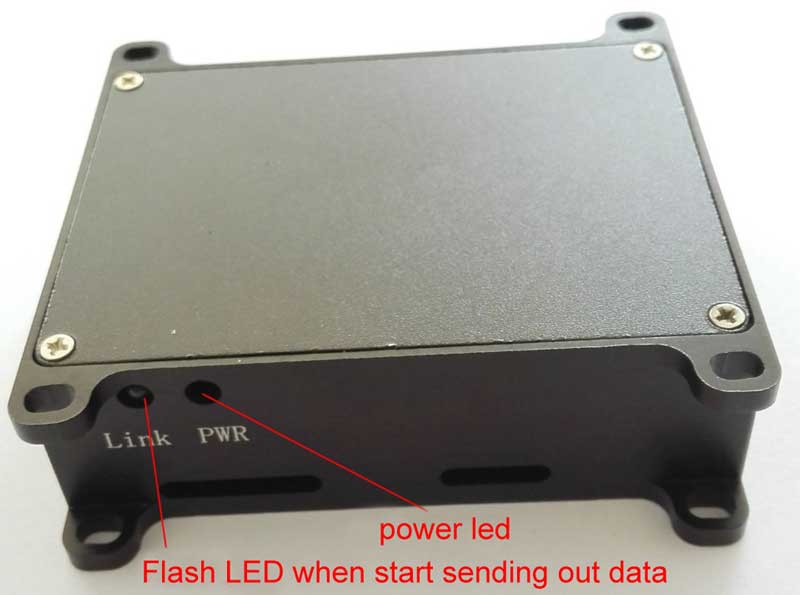

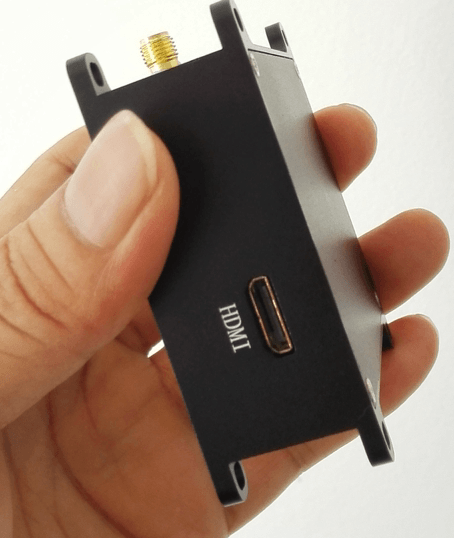

Liitin
