무선 비디오 송신기용 HDMI AV

무선 비디오 송신기용 HDMI AV - COFDM 변조기

상호 작용: HDMI and Analog CVBS video input;
주파수 대역: ~에서 200 (~에서 170 is also ok) 에 860 메가 헤르츠, tuning interval – 1 KHz; Other frequency needs extra frequency down converter
Channel width: ~에서 1 에 8 메가 헤르츠, tuning interval – 1KHz;
비트 레이트: 까지 31 Mbit / s;
지연: 까지 100 에스;
UART tuning control;
해결: both support 1080p/720p;
작동 온도: ~에서 -20 에 +70 °C;
Modulation type COFDM: QPSK/16QAM/64QAM;
Receiver’s sensitivity: 97 dBm의;
The receiver must be diverse.

TX-RX Module

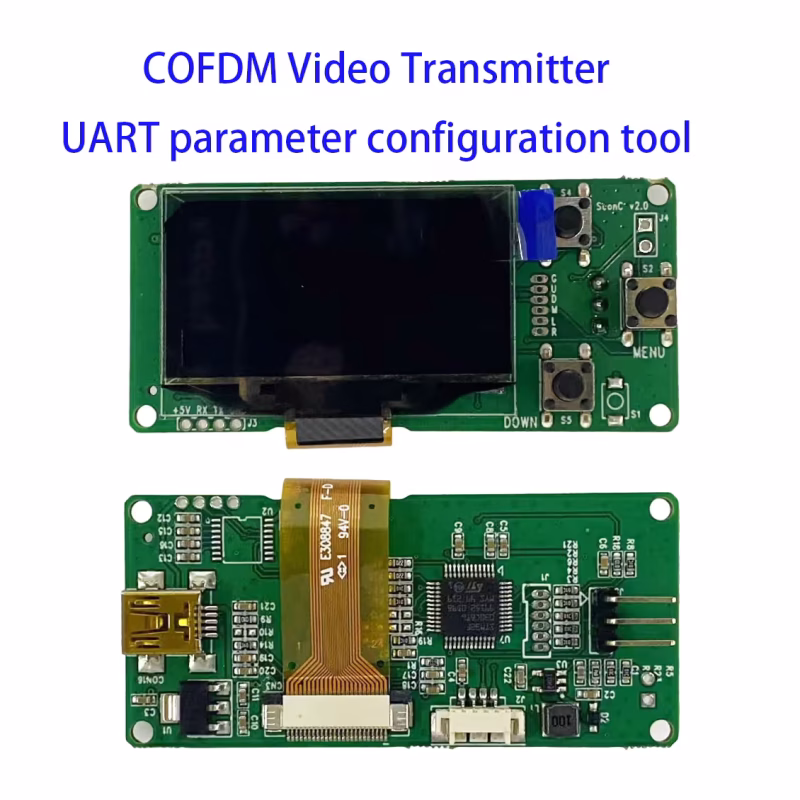

UART parameter configuration tool.

low latency HDMI AV to COFDM Modulator for FPV

COFDM 비디오 송신기

What is the cofdm FPGA chip that made your COFDM demodulator? Dibcom 9090 for demodulator tuner.

cofdm wireless video transmitter frequency range is 170-860Mhz, over this frequency range you need an extra frequency down converter.

Do you have a cofdm ip mesh radio? We don’t have a cofdm IP mesh radio, but we have a cofdm transceiver, 업링크, and downlink that have different working frequencies, 예를 들어, 300Mhz and 500Mhz to avoid frequency interference.

cofdm system modem transceiver or modulation, please check our model vcan1816.
HDMI to DVB-T cofdm modulator chip price, please check our model vcan1776.
