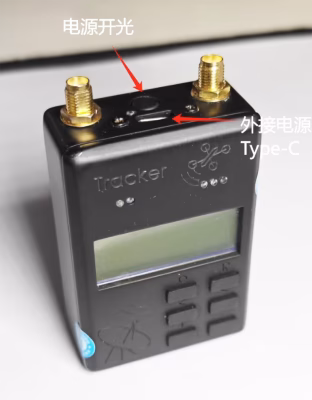

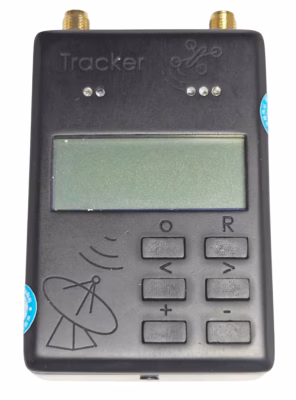

1500-5000 meter Portable FPV Tracker Drone Detection

Introduction

1. Designed for portability, this FPV tracker drone detection module is capable of identifying the transmission signals emitted by a wide array of commonly used civilian drones, encompassing quad-rotors, fixed-wing aircraft, and various DIY or commercially produced flying drones.
2. Simultaneously, the detection module boasts a compact size, minimal power consumption, operational capabilities across a wide temperature range, and suitability for deployment in outdoor settings. To ease user integration, the detection module offers a range of communication and alarm options, including serial ports, general-purpose input/output (GPIO) interfaces, and other methods.

Feature

1. The drone’s portability is a key advantage, as its compact size and lightweight design make it easy to carry and deploy in various locations. With remarkable speed, a lone soldier is capable of both assembling and disassembling their equipment.
2. The autonomy features, including preset route flight and autonomous obstacle avoidance, significantly reduce the workload on operators, thereby enhancing the efficiency of reconnaissance missions.
3. Stability: To ensure stable UAV flight even amidst challenging weather conditions and complex environments, an advanced flight control system is implemented.
4. To fulfill the requirements for extended reconnaissance missions, the drone’s battery and power systems necessitate optimization to achieve a longer flight duration.
5. At this time, our company offers a diverse selection of drone detection modules to cater to the varied needs and preferences of our valued customers.







   Specifcation

   Integrating cutting-edge unmanned aerial vehicle technology, high-precision sensor technology, and real-time data processing capabilities, the 1500~5500m radius UAV individual detection equipment offers unparalleled situational awareness and operational efficiency for individual combat, patrol, and reconnaissance missions, thus representing a significant advancement in these areas.

   Due to the high-performance detection module carried by the UAV, the equipment is capable of achieving accurate detection within a range of 1500 to 5500 meters, even in complex environments, significantly enhancing the battlefield awareness and decision-making capabilities of individual soldiers.

   1. Detection type: omnidirectional detection
   2. Detection frequency: 1.2GHz\2.4GHz\3.3GHz\4.8GHz\5.2GHz\5.8GHz;
   3. Detection distance: 1500-5500m (the test results vary depending on the aircraft model and electromagnetic environment)◆ Minimum detection altitude: 0 m
   4. Power consumption: no more than 5W
   5. False alarm rate: ≤ 1%
   6. Host weight: ≤300g
   7. User perception: indicator light, sound, vibration
   8. Fault prompt: low battery warning indication
   9. Rechargeable lithium-ion battery
   10. Continuous use time: not less than 4 hours
   11. Environmental adaptability: -20°~ +55°C±2 ℃
   12. Power supply voltage adaptability: DC 3.3~5V

   Application

   1. Military reconnaissance is a critical function encompassing a wide range of operations, including border patrol, assessment of enemy positions and capabilities, battlefield surveillance to maintain situational awareness, and various other essential tasks that are vital to mission success.
   2. In urban counter-terrorism scenarios, including hijackings, counter-terrorism operations provide crucial support through covert reconnaissance and the delivery of real-time intelligence.
   3. This security system is perfectly suited to provide comprehensive protection, enabling thorough inspection and constant monitoring of vital facilities and high-activity areas.
   4. In the event of emergencies such as earthquakes and floods, the emergency rescue system is designed to assist search and rescue personnel in their efforts to quickly locate and extract trapped individuals from the disaster zone.

   Because drone individual detection equipment offers excellent detection performance, efficient identification capabilities, a convenient warning system, and applicability across a wide range of scenarios, it has become an indispensable tool in modern military operations, security initiatives, and emergency rescue efforts.

   This equipment significantly enhances the combat effectiveness and battlefield awareness of individual soldiers while simultaneously furnishing commanders with precise intelligence, thereby facilitating the making of well-informed, data-driven decisions on the battlefield.

   As technology continues to advance and applications continue to expand in depth, this equipment is certain to take on an increasingly significant role across a wider range of fields.









   The screen is divided into three interface states, defined as follows:

   interface	illustrate
   Welcome screen	Displayed at startup, it can display a custom startup screen.
   Main Interface	Display status information and alarm information.
   Menu interface	Enter through the main interface to configure device parameters.

   Menu functions

   Table 3–2Menu functions

   project	illustrate
   Language Selection	Currently, only English is supported.
   Volume Control	The volume can be adjusted from 0 to 10, where 0 is mute and 10 is the maximum volume.
   Backlight brightness adjustment	The screen backlight brightness can be adjusted from 0 to 5, where 0 means no backlight and 5 means maximum.
   LED Light switch	On Controls whether to use the LED light.
   Vibration intensity adjustment	The vibration intensity can be adjusted from 0 to 3, where 0 is no vibration and 3 is the strongest.
   Detection sensitivity selection	The detection sensitivity can be adjusted from 1 to 5, where 1 has the fewest false alarms and 5 has the strongest detection.
   Detection band selection	The detection frequency band range can be selected. (Configurable only after fully powering on.)
   Restore the default configuration	Restore to the default configuration.
   Device Information	Display device version, serial number, and other information.
