Transmissor de vídeo sem fio de longo alcance & Receptor – 15km a 150km, Criptografia AES128, ultra-low latency, bidirectional video & data link for UAVs and robots.
Consulta do cliente:
"Olá, is this the transmitter AND the receiver? Does it come with antennas? Do you stock a HDMI to IP video encoder? How much does it cost?"
Understanding the Customer’s Needs
This customer is looking for a complete long-range wireless video transmission system, including both the transmissor e receptor, com antennas included. They also need to know if the system supports Entrada de vídeo HDMI, which means they are likely using a camera with HDMI output and need an HDMI-to-IP encoder to integrate it into the wireless system. The question about price shows the customer is ready to evaluate the total cost for a plug-and-play solution.
o TX900 series long-distance wireless video transmitter-receiver perfectly fits this customer’s requirements. It’s a professional COFDM-based bidirectional transmission system designed for UAVs, na UGV, and other industrial applications requiring stable, criptografado, and ultra-long-range HD video and data transmission.

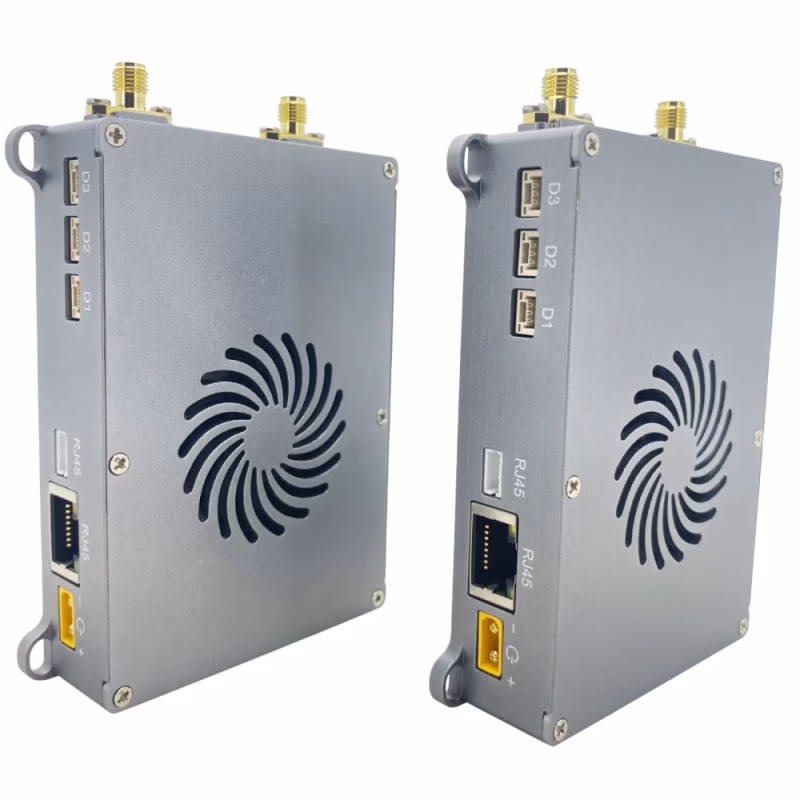

22km–150km Long-Distance Wireless Video Transmitter Receiver
Pontos de venda / Recursos / Vantagens
- Full Set Package: Includes transmitter, receptor, antennas, and all necessary cables.
- AES128 Video Encryption: Ensures high security for video and data transmission.
- Ultra-Long Range: Power amplifier options of 2W, 5W, and 10W enable distances of 15km, 22km, 30km, 55km, 80km, 100km, and 150km (LOS and NLOS).
- Frequency Options: Choose 800MHz, 1.4GHz, or 2.4GHz; opcional FHSS frequency hopping for interference resistance.
- Ultra-Low Latency: Only 28–76ms, ideal for real-time drone or robot control.
- Dual Antennas: Main TX/RX antenna and auxiliary RX antenna for more stable links.
- Vídeo + Data + Controlar: Supports two-way communication—video downlink, Telemetria de dados, and uplink control commands.
- Adjustable Bandwidth: 3/5/10/20MHz with a total throughput up to 30Mbps.
- Web UI Management: Configurar, monitor, and adjust wireless parameters easily.
Entrada / Output Interfaces
- 2× Ethernet ports (RJ45 + 4ALFINETE)
- 3× RS232 data ports (configurable as TTL / SBus / UART / RS485)
- Audio In / Out
- Dual SMA Antenna Ports
- DC Power Input (XT30PW or XT60PW)
If your camera has HDMI output, you will need an external HDMI-to-IP encoder (available on request) to convert HDMI to a digital IP stream. The receiver can output via Ethernet to a computer or NVR, or back to HDMI via a decoder.
Product Applications
- UAV / Drone Long-Range Video & Telemetria
- UGV / Robotics Remote Operation
- Surveillance and Border Security
- Emergency Response & Disaster Relief
- Industrial Inspection & Military Reconnaissance
Principais recursos
- Distância de transmissão: 15–150 km (LOS/NLOS)
- Bandas de frequência: 800MHz / 1.4GHz / 2.4GHz
- Encriptação: AES128
- Amplificador de potência: 2W / 5W / 10W
- Latência: 28–76ms
- Bandwidth: 3 / 5 / 10 / 20MHz
- Networking: Point-to-point / Multi-point / Relé / Malha IP
- Modulação: QPSK / QAM16 / QAM64
Opções de personalização
- Selectable transmission range (15–150km)
- Choose power level (2W / 5W / 10W)
- Frequency band customization (800MHz / 1.4GHz / 2.4GHz)
- Opcional TX900B module for frequency hopping (FHSS)
- Flexible interfaces for flight controllers (RS232 / Ttl / SBus / UART / RS485)
- Optional antennas: magnetic base or U-shaped clamp
perguntas frequentes
T1: Is it a complete set (transmissor + receptor)?
sim, the package includes both transmitter and receiver units, dual antennas, and cables.
2º trimestre: Does it come with antennas?
sim, antennas for both TX and RX are included.
3º T: Can it support HDMI cameras?
sim, with an additional HDMI-to-IP encoder (available separately).
4º trimestre: What is the transmission distance?
Options include 15km, 22km, 30km, 55km, 80km, 100km, and up to 150km depending on power and environment.
Q5: What is the latency?
Only 28–76ms, suitable for real-time video and control.
Q6: What kind of encryption does it use?
AES128 video encryption ensures privacy and data protection.
Recommendation
If you need a seguro, ultra-long-range wireless video and data transceiver for Uavs, na UGV, or industrial monitoring, a TX900 Long-Range Wireless Video Transmitter and Receiver is your best choice.
For HDMI-based cameras, we recommend pairing it with an HDMI-to-IP encoder for full compatibility.
