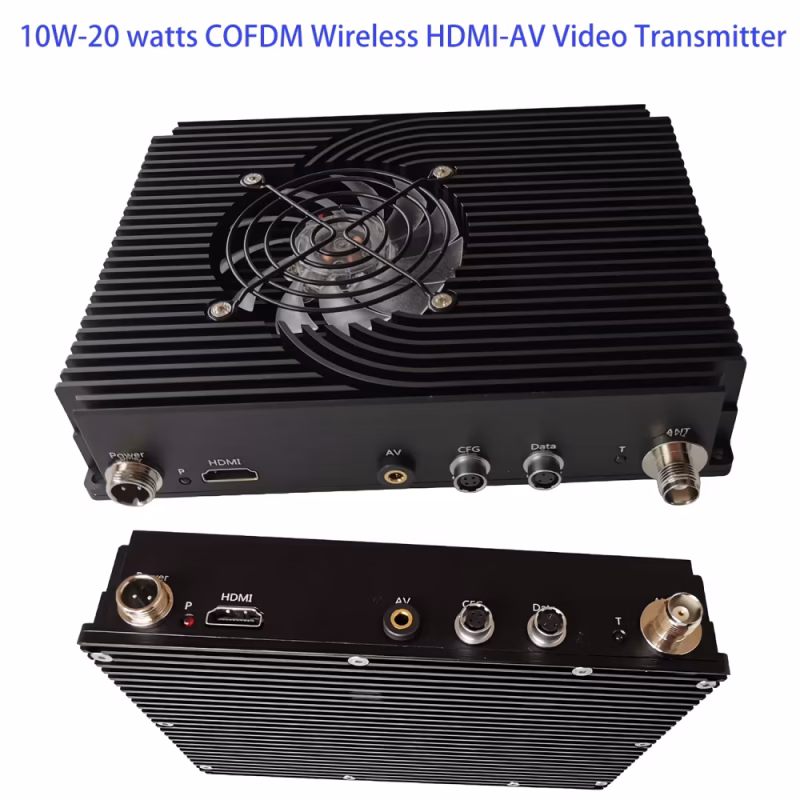

10 watts power amplifier ground robot wireless video transmitter and receiver

10 watts power amplifier ground robot wireless video transmitter and receiver

1) What is the overvoltage protection?
No overvoltage protection function, but reverse power protection function

2) What is the input voltage range?
DC24~30V

3) What is the length of the antenna cable with a magnetic base?
1.5 meter

4) What connector is on the magnetic base antenna cable?
SMA Kvinna, after receiving the order, you can consider communicating with the antenna supplier to see if it can be changed to TNC female

5) Is there a cooler on the case?
There is a cooling fan, which is enough for heat dissipation

6) Is there a power amplifier?
Of course, 10W

7) Is there protection against cable breakage?
I don’t know what cable it refers to, there is no additional measure for the antenna extension cable

8) Is there any documentation for the components of this kit?
The module documentation inside please check the below link
https://ivcan.com/p/modulator-demodulator-module-encoder-decoder-hdmi-cvbs/

9) What is the receiver antenna length and gain?
Antennas for different frequencies will have different lengths and, therefore, different weights.

Antenna FrequencyMhz	Antenna Lengthcm	Gross Weightgrams	GaindBi	Notera
470Mhz	78.5	253	5.5	Single Load Whip Antenna
510Mhz	109	289	7	Double Load Collinear Antenna
610Mhz	90.2	280	7	Double Load Collinear Antenna
710Mhz	80	275	7	Double Load Collinear Antenna
