ISDB-T MPEG4 digital tv receiver
VCAN0870 ISDB-T MPEG4 digital tv receiver full segment HDMI out USB recorder Philippine ISDB-T
VCAN0870 ISDB-T MPEG4 digital tv receiver full segment HDMI out USB recorder
Full HD 1080P ISDB-T Digital TV Terrestrial Receiver, HD MPEG 2, MPEG4, HD H.264
سمات
1.USB 2.0 for software update/PVR/movie,موسيقى,picture media play back
2.Fully compliant with ISDB-T (MPEG 2/MPEG 4/ ح.264)
3.Full HD output in 720p, 1080أنا, 1080ص
4.Less than 0.5 Watt in standby
5.Multi-lingual OSD and user-friendly UI
6.Parental Control, Teletext, دليل البرامج الإلكتروني supported
7.Favorite Group supported
8.PVR recorder supported with external USB
9.RCA CVBS outpuinterface
تحديد
| RF Input/Demodulation | |
| نوع الموصل | F-Female x1 for ANT input;F- Female x1 for LOOP THROUGH |
| Input Frequency | (UHF)470-866ميغاهيرتز,(VHF)170-230ميغاهيرتز |
| عرض النطاق الترددي | 6,7,8ميغاهيرتز |
| Signal Input level | -80ديسيبل – -20ديسيبل |
| Input Impedance | 75Ohm |
| ANT Power | 5V(On/Off),Imax=100mA |
| Demodulation Scheme | QPSK,16-قم,64-قم |
| Demodulation Type | OFDM, fully compliant with ISDB-T Standard |
| Media Features | |
| Picture | JPEG,BMP,PNG |
| مزود الطاقة | |
| Adapter | |
| AC Input | 100-240VAC@50/60Hz±5% |
| استهلاك الطاقة | Max10W |
| Memory | |
| Flash | 32Mbit |
| DDRII Memory | 512Mbit |
| Physical Characteristics | |
| Physical Size | 170مم * 96مم * 40مم |

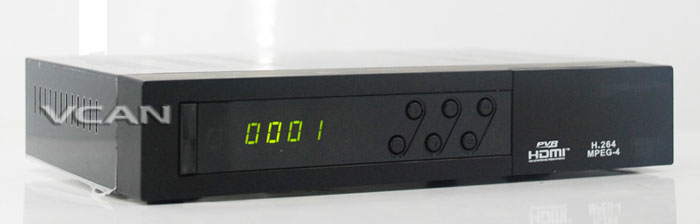

| Front Panel | |
| Key | POWER, CH ,CH- |
| Indicator | LED Indicator for Power On/Off |
| Remote Control Input | Infra-red receiver |
| Display | Option for 4 Digits 7-segment LED display |
| موصل | 1xUSB2.0 interface |

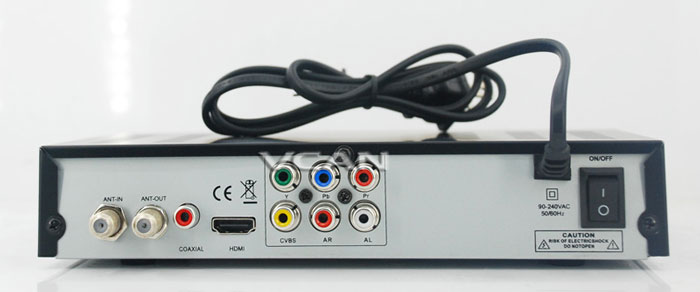

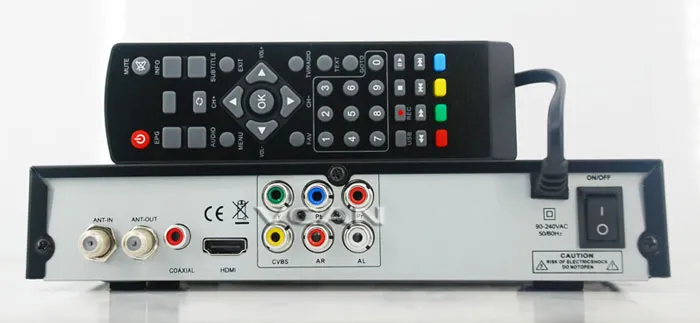

| Rear Panel | |
| موصل | 2 x F-Female connector for ANT.IN and Loop THROUGH |
| اتش دي ام اي 1.3 interface, up to 1080p | |
| 1xAV RCA( كفبس, L/R) | |
| 1xCOAXIAL | |
| Remote Specifications | |
| Battery | (AAA 1.5V)*2 |
| Operation Distance | 8m Min.(front distance from receiver) |
| Operation Angle Range | ±45°(horizontal),±20°(vertical) |
نقاط البيع:
See New model
Digital ISDB-T HD/MPEG-4
H.264 TV Set top box receiver
1080i HDMI output
VCAN0870 ISDB-T MPEG4 digital tv receiver full segment HDMI out USB
Packing Details
| Model Number | VCAN0870 |
| One Sample Weight (including package) | 1.1(كلغ) |
| Quantity per carton | 20(pcs) |
| Gross Weight per carton | 15.7(كلغ) |
| Volume Weight per carton | 9.8(كلغ) |
| حجم الكرتون | 61X33X22(سم) |
