Car DVB-T2 antenna Digital tv aerial built-in signal enlarger booster VCAN1185
car DVB-T2 antenna recommended
Точки за продажба
*Car DVB-T2 Antenna High Gain

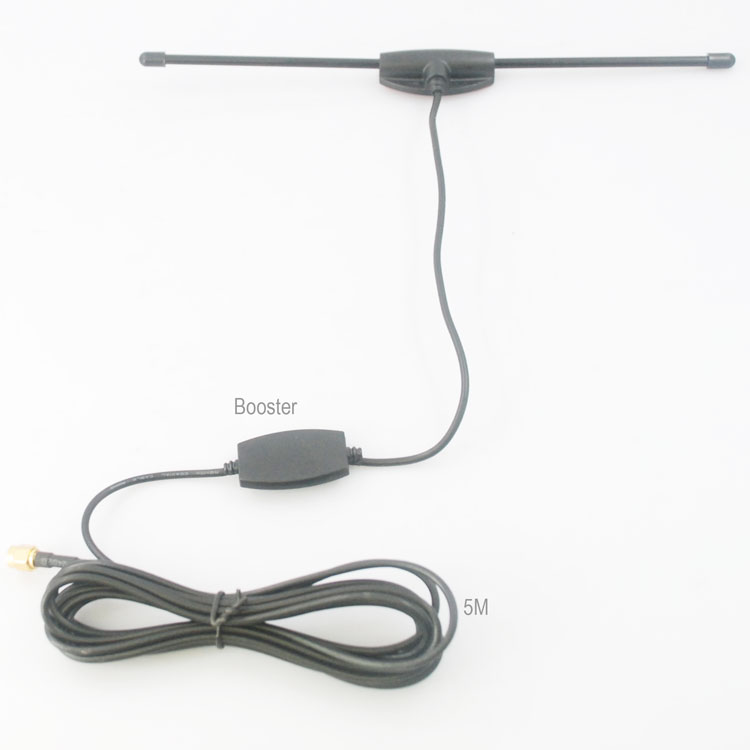

*Built-in TV signal amplifier, enlarger, booster
*Честота: VHF 170~230MHZ UHF 470~860MHZ
*Gain: > 25db
*Waterproof, outdoor or indoor

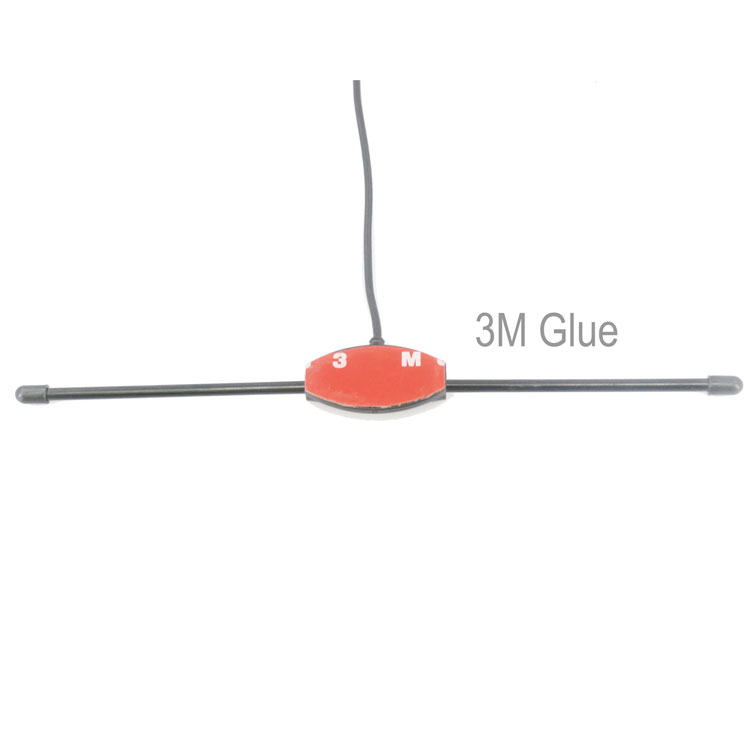

*Easy to install, just Paste anywhere
Характеристика
Built-in TV signal amplifier, enlarger
Честота: VHF-H170~230MHZ,
UHF470~860MHZ, V.S.W.R: <3
High Gain: > 25db

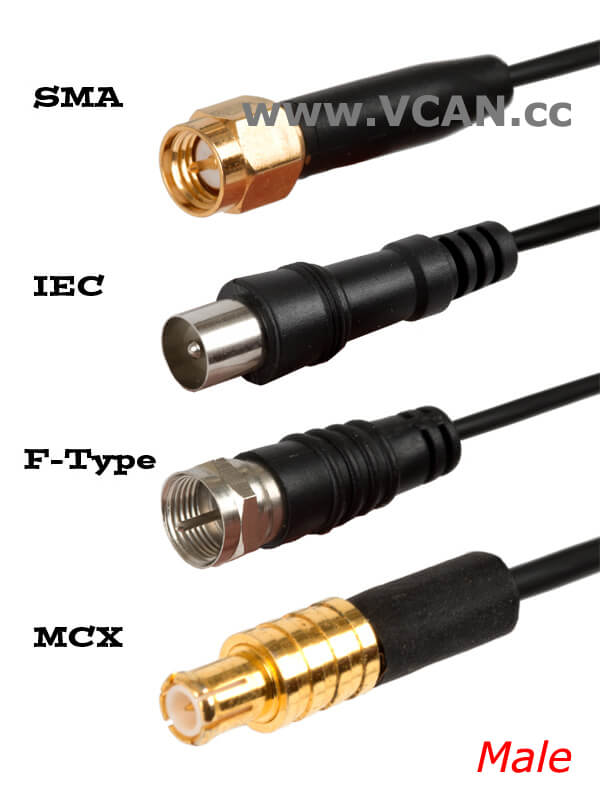

TV antenna connector type: Default: SMA
We also can produce another MCX, IEC or F type if you need, please tell us before delivery when you order.
TV antenna cable length: 5Meter (default, another length is optional)
We also can produce if you need 2M, 3М, 6M or longer. Please tell us when order.
TV signal enlarger power supply: 3.3V for DVB-T24, 5.0V for DVB-T221
Спецификация
| Модел | VCAN1185 |
| Operating Voltage range | DC5±0.5 V |
| Operating current | 20±3mA |
| Честотен диапазон(MHz) | 470-860 |
| V.S.W.R | ≤2.5 |
| Gain(dBi) | 22±3dB |
| Входен импеданс(Ω) | 50 |
| Polarization Type | вертикален |
| Antenna Length(мм) | 200 |
| Line Length (мм) | 5000 |
| Тип конектор | IEC MCX SMA F type |
| Operating temperature | -20℃-85℃ |
| Install the way | Adsorption |
