4K MINI MINI GIMBAL SORTIE K
Il s'agit d'un système à double sortie réseau 4K intégrant 7 times digital zoom and high precision professional three-axis enhance stability pod. It adopts network IP and HDMI dual output, and the pan-head adopts high precision encoder FOC control scheme, qui a les caractéristiques d'une stabilité élevée, petite taille, poids léger et faible consommation d'énergie. La caméra à lumière visible utilise un CAPTEUR haute définition avec des pixels effectifs de 8 million; Le système prend en charge la sortie de flux RTSP réseau 4K et 1080P. Réseau, serial port and S.BUS, and can control the camera and tripod head, et prendre en charge le stockage TF local.
Caractéristiques fonctionnelles
- 4K visible light
- Supports 7x digital zoom
- Support IP, HDMl dual output
- 3-Axe stabilisé cardan,110g
- Réseau, S.BUS and UART controlsd
- TF card double record

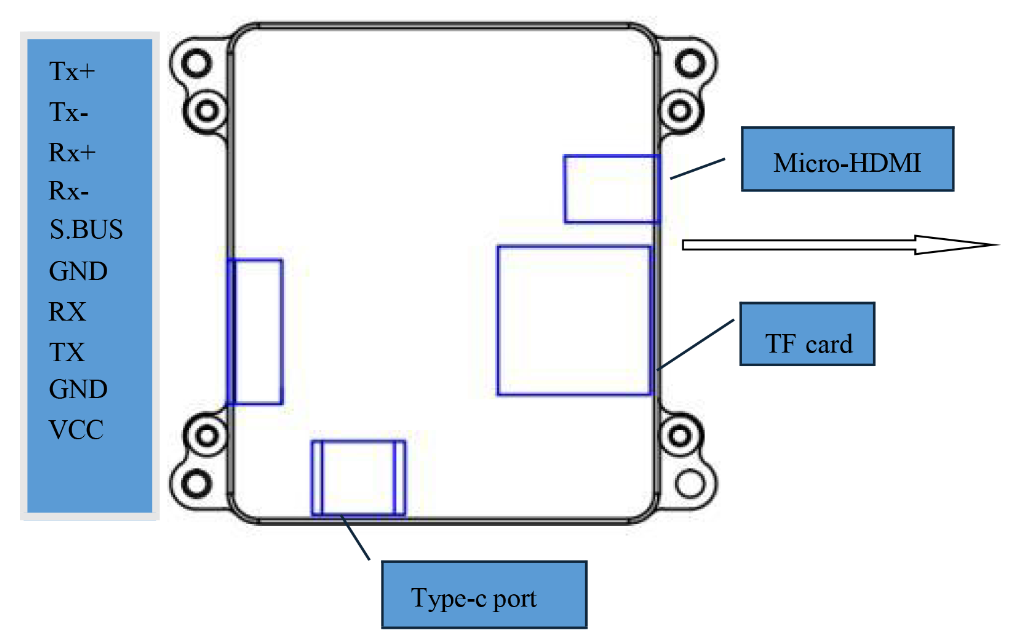

Whole machine sstructure
Remarque(1):Serialport: 3.3V, LVTTL UART.
| tension | C.C 12 V-26,2 V |
| APower | 4W dynamique |
| Statut de travail | |
| Roll Angle action range | -45°— +45° |
| Pitch Angle action range | -45°— +100° |
| Heading Angle action range | -150°— +150° |
| Angle jitter in pitch and roll direction | ± 0,02 ° |
| Horizontal Angle jitter | ± 0,03 ° |
| One-click back to center function | One key automatic fast return to the initial position |
| Poêle- tilt control speed is adjustable | When the pan-tilt rotates, the speed is adaptive based on the current speed mode and the multiple of the visible light camera. |
| Mode de contrôle | Support network IP control, SBUS control, serial port control (optional PWM control) |
| Caméra légère visible | |
| Capteur | 1/2.8 pouce 8 megapixel HD CMOS SENSOR |
| Digital zoom | Supports 7x digital zoom |
| Compressed storage mode | H264, H265, local TF storage for video streams |
| Vidéo HDMI | Micro-D HDMI 1080P 30fps |
| Network Output mode | 1080P 30FPS |
| Angle de vue (Agazer) | 25lentille MM, Agazer: 10.5°x 7.8° |
| Dimensions | 4 :120MM H: 68mm |
| Environnement de travail | -10°C to +45°C/ 20% à 80% RH |
| Storage environment | -20°C to +60°C/ 20% à 95% RH |
| Applications principales | Photographie aérienne de drone |
| Weights | 110± 10g |
Remarque (2): Tension :Dc12V~26.2v, need to pay attention to the power supply instantaneous voltage can not exceed 27V.
Taille d'installation de la structure
The installation hole spacing ofthe shock absorber plate is 65.5mmx65 5mm; Installation holesize:M3
Diagramme d'application de connexion
