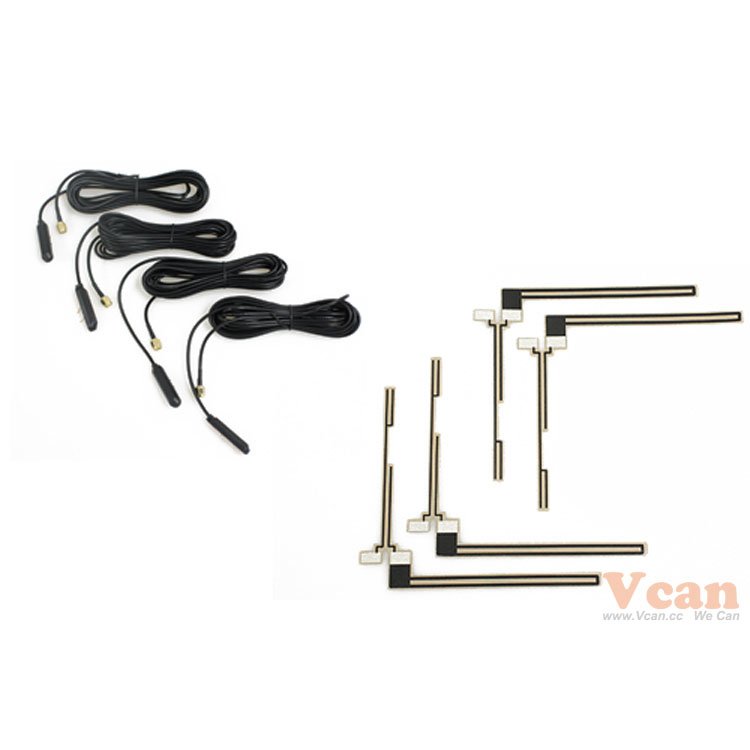

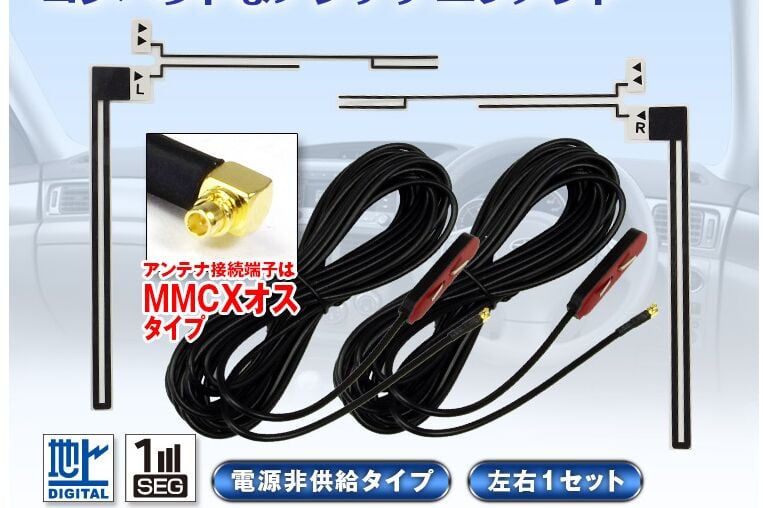

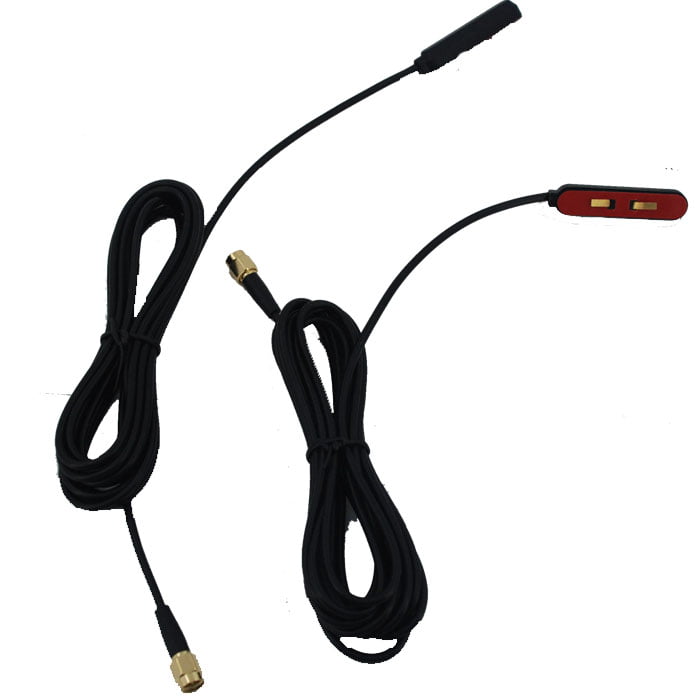

ISDB-T Antenna ANT-301 Digital TV Antenna Digital TV film aerial MCX SMA IEC F connector
ISDB-T Antenna ANT-301 Digital TV film Aerial For Car ISDB-T
Digital TV Antenna For Car DVB-T receiver, ISDB-Tアンテナ
特徴
- 電源: built-in 3-5V
- Current consumption:10 – 40ミリアンペア
- Output impedance: 50W
- 周波数範囲:170~230MHZ 450~860MHZ
- Amplifier gain:22±3dB
- SWR:£ 2
- Noise factor: £7dB

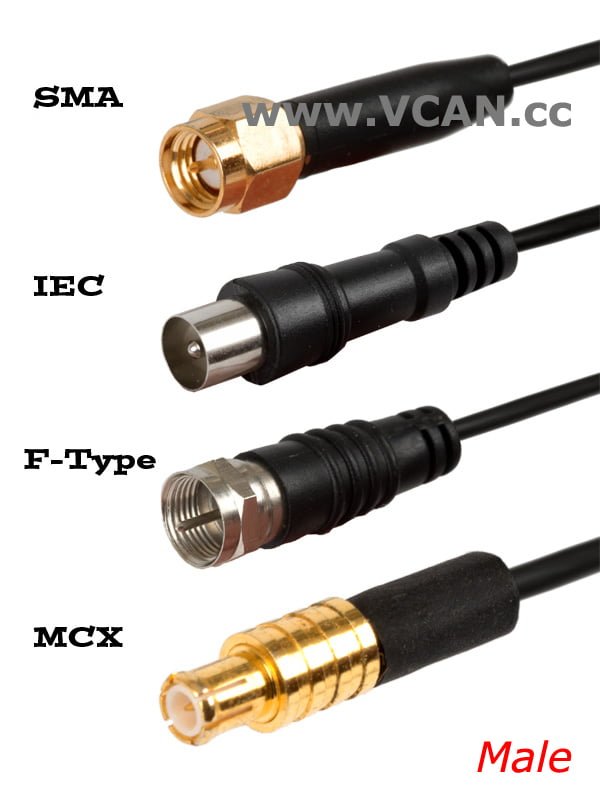

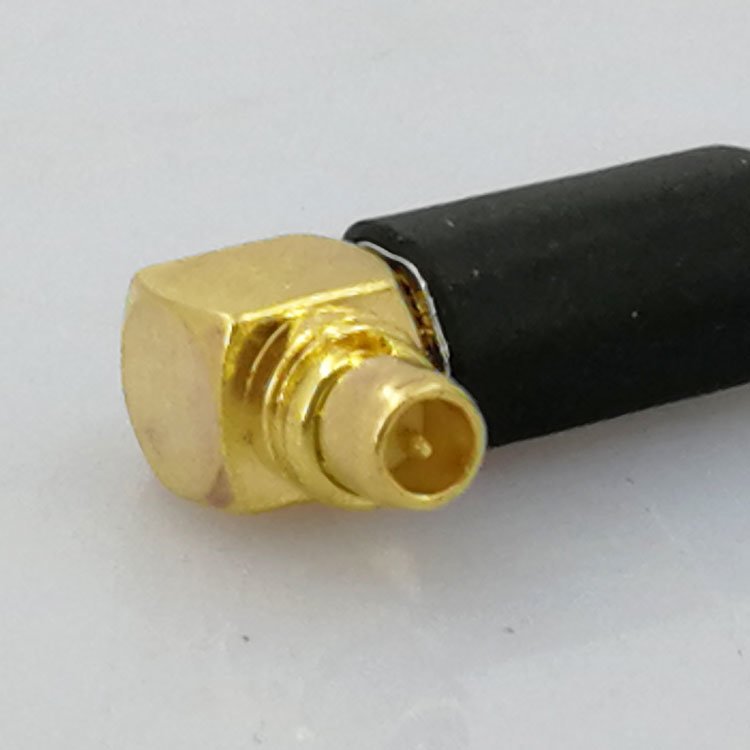

- The antenna interface can be customized according to your requirements. Default is MCXP or MCXJ.
仕様
- 1.ケーブル: RG174 external diameter: Ф2.8±0.1mm
- Shield: Ф0.1*64 Braided copper wire
- Inner conductor: 7*0.16 mm
- Insulation diameter:1.5±0.1 mm
- Characteristic impedance: 50W

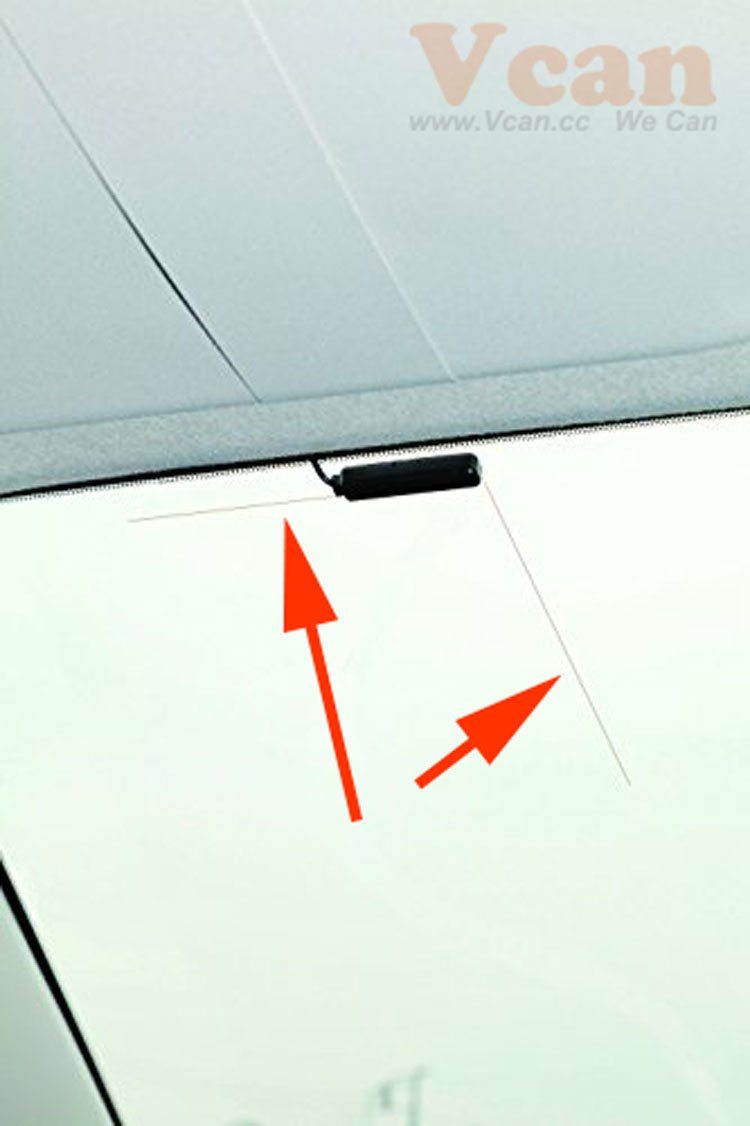

- Fixed form: Paste type
- 長さ: 5 メーター
- Connect Model No: SMA
- 重さ: 59.8g
- 色: 黒
- パッキング: PE bag
セールスポイント
デジタル TV アンテナ
- 周波数範囲: 170~230MHZ 450~860MHZ
- Amplifier gain: 22±3dB
- SWR:£ 2
- Noise factor: £7dB
