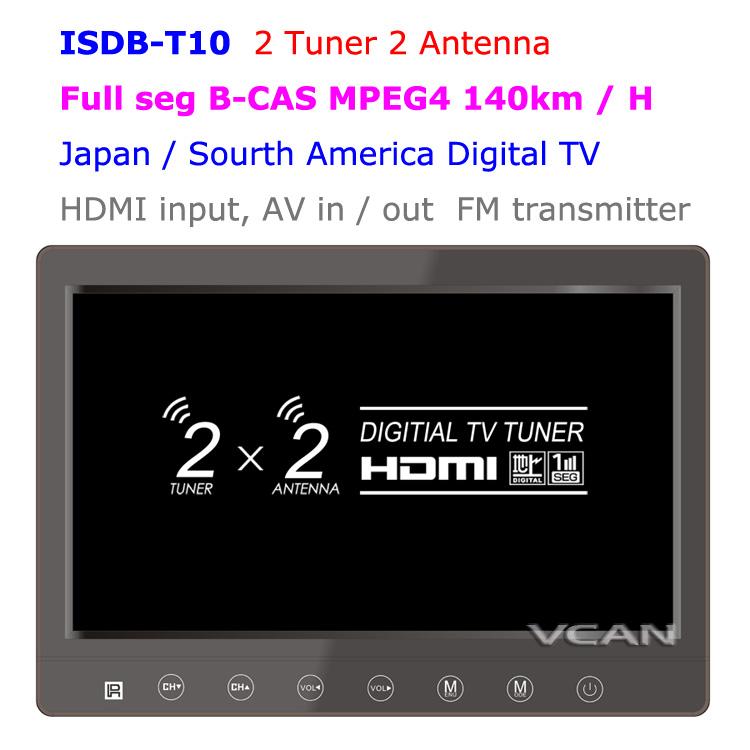

2 tuner 2 antenna 10.1 inch full segment digital TV receiver for Japan









ISDB-T10 10.1inch digital TV receiver with full seg

1、Products Suitable for application of countries:：Japan、Brazil、southAmerica and other countries and regions.

2、Products adopt advanced diversity reception ISDB chip.

receiving sensitivity is strong（input level<-83dBm@ Full-seg64QAM C/R=3/4；input level <-95dBm@1-segQPSKC/R=2/3）.

3、product also can support RGB Interface of LCD screen, Resolution the biggest support up to 1980X1080.

4、Product has powerful TV program management functions, support 7 days navigation electronic program guide (EPG).

5、Products has power off memory function, after turn on the television, the current channel is last time channel when outage.

6、has over voltage, over current, reverse, EMI interference resistance,、power purify and protective measures .

7、wide power input, support 10~30Vinput；

8、Strong stability and high receiving sensitivity, upgrade, and reliable.

ISDB system





Input

Input Frequency：（Brazil：174~216MHz & 470~806MHz）（Japan：170MHz ~ 770MHz）

input power：-95dBM~-0dBM

input impedance：50ohm

Demodulation

modulation system：QPSK，16-QAM，64-QAM

bandwidth：6MHz

II decoding

video decoding：MPEG4，AVC/H.264



Audio decoding standard:MPEG2，AAC

Supported language

Japan/ Portuguese/ Spanish/English

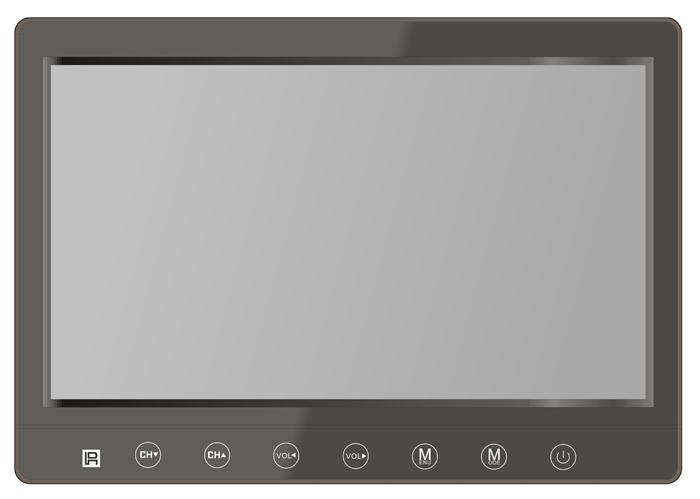

LCD screen display

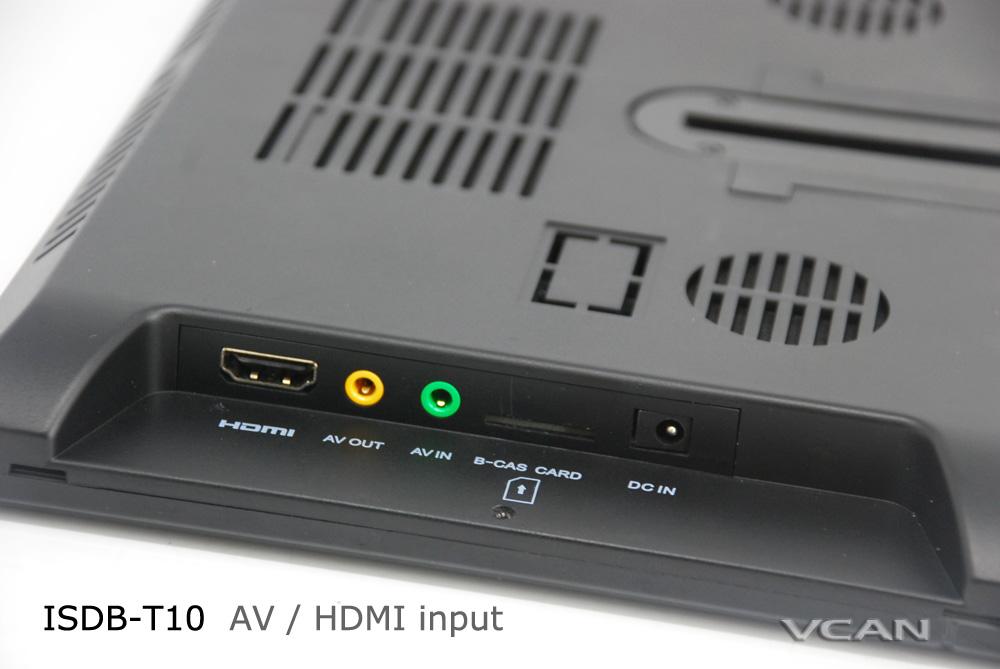

RGB output

analog video output(optional)



Video output port (CVBS)

output mode：Japan：NTSC；Brazil：PAL-M

output impedance：75ohm

Output level：1.0±20mVp-p（output format CVBS）

Digital videooutput（optional）

HDMI 1.4

Support format:

• 1920x1080p @ 60Hz
• 1920x1080i @ 30Hz
• 1280x720p @ 30Hz
• 720x480i @ 60Hz
• 720x480p @ 60Hz

audio output



1 way 2W/8Ωloudspeaker；1way arphone

USB interface

Package Updated

，machine power supply interface（ 5V DC），

Input power

Car battery / Car lighter

power consumption

About 3.5W

Working Temperature

-20—75℃

size

Length 143MM×wide 88M×thickness 23MM

weight

About 250G
