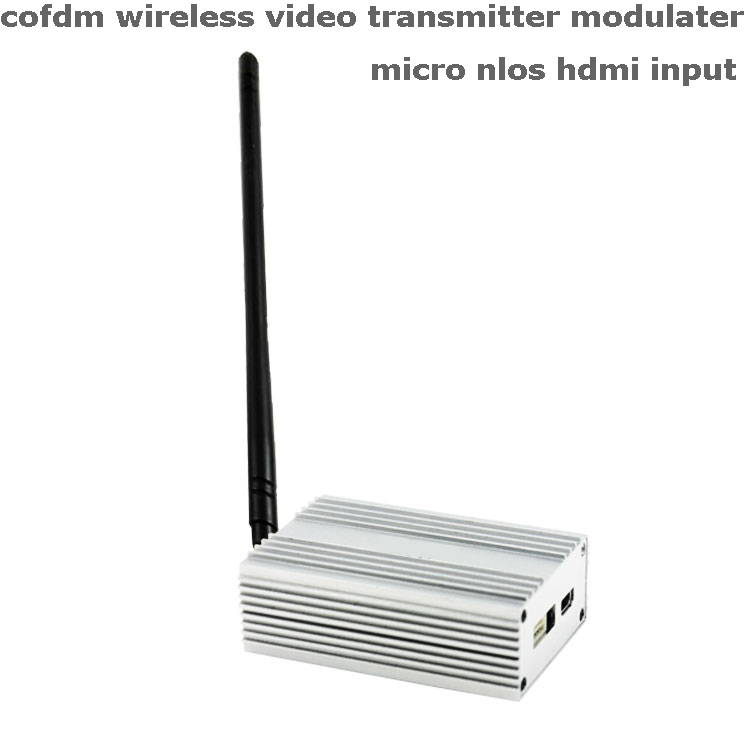

Cofdm wireless video transmitter
Cofdm wireless video transmitter Advantages:
1.Long range transmission distance;
2.Real-time transmission systems;
3. Delay time very short less than 500ms;
4.Perfect image quality, brighter colors and image smoothness.
Cofdm wireless video transmitter Features:
1. Transmission power 1W;
2.Extreme lightweight and rugged housing;
3.Vibration and shock resistant;
4.Applied COFDM modulation, MPEG-2 / H.264 compression;
5.Small dimensions;
6.Perfect for mobile applications;
7.High quality of video transmission, no mosaic, no dragging phenomenon, stable power with adjustable dynamic power;
8.Support NLOS transmission, strong diffraction capability.
Specification
| Key Items | |||
| Key Items | TX | RX | |
| Case1 | Case2 | ||
| Video interface | HDMI input | USB output HDMI put | Wifi |
| PCB size | 50*40*14mm | 105*80*11mm | 50mm*35mm*11mm |
| Weight | <20g | <10g <25g | <13g |
| video format | 720p@30fps 1080p@30fps | 720p@30fps 1080p@30fps | 720p@30fps |
| ANT interface | flexible | ||
| RF Frequency | ISM900MHz band (902MHZ~928MHz) | ||
| RF power | 23dbm(adjustable） | min.input:-93dbm max.input:<-5dbm | |
| Bandwidth | 6mhz | ||
| channel amount | 4channels | ||
| Amount of users allowed | / | No Limitation | |
| Transmitted Distance | >2km | ||
| Time Delay | 300millisecond | ||
| OS | / | Android only | Android IOS |
| supply | 5V@<1.5A | 5V@<150mA 5V~36V@<5W | 5V@<600m |
| Working Temp | -10℃~+50℃ | -10℃~+50℃ | |
cofdm wireless video transmitter
cofdm modulator

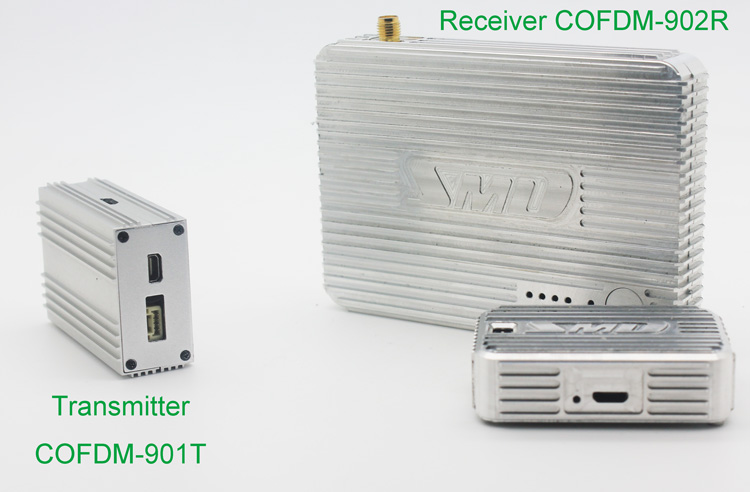

cofdm transmitter and receiver
