Digital Terrestrial ISDB-T TV Tuner Receiver Set-Top Box Fully HD 1080P H.264 USB Decoder for Brazil Chile Peru
New front design
Sell HD ISDB-T free and receive free TV set-top box spot promotions in South America, Costa Rica. Philippines, Maldives, and Botswana.
| Model | ISDB-T | |
| Hardware | ||
| CPU | MSTAR-MSD7805(128 pin)MIPS 34Kf@600MHz | |
| Memory | 32X16Mbit DDR2 Frequency1066 | |
| Flash | 32M bytes | |
| Demodulator Type | ISDB SOc Chip Set | |
| TUNER | Rafael R836 | |
| Front Panel | USB 2.0 Embedded One Host, | |
| 4-digit LED display on front panel | ||
| red LED Standby,green LED Lock | ||
| Panel KEY,POWER,CH+,CH- | ||

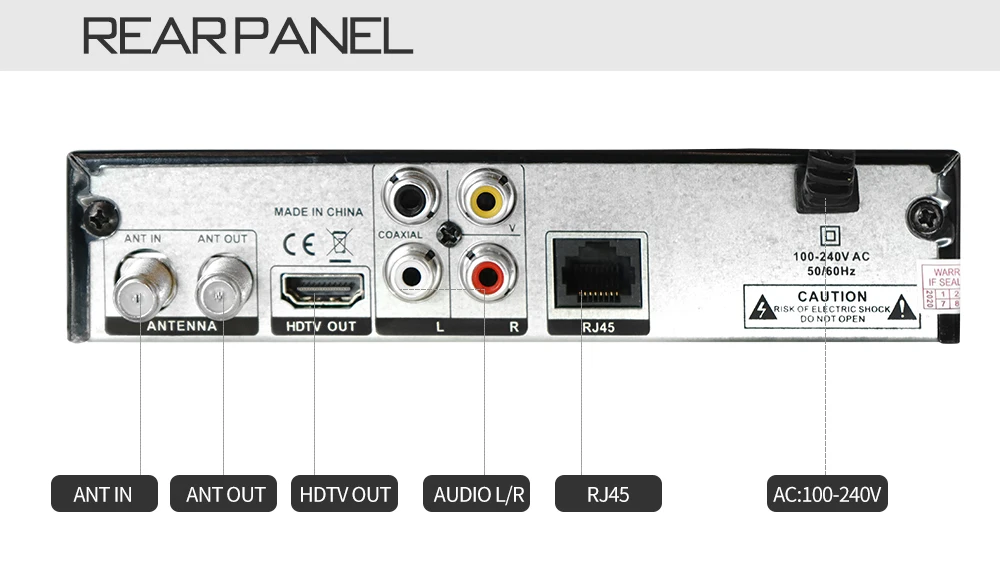

| Rear Panel | Tuner RF input connector | EC-type IEC169-2 Female |
| Tuner RF Loop through connector | IEC-type IEC169-24 Male | |
| HDMI V1.3/V1.4 | ||
| RCA CVBS AL AR Connector x1 | ||
| Ypbpr RCAx1 | ||
| Coaxial x1 | ||
| Power AC100~240V 50Hz/60Hz | ||
| Demodulation | ||
| Terrisal Receiver Standard | ISDB-T broadcast (1,3,13 segment) | |
| Input RF Frequency | VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz. | |
| Bandwidth | 6MHz | |
| Demodulatio | QPSK/16QAM/64QAM/QPSK or DQPSK | |
| FEC | 1/2,2/3,3/4,5/6,7/8 Automatic | |
| Guard Interval | 1/4,1/8,1/16,1/32 | |
| FFT Mode | 2K/8K/32K | |
| Input level | -83–5dBm | |
| Sortware Features | ||
| ·used for any ISDB-T countries like Brazil,Peru,Argentina,Chile,Venezuela,PhilippinesEcuador | ||
| ·Supports all ISDB-T broadcast (1,3,13 segment),MPEG-2/MPEG-4 AVC/H.264 HD/SD Video,DiVX compliant |
||
| ·Support 3D interface | ||
| ·Support teletext/subtitle/muti-language | ||
| ·Supported 7-Day EPG function,VBI Teletext | ||
| ·AUTO,16:9 Pillar Box,16:9 Pan G Scan,4:3 Letter Box,4:3 Pan G Scan,4:3 Full,16:9 Wide Screen | ||
| ·USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback | ||
| ·Video output resolution:480i/576i/480p/576p/720p/1080i/1080P | ||
| Decoder | ||
| Video Decoder | Compliant with:MPEG-4 part10/MPEG-2 ISO/IEC 13818 MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps) MPEG-2 Main Profile#Main Level(15Mbps) H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps) |
|
| Audio Decoder | MPEG-1,MPEG-2(Layer I/II),MP3,AC-3(Dolby Digital),AAC-LC,WMA E-AC-3(Dolby Digital Plus)decoding HE-AAC 5.1 multi-chhannel decoding |
|
| Powerful Multimedia Features | ||
| MediaCodec | avi.mpg,dat,.vob,.div,.mov,.mkv,jpeg,.ts etc | |
| Audio Codec | WMA,MP3,AAC(.wma,mp3,m4a) | |
| Photo Codec | JPEG,BMP,PNG | |
| License | ||
| Optional DTS,Dolby Digital,Dolby Digital Plus,RM/RMVB,Divx License. | ||
| Accessories | ||
| Accessories | gift box | |
| AV cable | ||
| TV BOX | ||
| IR remote control | ||
| User Manual | ||
FAQ
Q: How can I connect this ISDB-T digital terrestrial TV tuner to the Internet?
A: This ISDB-T digital TV tuner is primarily designed for receiving terrestrial TV signals via antenna and does not have built-in Wi-Fi or Ethernet connectivity.
To enable Internet access (if supported by your set-top box or system), you can use an external USB Wi-Fi adapter:
-
Connect a USB Wi-Fi antenna/adaptor to the USB port of the set-top box or compatible device.
-
We recommend using a plug-and-play USB Wi-Fi adapter that does not require additional driver installation.
-
Once connected, configure the Wi-Fi network through the device’s system menu.
Note: Internet connectivity depends on whether the connected set-top box or system software supports network functions. The tuner itself is used for TV signal reception and does not provide Internet streaming features.
