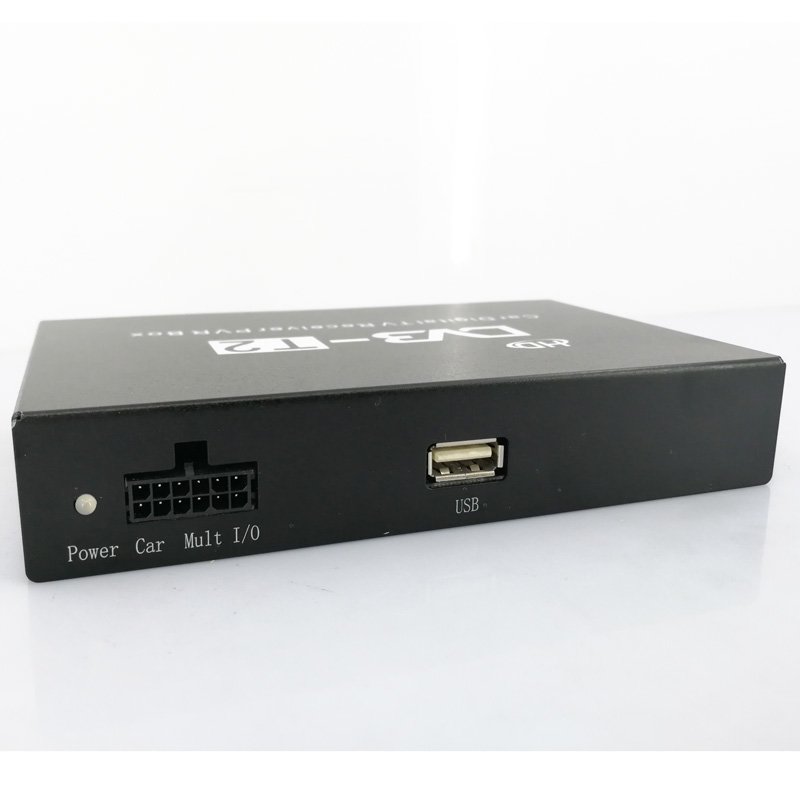

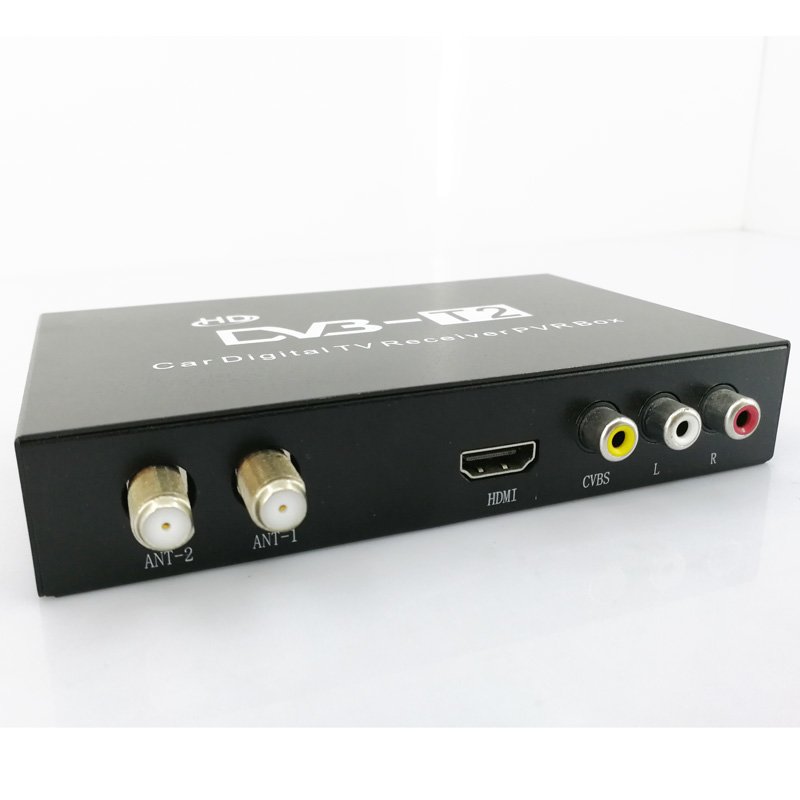

DVB-T266 Car DVB-T2 H265 Dual Tuner two antenna H264 Digital TV receiver for All DVB-T2 Country Germany New Standard Automobile tv box

Car DVB-T2 H265

DVB-T266 Car DVB-T2 Dual Tuner two antenna H265 H264 Digital TV receiver for All DVB-T2 Country Germany New Standard Automobile tv box

Selling Points

Car DVB-T2 H265 TV receiver box;

Japan tuner, designed for car

Support DVB-T H.264 / DVB-T2 H.265 both;

Two active antenna 25db;

German DVB-T2 standard (H.265)

For All DVB-T / DVB-T2 Country



Features

1. Now Support DVB-T / DVB-T2 + High Speed. (Now If your signal is DVB-T, future update to DVB-T2, also can use, once buy, save money.)

2. Support Multi PLP, say goodbye to missing channel

3. Support H.264/AVC for DVB-T, H.265/HEVC for DVB-T2., MPEG2~MPEG4 HD Video Decode;

4. Available to upgrade the firmware via USB slot;

5. USB Recorder, PVR, multimedia play, support HDD;

6. Auto searching and updating bit rate information;

7. Storage for 2000pcs channels;

8. Memory function after power off;

9. Support OSD TELETEXT;

10. Multi Language Support: English, German, Italy, Russian,Thai, Spanish etc.

11. EPG program guide and PIG(Picture in Graphics )Function;

12. 6MHz, 7MHz, 8MHz Band-wide;

13. HD output (One route);

14. 2x Video output, Stereo Audio-R, Audio-L output;

15. Support IR output and extended remote sensor receiver;

16. Google DVB-T266 to get perfect technology support and update software.

17. Support AUX AV input.

18: DVB-T266 Tuner support 5V power for active amplified antenna (VCAN0961)

1. 12~24V widely power supply, special designed for car or bus.

Specification

1. Input frequency: VHF 177.5MHz – 226.5MHz UHF 474MHz – 858MHz

2. Modulate: QPSK/16 – QAM/256-QAM

3. Decode standard: MPEG4,MP@ML,MP@HL,H.264/AVC

4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC

5. Two ways CVBS RCA + One HD output:

6. Power Supply: DC 12V~24V 5W

7. Connecting Terminal:

Two Active amplifier antenna input jack (5.0V supply), Car power input jack , R/L Audio CVBS Video output jack,

External remote control IR cord, USB upgrade socket, HD High-definition output jack.

1. Applicable Power Supply: Car storage battery (12V~ 24V)

2. Outer dimension: 142mm x 88mm x 26mm

3. Application Temperature: -5 ~40 degree

4. Storage Temperature: -20~60 degree

Technology Data

TV Standard	Fully SD/HD Tuner DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264
Video Resolution	Full HD tuner DVB-T2,support up to 1080P
Video System	Automatic PAL/NTSC conversion
Video Ratio	Aspect ratio 16:9 and 4:3
Channels Number	1000 channels memory
OSD Language	OSD language: English, Thailand, Russia, Spanish more please visit www.dvb-t2.cn
EPG	Small windows screen picture with EPG graphic menu,7-Day EPG function
Channel Search	Auto search & Manual search function
Software upgrade	Software upgrade via USB
Teletext	Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle
Save Channel	Automatic save for last channel
LCN	Support Logic Channel Number(LCN)
1.Main Chip Sets
Flash Memory	32MB Serial Flash
DDR2 Memory	512MB
2.Tuner
Input Frequency	VHF: 174~230MHz,UHF: 470~862MHz
RF input Level	-20~-83dBm
RF Bandwidth	6MHz-7MHZ and 8MHZ
Modulation	QPSK,16QAM,64QAM,256QAM
3.USB Decode
DVR supporting	Stereo/MONO/Left/Right
Media Supporting	USB2.0 Port, playback the media in USB flash disk or USB HDD
USB2.0 HOST	DVR with USB HDD, Time shifting with USB HDD
4.Multimedia
music	MP3
photo	JPEG
Video	AVI, MKV, MP4, DAT, MPG, 3GP
5.Video Decode
Decode Format	MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional)
Output Format	1080p,1080i,720p,576p,576i,480p,480i
Aspect Ratio	4:3/16:9/Letterbox/ selectable
Output Port	CVBS and HD Out
6.Audio Decode
Decode Format	MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC,HE-AAC 5.1
Audio output	RCAX2(L/R) + HD Out (Audio)
7.AV Output
Video Bandwidth	5.5MHz(-3dB)
Video Impedance	75Ω
Video Voltage Level	1.0 Vp-p
Audio Freq. Range	20~20KHz
Guard internal	1/4,19/128,1/8,19/256,1/16,1/32,1/128
Pilot pattern	PP1-PP7
Power Supply	DC(10V-26V)
Hardware interface	DC input 12V, 2 Antenna input, USB, HD out, AUX AV in, CVBS AV out, IR sensor, Power Indicator
Audio format	ISO/IEC14496-30,AAC,AAC+
FFT	1K,2K,4K,8K,16K,32K
Power	2 W
Video resolution	576i,576p,720p,1080i and 1080p
Audio Impedance	600Ω
Audio Voltage Level	2V rms(5.6Vp-p)

Accessory

1 * Car DVB-T2 receiver

2 * 25DB car amplifier digital DVB-T2 Antenna

1 * power / ir / av cable

1 * Remote Control Unit

1 * Extended IR Cable

1 * Audio Video output cable

1 * Users’ manual
