Germany DVB-T2 H265

Selling Points

Germany DVB-T2 H265 TV receiver box;
Japan tuner, designed for car
Both Support DVB-T H.264 / DVB-T2 H.265
Two active antenna 25db;
Germany DVB-T2 standard (H.265)
For Germany Italy Czech Slovakia

Car DVB-T2 TV tuner diversity digital receiver set top box Antenna, support H.265 HEVC decoder

DVB-T265 Car DVB-T2 tv receiver USB HDTV 2 Antenna Japan Tuners High Speed for Germany Italy Czech Slovakia

Terrestrial HD receiver for the DVB-T (H.264) and DVB-T2 (H.265 / HEVC) TV reception

Features

1. Now Support DVB-T / DVB-T2 High Speed.

(Now DVB-T, future updated DVB-T2, once buy, save money.)

1. Support Multi PLP, say goodbye to missing channel
2. Support H.264/AVC for DVB-T, H.265/HEVC for DVB-T2., MPEG2~MPEG4 HD Video Decode;
3. Available to upgrade the firmware via USB slot;
4. USB Recorder, PVR, multimedia play, support HDD;
5. Auto searching and updating bit rate information;
6. Storage for 2000pcs channels;
7. Memory function after power off;
8. Support OSD TELETEXT;
9. Multi Language Support: English, Germany, Italy, Russian,Thai, Spanish etc.
10. EPG program guide and PIG(Picture in Graphics )Function;
11. 6MHz, 7MHz, 8MHz Band-wide;
12. HD output (One route);
13. 2x Video output, Stereo Audio-R, Audio-L output;
14. Support IR output and extended remote sensor receiver;
15. Google DVB-T265 to get perfect technology support and update software.
16. Support AUX AV input.
17. Tuner support power for active amplified antenna (VCAN0961 http://vcan.cc/product/VCAN0961-Car-DVB-T-DVB-T2-Digital-TV-antenna-aerial-built-in-signal-enlarger-booster.html)
18. 10~32V widely power supply, special designed for car or bus.
19. Smart module design, even built-in your dvd / gps play.
20. Touch screen operation is optional. (Need debug and ODM)
21. Power DC jack, one cigarette lighter to connect easily

HEVC(H.265)Decoder

different encoding and display frame rates

FAQ

Q. Very important is that the module really provides full H.265 Multi-PLP decoding capabilities.Only this is going to work in Germany since the old standard with H.264 will be discontinued in Germany from March 2017.

A: DVB-T265 support H265, also support H264, that means you can get TV now and future.

Q. I need same DVBT2 with CI slot for pay tv please.

A. DVB-T265 has no CI slot now. We will add CI slot if market requirement increase at future.

Q. It working in Slovakia? Now it is DVB-T and DVB-T2 together.

A.DVB-T265 support DVB-T (H.264) and DVB-T2 (H.265), Some customer told us that TV program has picture without sound, maybe it is reason that your tv box no support audio (H.265) decoder.

DVB-T2 HD receiver for High-definition pictures and two DVB-T2 high-performance antenna with controllable amplifier.

German standard HEVC/H.265-Codec

Specification

1. Input frequency: VHF 177.5MHz – 226.5MHz UHF 474MHz – 858MHz
2. Modulate: QPSK/16 – QAM/256-QAM
3. Decode standard: MPEG4,[email protected],[email protected],H.264/AVC
4. Audio decode standard: MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC

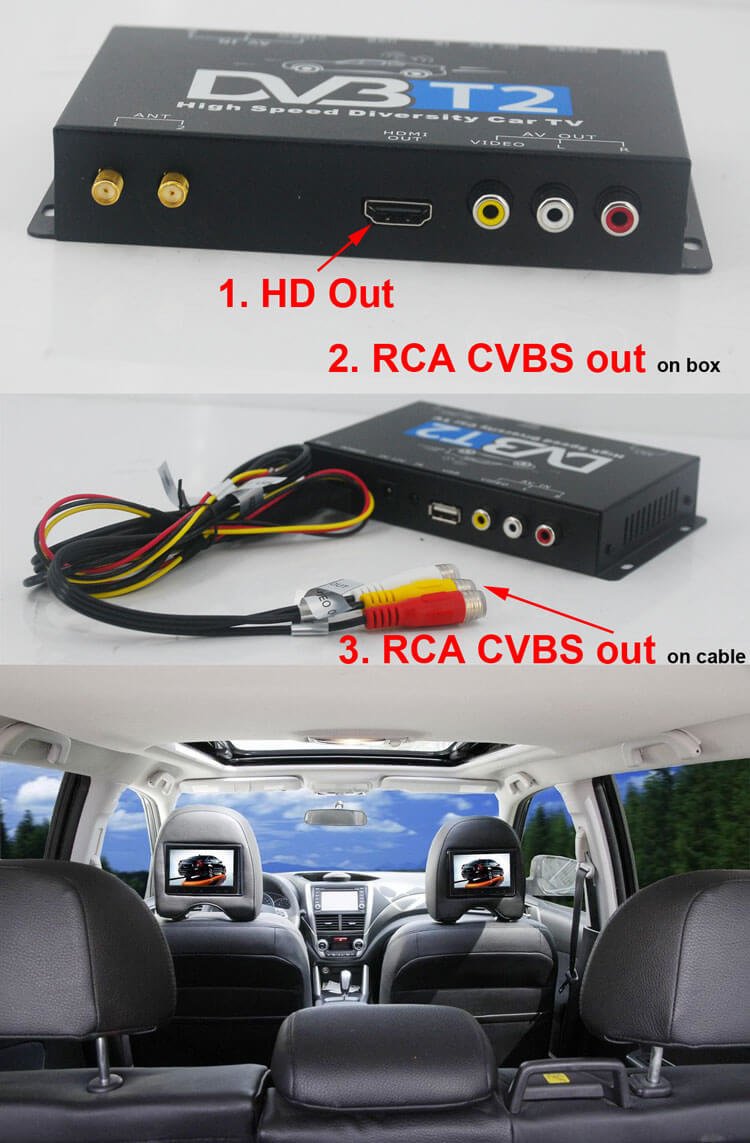

5. Two ways CVBS RCA One HD output:
6. Power Supply: DC 12V~26V 5W
7. Connecting Terminal:

Active amplifier antenna input jack (3.3V supply), Car power input jack , R/L Audio CVBS Video output jack,

External remote control IR cord, USB upgrade socket, HD High-definition output jack.

1. Applicable Power Supply: Car storage battery (12V~ 24V)
2. Outer dimension: 125mm x 85mm x 26mm
3. Application Temperature: -5 ~40 degree
4. Storage Temperature: -20~60 degree

Technology Data

TV Standard	Fully SD/HD Tuner DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264
Video Resolution	Full HD tuner DVB-T2,support up to 1080P
Video System	Automatic PAL/NTSC conversion
Video Ratio	Aspect ratio 16:9 and 4:3
Channels Number	1000 channels memory
OSD Language	OSD language: English, Thailand, Russia, Spanish more please visit www.dvb-t2.cn
EPG	Small windows screen picture with EPG graphic menu,7-Day EPG function
Channel Search	Auto search & Manual search function
Software upgrade	Software upgrade via USB
Teletext	Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle
Save Channel	Automatic save for last channel
LCN	Support Logic Channel Number(LCN)
1.Main Chip Sets
Flash Memory	32MB Serial Flash
DDR2 Memory	512MB
2.Tuner
Input Frequency	VHF: 174~230MHz,UHF: 470~862MHz
RF input Level	-20~-83dBm
RF Bandwidth	6MHz-7MHZ and 8MHZ
Modulation	QPSK,16QAM,64QAM,256QAM
3.USB Decode
DVR supporting	Stereo/MONO/Left/Right
Media Supporting	USB2.0 Port, playback the media in USB flash disk or USB HDD
USB2.0 HOST	DVR with USB HDD, Time shifting with USB HDD
4.Multimedia
music	MP3,WMA
photo	JPEG,BMP,PNG
Video
5.Video Decode
Decode Format	MPEG-2 [email protected], MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, [email protected], VC-1,RM&RMVB(Optional)
Output Format	1080p,1080i,720p,576p,576i,480p,480i
Aspect Ratio	4:3/16:9/Letterbox/ selectable
Output Port	CVBS and HD Out
6.Audio Decode
Decode Format	MPEG-1,MPEG-2 (Layer I/II),MP3, AC-3(Optional),E-AC-3(Optional),AAC-LC,HE-AAC 5.1
Audio output	RCAX2(L/R) HD Out (Audio)
7.AV Output
Video Bandwidth	5.5MHz(-3dB)
Video Impedance	75Ω
Video Voltage Level	1.0 Vp-p
Audio Freq. Range	20~20KHz
Guard internal	1/4,19/128,1/8,19/256,1/16,1/32,1/128
Pilot pattern	PP1-PP7
Power Supply	DC(10V-26V)
Hardware interface	DC input 12V, 2 Antenna input, USB, HD out, AUX AV in, CVBS AV out, IR sensor, Power Indicator
Audio format	ISO/IEC14496-30,AAC,AAC
FFT	1K,2K,4K,8K,16K,32K
Power	2 W
Video resolution	576i,576p,720p,1080i and 1080p
Audio Impedance	600Ω
Audio Voltage Level	2V rms(5.6V

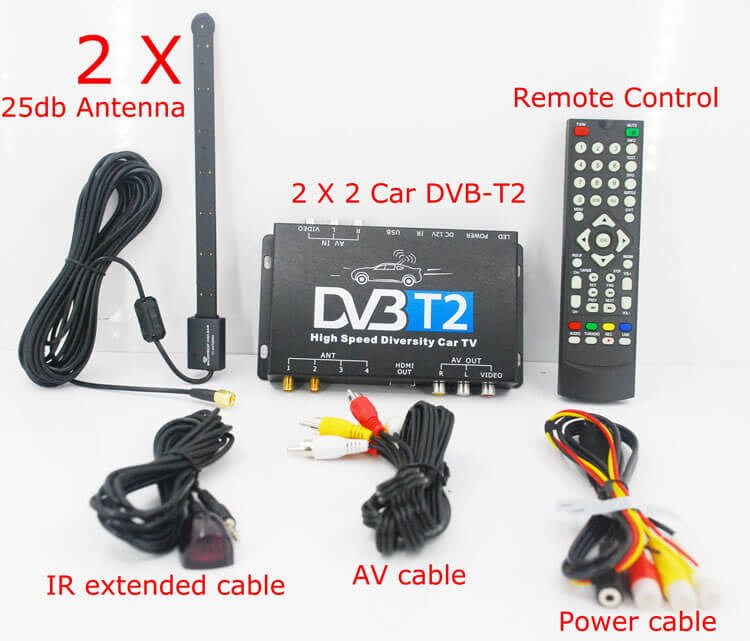

Accessory

1 X Car DVB-T2 receiver

2 X 25DB car amplifier digital DVB-T2 Antenna

1 X power / ir / av cable

1 X Remote Control Unit

1 X Extended IR Cable

1 X Audio Video output cable

1 X Users’ manual
