Botswana ISDB-T 8M digital TV receiver Set-Top-Box WIFI Youtube Vcan1914

Hardware Specifications

• Receive type: ISDB-T
• CPU: MSA7B00
• Sintonizador: R850
• Clarão: 32M bit
• Memória: 512M bit DDR2 Frequency 1066MHZ

Painel frontal

• Indicadores: Standby-red. Signal lock-green
• LED display:4 digitals-7segments LED
• Keys:5Keys:PODER,VOL-/+, CH-/+
• USB: 1xUSB
• Controle infravermelho: 38KHZ Frequency

Painel Traseiro

• RF IN: DVB signal Input
• RF LOOP: DVB signal Output
• HD OUT: HD video & audio Output. 1.3 versions
• Saída AV(RCA) : HD video & audio Output
• Poder: Input Voltage~110v-240v 50/60Hz

Video Decoding

• MPEG-1 video (ISO/IEC 11172-2)
• MPEG-2 video (ISO/IEC 13818-2), MP@HL
• MPEG-4 video (ISO/IEC 14496-2), ASP video decoding up to HD level
• ISO/IEC 14496-10(main and high profile up to level 4.2)video decoding
• Supports FLV version1 video format decoding
• Supports resolutions up to HDTV(1080p@30fps)
• Resolução: 1080p, 1080eu, 720p, 720eu, 576p, 576eu

Demodulação & Sintonizador

• Frequência de entrada: 177.143-803.143MHZ
• Band width: 6MHz
• Signal Level: -83 ~ -5dBm
• Modo de desmodulação : OFEM/16QAM/64QAM
• FFT mode supported: 2k,8k,32k

Other Specifications

• Work Temperature: 0~+40℃
• Consumo de energia: Max 10W
• Tamanho(L*W*H): 168*81*36Milímetros (machine)

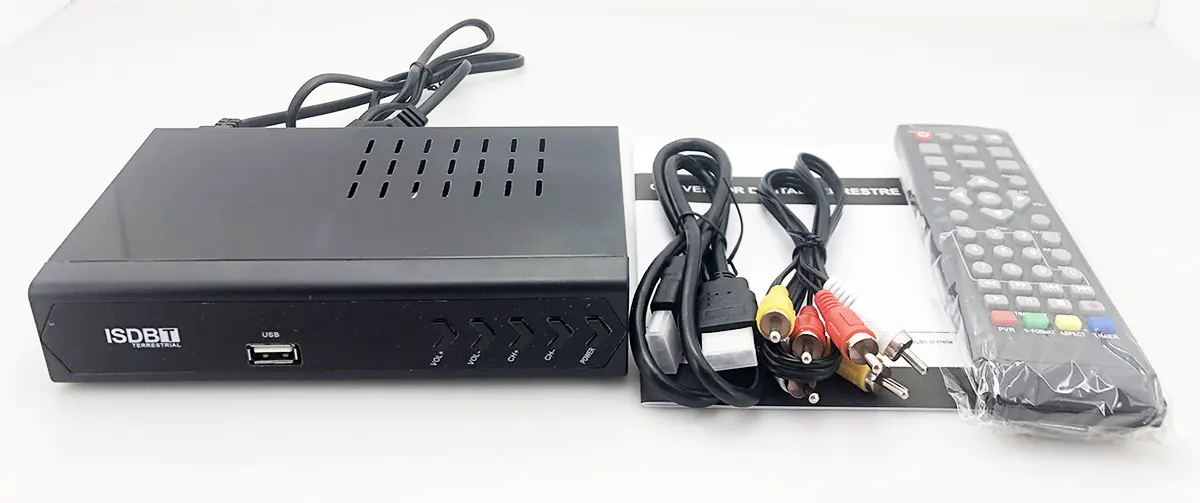

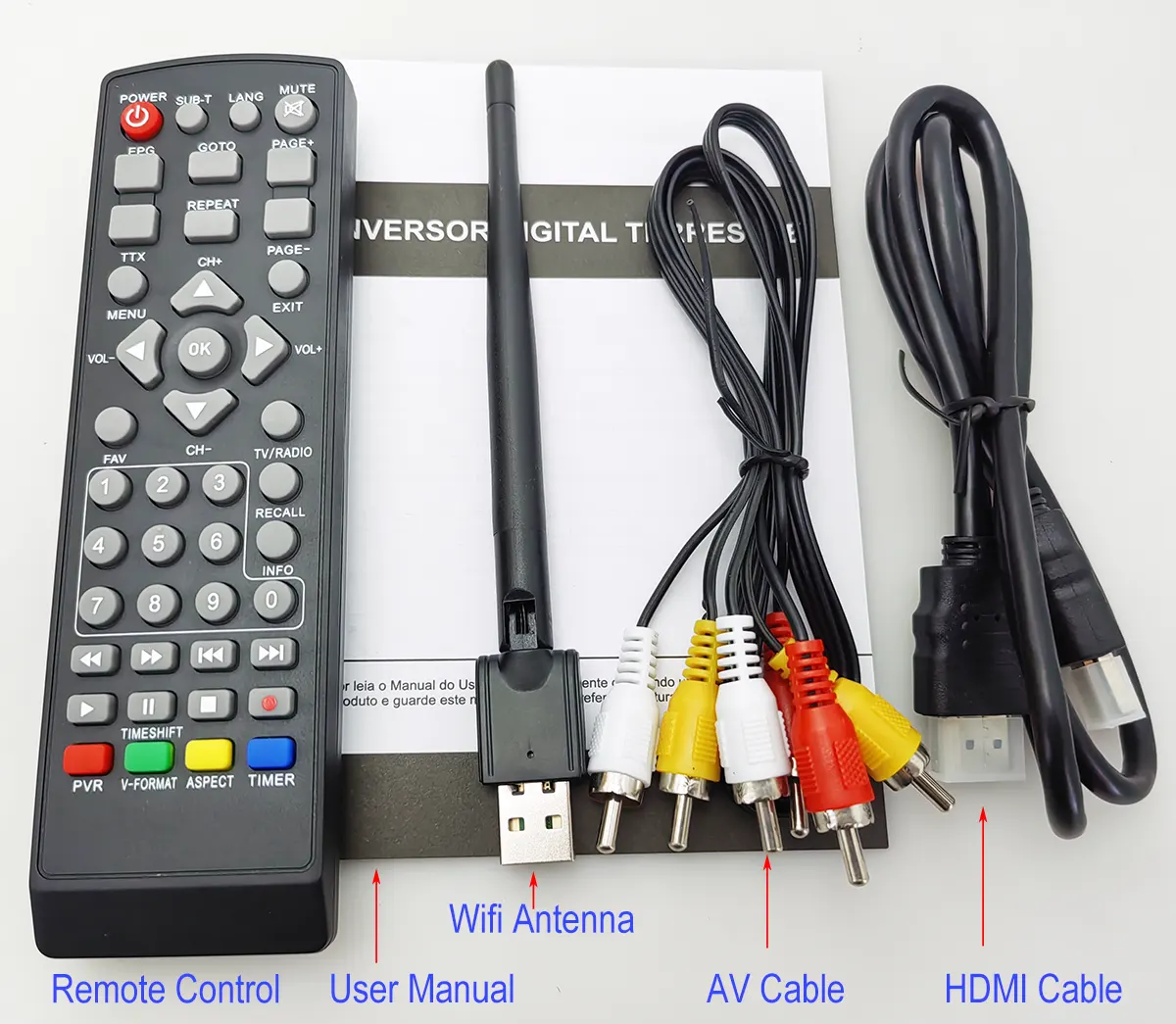

• Acessórios: opcional: RCU, User’s manual, 2 Batteries 7# (AAA), Cabo AV, Warranty card



Video on Youtube

Perguntas frequentes

1º trimestre: Does it support the Dolby Audio Decoder?

A1: For the ISDB-T standard, it no need Dolby Audio decoder function to support it. Dolby Audio decoder is always used in DVB-T / DVB-T2 digital standard, If your local tv program need the Dolby Audio decoder to support it, please tell us, we will try to send you the upgrade firmware to support it.

2º trimestre: Do you have a Smart Decoder that can decode ISDB-T signals and also access YouTube and Netflix?

A2: Only support ISDB-T + YouTube, does not support Netflix.
