VCAN1047 Домашний ISDB-T цифровой ТВ-приемник TV Plus черный ящик MPEG4 HDMI USB PVR Пульт дистанционного управления

Обзор

The VCAN1047 Home ISDB-T Digital TV Receiver is a high-performance and reliable set-top box designed for ISDB-T broadcast regions такой как Бразилия, Филиппины, Япония, Чили, Перу, Аргентина, and Paraguay. It delivers smooth, crystal-clear Full HD 1080p video and transforms your existing TV — whether analog or digital — into a modern entertainment hub.

Enjoy free-to-air digital channels, USB-запись, and multimedia playback all in one compact and energy-efficient unit.

Функции

1. ISDB-T Compliant: Fully compatible with ISDB-T standard used in countries like Brazil, Филиппины, Япония, Чили, Аргентина, и многое другое.

2. Full HD Output: Enjoy crystal-clear video up to 1080p through HDMI or RCA CVBS output.

3. USB 2.0 PVR Recording: Record your favorite TV shows directly to a USB drive and play them back anytime.

4. Media Player Support: Supports movie, music, and photo playback from external USB storage.

5. User-Friendly Interface: Multi-lingual OSD, easy navigation menu, and customizable favorite channel lists.

6. Низкое энергопотребление: Less than 0.5W in standby mode for energy efficiency.

7. Parental Control: Manage viewing content for family use.

8. Teletext & электронная программа передач: Stay informed with real-time broadcast information and easy program scheduling.

9. Compact and Stylish Design: Small, modern black box design that fits neatly with any TV setup.

Спецификация

• Memory: 32x16Mbit DDR2 (1066МГц)

• Вспышка: 32M bytes

• Demodulator Type: ISDB SOC Chip Set

• Тюнер: Rafael R836

• Выход: HDMI V1.3/V1.4, RCA CVBS AL/AR, ЮПбПр, Coaxial

• Вход: Радиочастотный вход & Loop Through (IEC-type)

• USB Port: 1х USB 2.0 for PVR and media playback

• Источник питания: AC 100–240V, 50/60Hz

---

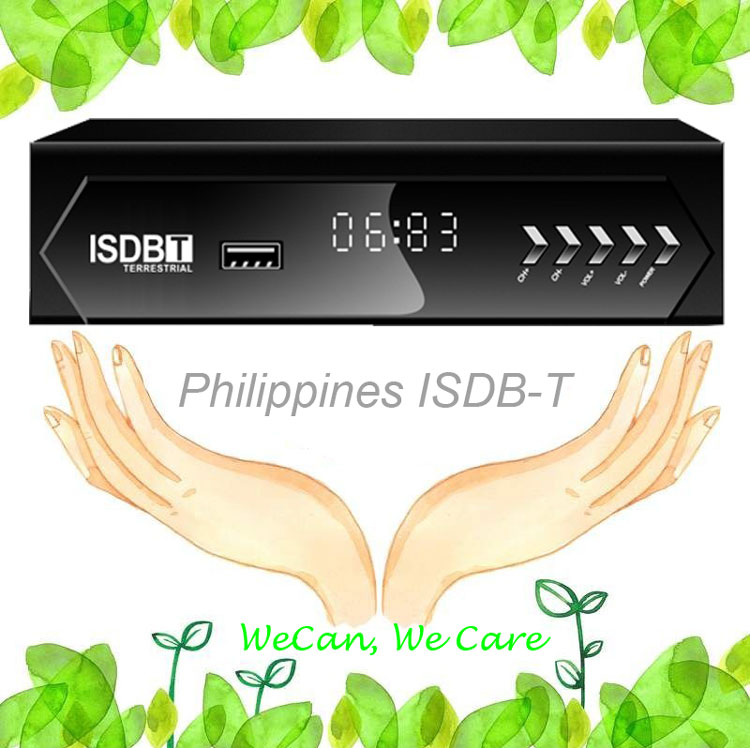

Front Panel

• 4-digit LED display (green = lock, red = standby)

• Власть, СН+, CH– buttons

• 1х USB 2.0 Host Port

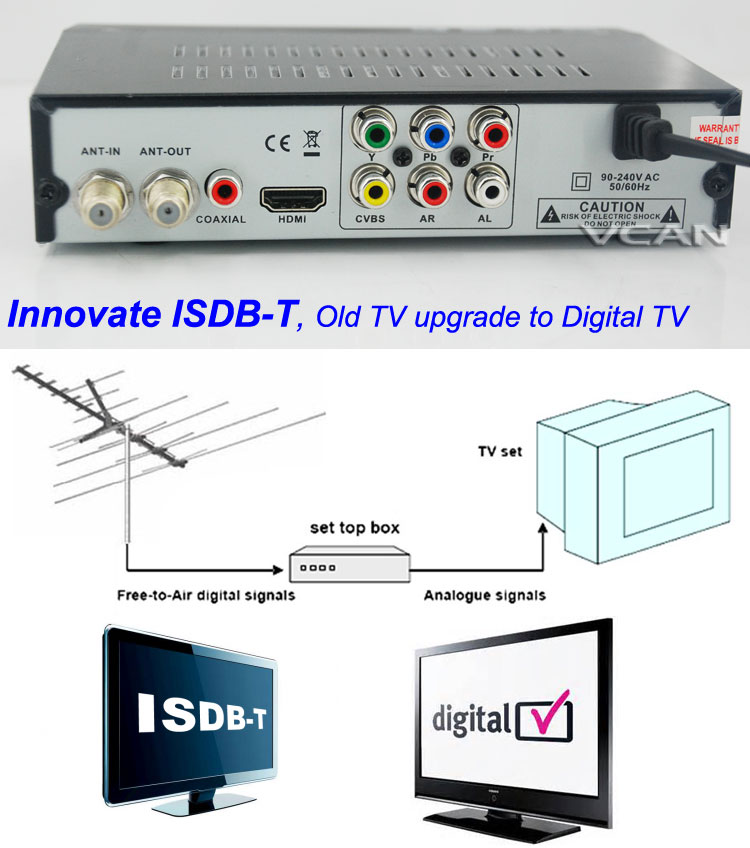

Rear Panel

• Радиочастотный вход & Loop Through: EC-type connectors (IEC169-2 Female for input, IEC169-24 Male for loop output)

• Видео & Audio Outputs: HDMI (V1.3/V1.4), RCA CVBS (АЛ/АР), ЮПбПр, and Coaxial

• Источник питания: AC 100–240V, 50/60Hz







Review

---

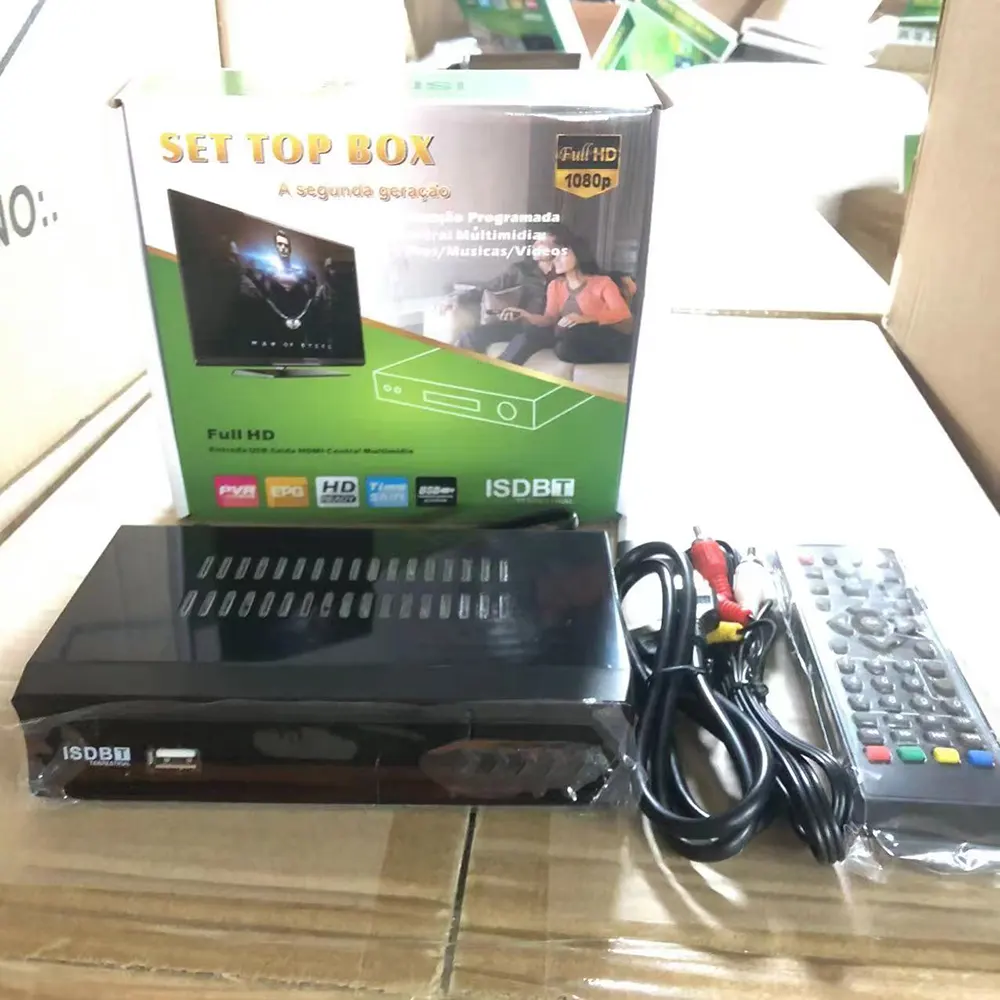

Package Includes

• 1x VCAN1047 ISDB-T Receiver

• 1х Пульт дистанционного управления

• 1x Power Cable

• 1x User Manual

---

Why Choose VCAN1047

• Stable reception even in weak signal areas.

• Easy plug-and-play setup with automatic channel scan.

• Works perfectly with both old analog TVs (via RCA) and new flat screens (via HDMI).

• Regular software updates available via USB.

• Excellent after-sales support and 1-year limited warranty.

---

Часто задаваемые вопросы

вопрос. Do you sell and deliver this device to Brazil?
А: Да, we can ship this device to Brazil. Please note that customs clearance in Brazil can be challenging and may require additional documentation or procedures. The buyer is responsible for customs clearance, import duties, taxes, and any related fees charged by Brazilian customs authorities. We will provide the commercial invoice and shipping documents required for importation. If you have an experienced customs broker or freight forwarder in Brazil, we recommend working with them to facilitate the clearance process.

1. Does this ISDB-T player work in my country?
Да. This receiver is fully compatible with the ISDB-T broadcast standard, used in countries such as Бразилия, Филиппины, Япония, Чили, Перу, Аргентина, and other ISDB-T regions.

2. Can I use it with both old and new TVs?
Absolutely. It supports both HDMI и RCA CVBS выход, so you can connect it to modern digital TVs or older analog models.

3. Does it support HD channels?
Да. The ISDB-T player decodes MPEG2/MPEG4/H.264 signals and supports Full HD 720p/1080i/1080p video output for a crystal-clear viewing experience.

4. Can I record TV programs?
Да. The USB PVR recording function lets you record your favorite shows onto a USB flash drive or external hard disk and play them back anytime.

5. Does it support media playback from USB?
Да. You can play movies, music, and photos directly from your USB storage device (formats like MP4, АВИ, МП3, JPEG, и т. д.. are supported).

6. Can it pause or rewind live TV?
Да. Он поддерживает TimeShift, allowing you to pause and resume live broadcasts for flexible viewing.

7. Is the menu available in multiple languages?
Да. It features a multi-lingual OSD (On-Screen Display) supporting English, испанский, португальский, and other languages.

8. How do I update the software or firmware?
You can easily update the device via USB. Just download the latest firmware from our website and follow the on-screen instructions.

9. Is it easy to install and use?
Да. It’s plug and play — simply connect the antenna, власть, and TV cable, then run the auto channel scan. The setup takes just a few minutes.

10. What outputs and inputs does it have?
The receiver includes RF вход & loop through, HDMI, RCA (ЦВБС, АЛ/АР), ЮПбПр, и Coaxial outputs, plus AC 100–240V power input.

11. How good is the signal reception?
Встроенный high-sensitivity Rafael R836 tuner ensures stable performance and clear reception even in weak signal areas.

12. Does it support subtitles and multiple audio tracks?
Да. Он поддерживает closed captions, субтитры, и multi-audio languages for broadcast compatibility.

13. What’s included in the package?

• 1x ISDB-T Receiver

• 1х Пульт дистанционного управления

• 1x Power Cable

• 1x User Manual

14. What about warranty and support?
All units include a 1-year limited warranty и technical support via email or our service portal.

15. Is it energy-efficient?
Да. Power consumption is less than 0.5W in standby mode, making it an eco-friendly choice for daily use.

Compatible Regions & Приложения

This ISDB-T receiver is ideal for:

• Home entertainment in Бразилия, Филиппины, Япония, and Latin America

• Hotel or apartment TV systems

• Upgrading analog televisions to digital

• Mobile home and camper setups

• Backup receiver for secondary rooms

How to Connect & Использовать

1. Connect your TV using HDMI or RCA cables.

2. Plug in your antenna to the RF input port.

3. Power on the device and follow the on-screen setup wizard.

4. Использовать Auto Channel Scan to find available local ISDB-T channels.

5. Insert a USB drive to record or play your favorite media.

Setup is quick and intuitive — no technical knowledge required.

Customer Reviews

“The HD picture quality is amazing, and setup took less than five minutes. Works perfectly with both my old CRT and new flat-screen TV.”

“Strong reception even in rural areas. The USB recording function is great for saving live shows — excellent value for money!”

Warranty & Поддерживать

All VCAN products come with a 1-year limited warranty и technical support via email or our website.
Firmware updates and troubleshooting guides are also available for download.

Что такое ISDB-T?

ИСДБ-Т (Цифровое вещание с интеграцией услуг – наземное) is the digital television standard used across Japan and many Latin American countries. It allows viewers to watch high-definition programs, access multi-audio channels, субтитры, and electronic program guides through terrestrial broadcasts.
The VCAN1047 is fully compliant with the ISDB-T standard, ensuring seamless compatibility and stable reception.
