ISDB-T 1 Segmentli bir Anten veya tam segmentli İki Antenli Araba TV tuner kutusu
ISDB-T 1-Seg car digital TV box for Japan, Filipinler, Brezilya, Peru, Şili, vesaire
Özellik
– Video: one-way video output
– Ses: one-way Audio-R and Audio-L output
– RF Input: one-way antenna accept
– Touch screen or IR remote control support
– Auto search and Manual search supported
– Güç kapatıldıktan sonra hafıza fonksiyonu
– NTSC and PAL switching supported
– EPG program guide and Channel list
– High-speed mobile signal reception (120KM/H)
– Multi-language OSD: İngilizce, İspanyol, Portekizce, Japonya
Şartname
1. TV System Standard: ISDB-T
2. RF input: SMA-type terminal
3. Input Impedance@Antenna: 50ohm
4. Frekans aralığı: 470MHz ~ 806MHz
5. Signal level: 97±3dBm
6. Bant genişliği: 6MHz
7.Demodulation: DQPSK / QPSK / 16QAM / 64QAM
8. Guard interval Modes:1/32,1/16,1/8,1/4
9. FEC Modes Rate: 1/2,2/3,3/4,5/6,7/8
10. Video Sistemi: PAL/NTSC
11. Video çıkışı: CVBS
12. Ses çıkışı: Stereo
13. IR remote control
14. Input Voltage Range: 9V~35V
15. Güç tüketimi: ≤3.8W
16. Acceptable movement speed: 0kilometre / h ~ 150km / H
17. Operation temperature: -20-70°C, Working limit: -25-75°C
2. RF input: SMA-type terminal
3. Input Impedance@Antenna: 50ohm
4. Frekans aralığı: 470MHz ~ 806MHz
5. Signal level: 97±3dBm
6. Bant genişliği: 6MHz
7.Demodulation: DQPSK / QPSK / 16QAM / 64QAM
8. Guard interval Modes:1/32,1/16,1/8,1/4
9. FEC Modes Rate: 1/2,2/3,3/4,5/6,7/8
10. Video Sistemi: PAL/NTSC
11. Video çıkışı: CVBS
12. Ses çıkışı: Stereo
13. IR remote control
14. Input Voltage Range: 9V~35V
15. Güç tüketimi: ≤3.8W
16. Acceptable movement speed: 0kilometre / h ~ 150km / H
17. Operation temperature: -20-70°C, Working limit: -25-75°C
Ambalaj

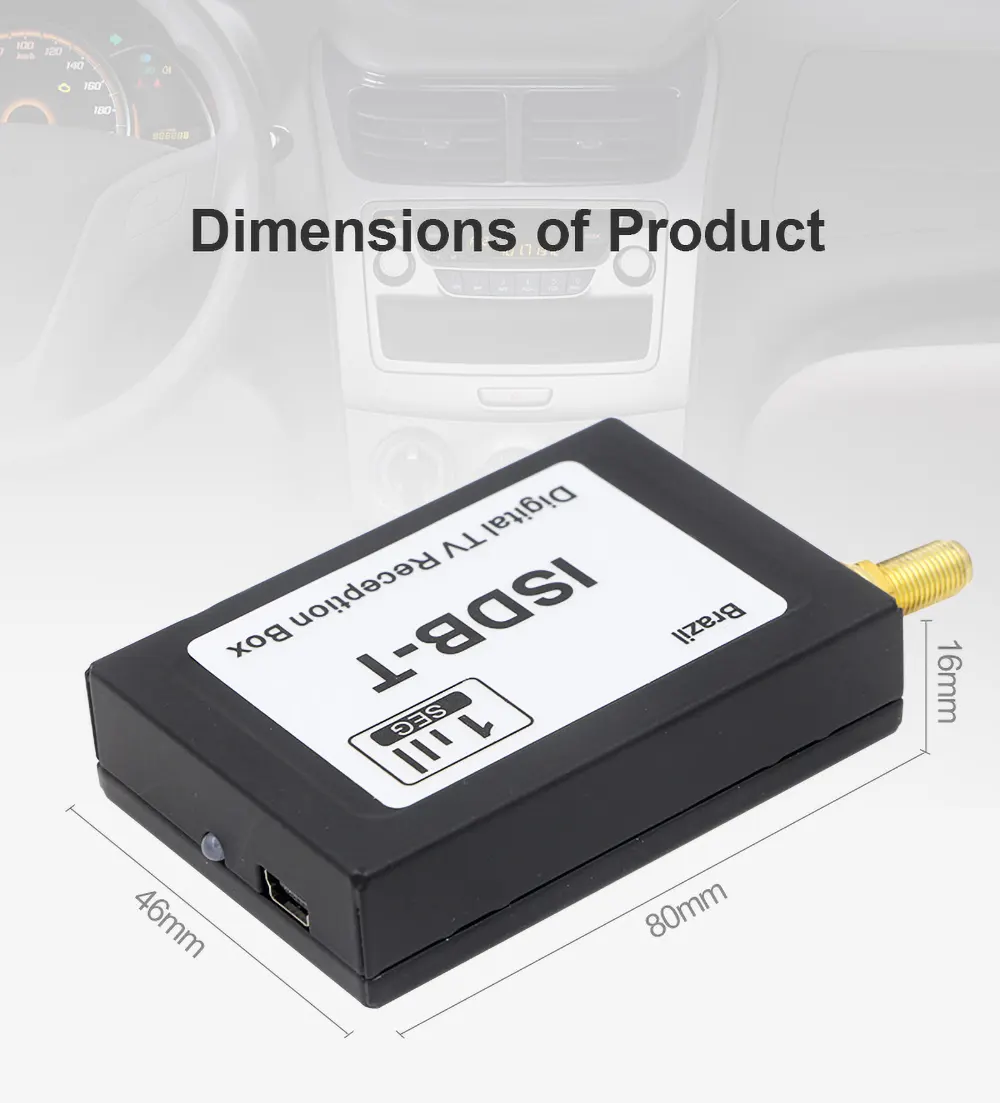

1. Unit size: 80mm(L) x 46mm(K) x 16mm (H) Unit G.W.: 62G
2. giftbox size: 180mm(L )X 110mm(K) X 50mm(H) Giftbox G.W.: 316G
3. Karton boyutu: 385(L) X 265(K) X 245(H)mm
2. giftbox size: 180mm(L )X 110mm(K) X 50mm(H) Giftbox G.W.: 316G
3. Karton boyutu: 385(L) X 265(K) X 245(H)mm
