VTX for drone video data link long-range transmitter receiver 30-50km 2X1.6WPA
VTX for drone video data link long-range transmitter-receiver 30-50km 2X1.6WPA
特征
- Center operating frequency 650Mhz
- Can be set up to 30-50km version
- Bandwidth 10mhz
- 640Mhz~670Mhz, if there is interference within the 30mhz bandwidth, it can be automatically avoided
- FPGA
- It can be networked with up and down different frequencies: aircraft end and ground end. It can independently select frequencies with low interference.
- If the bandwidth requirement is small, you can also use 5mhz bandwidth, which will provide stronger anti-interference.
- 2×1.585 watts PA power amplifier inside
- AES256 encryption and decryption.
- 24V电源

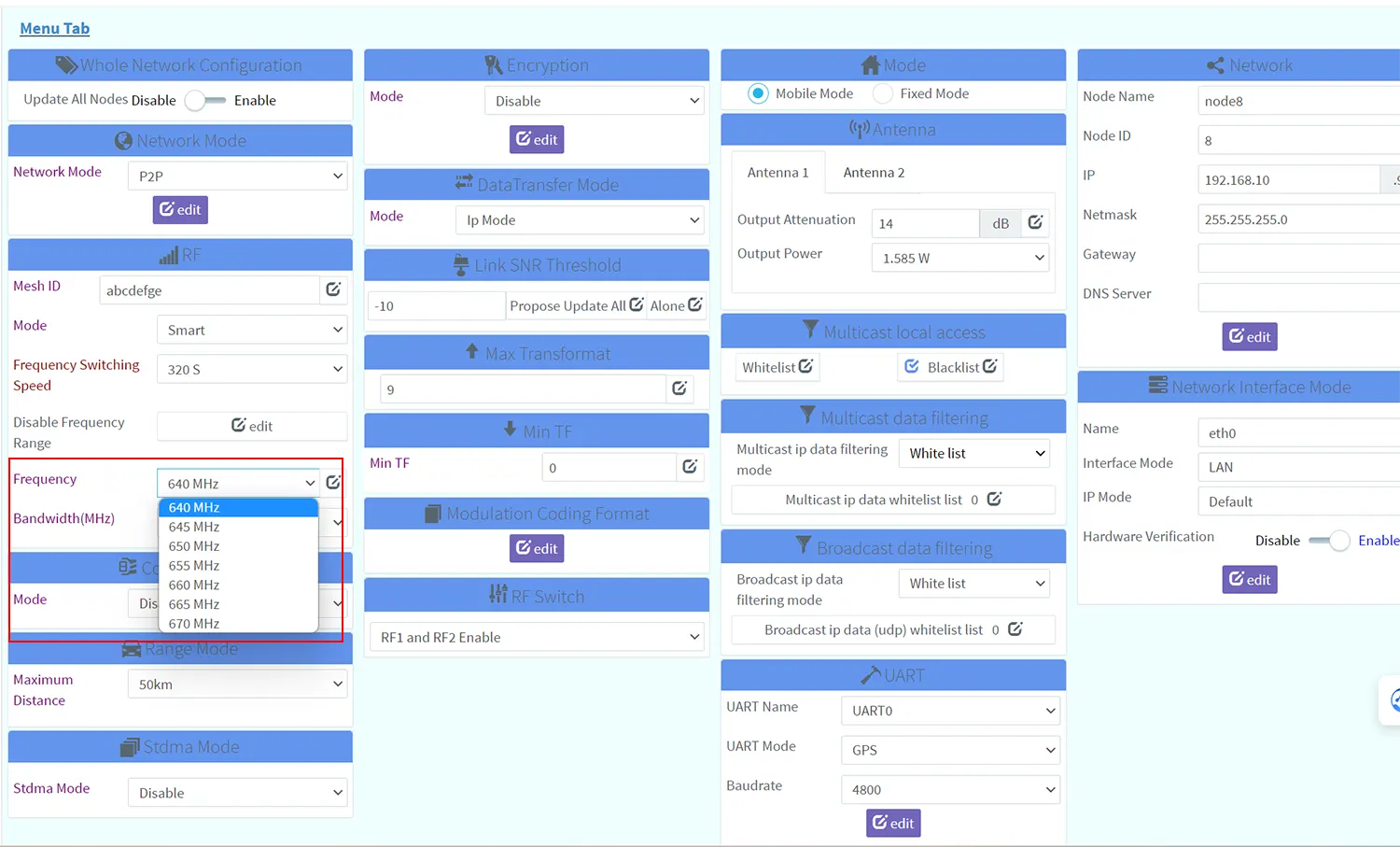

Webpage Parameter Setting

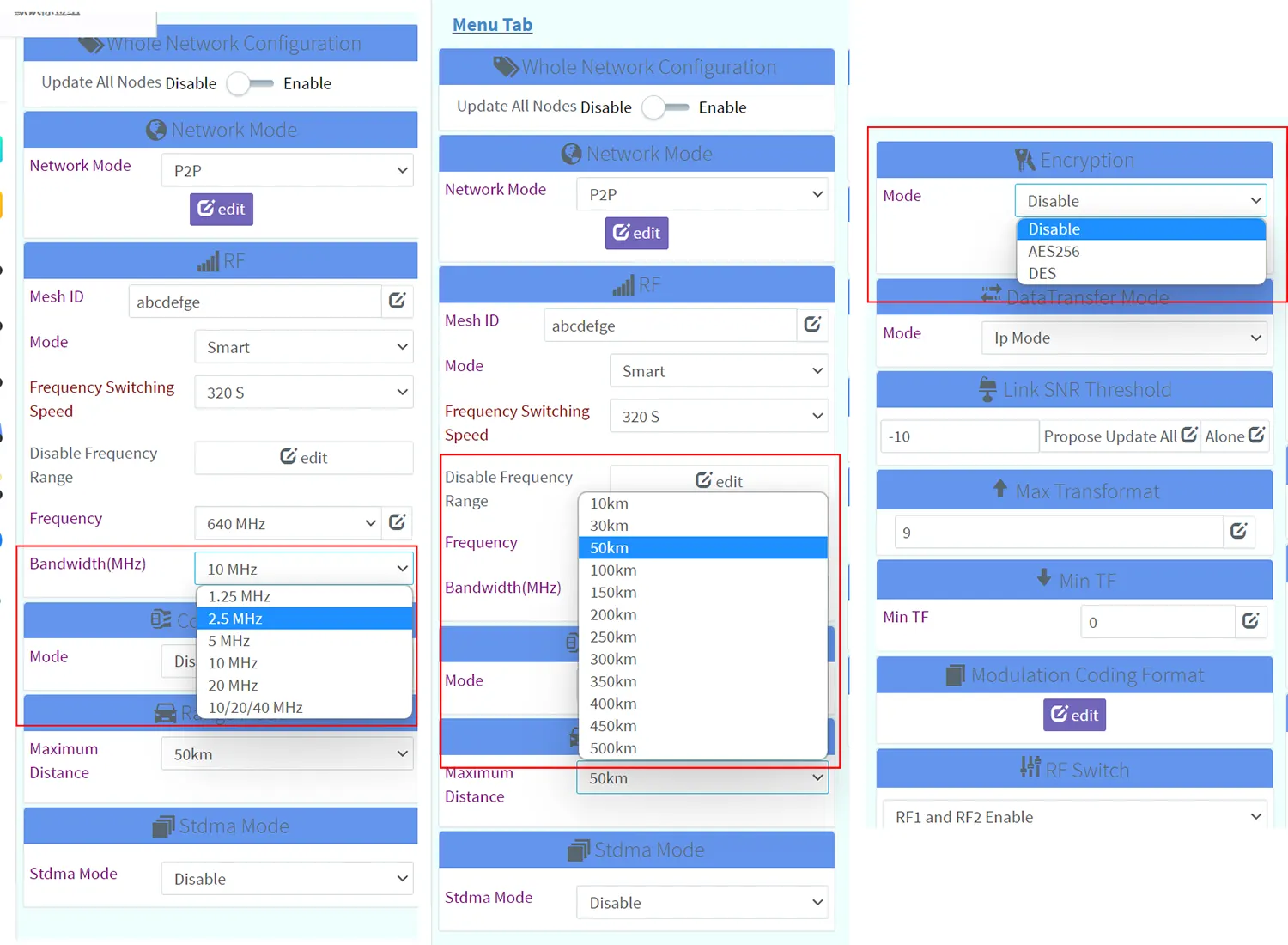

带宽, 传输范围, 加密
常问问题
Does your drone video data link support P2MP?
Our drone video data link supports P2P (point-to-point), P2MP (point to multi-points), Relay (transmitter-repeater-receiver), and MESH (multi-points to multi-points) networking.
Does your 30-50km UAV video data link have an S-Bus protocol?

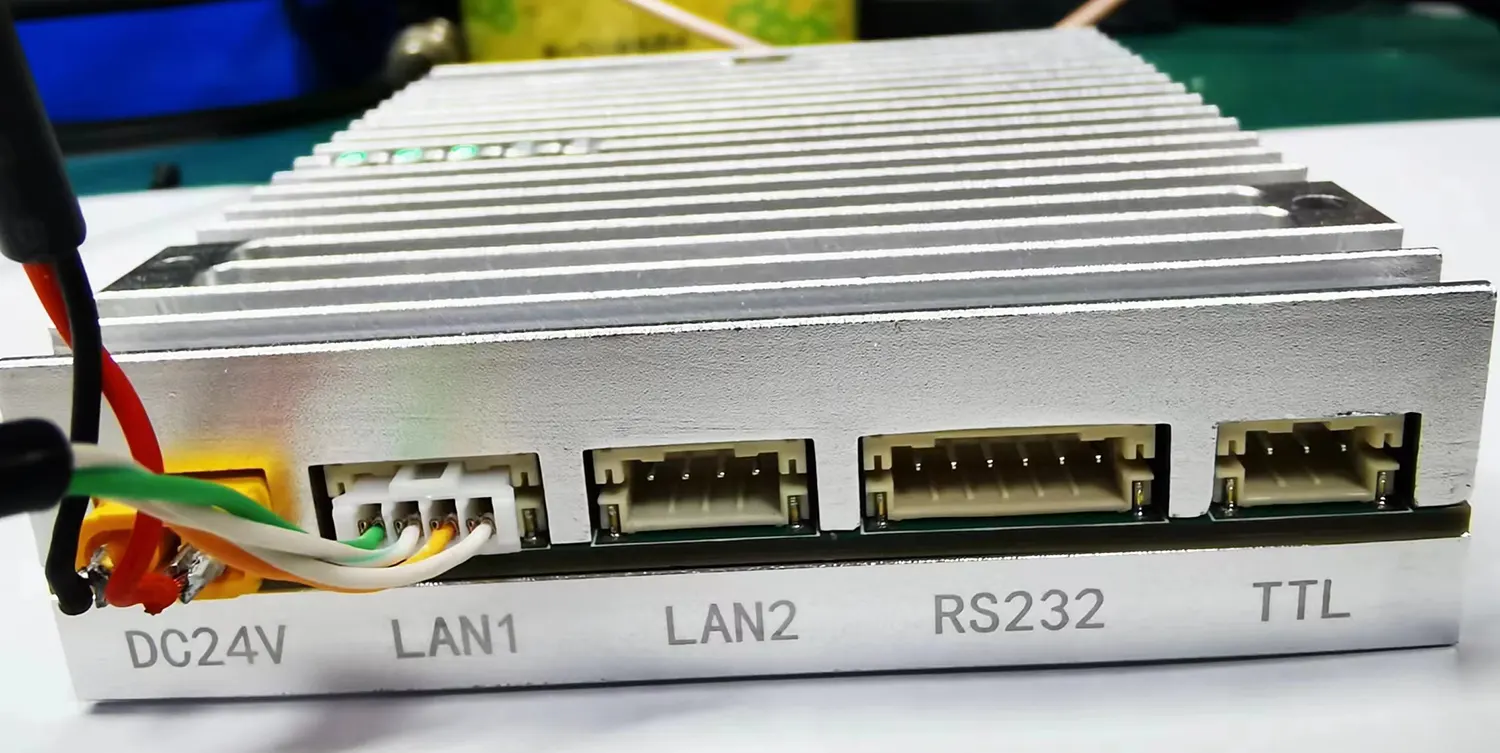

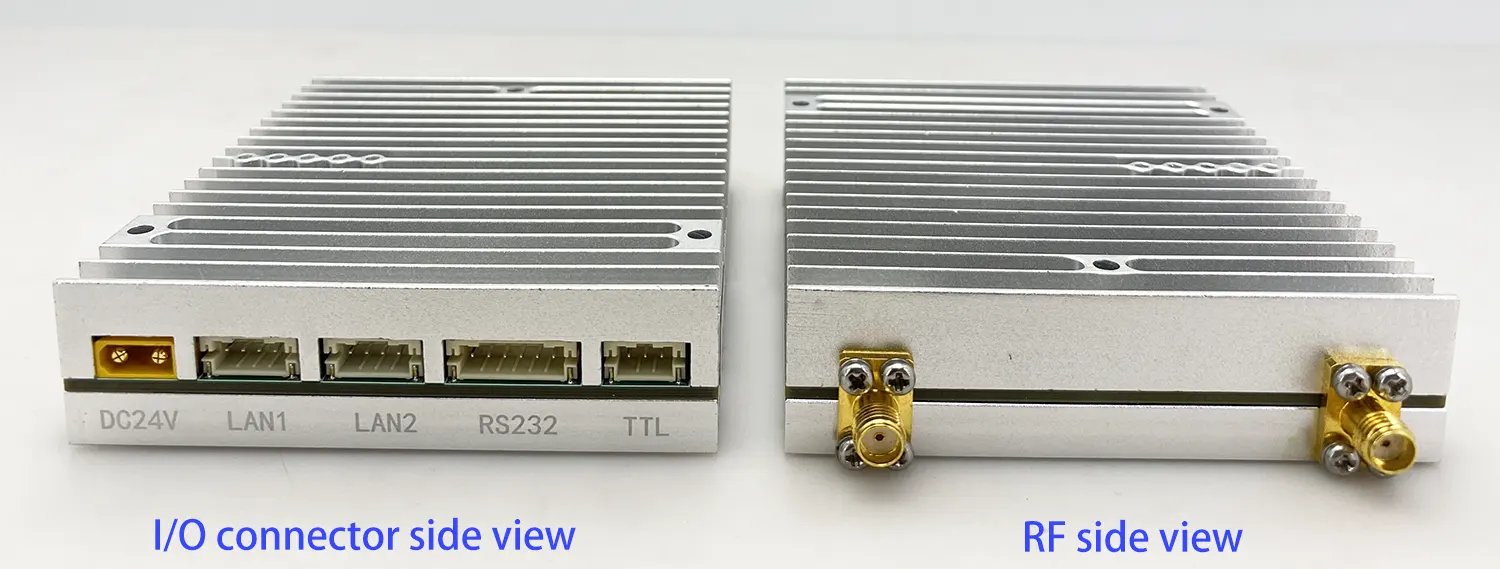

Now it has 2x RS232, 1x TTL data port, 2x LAN port (ethernet RJ45), and 24V power input.

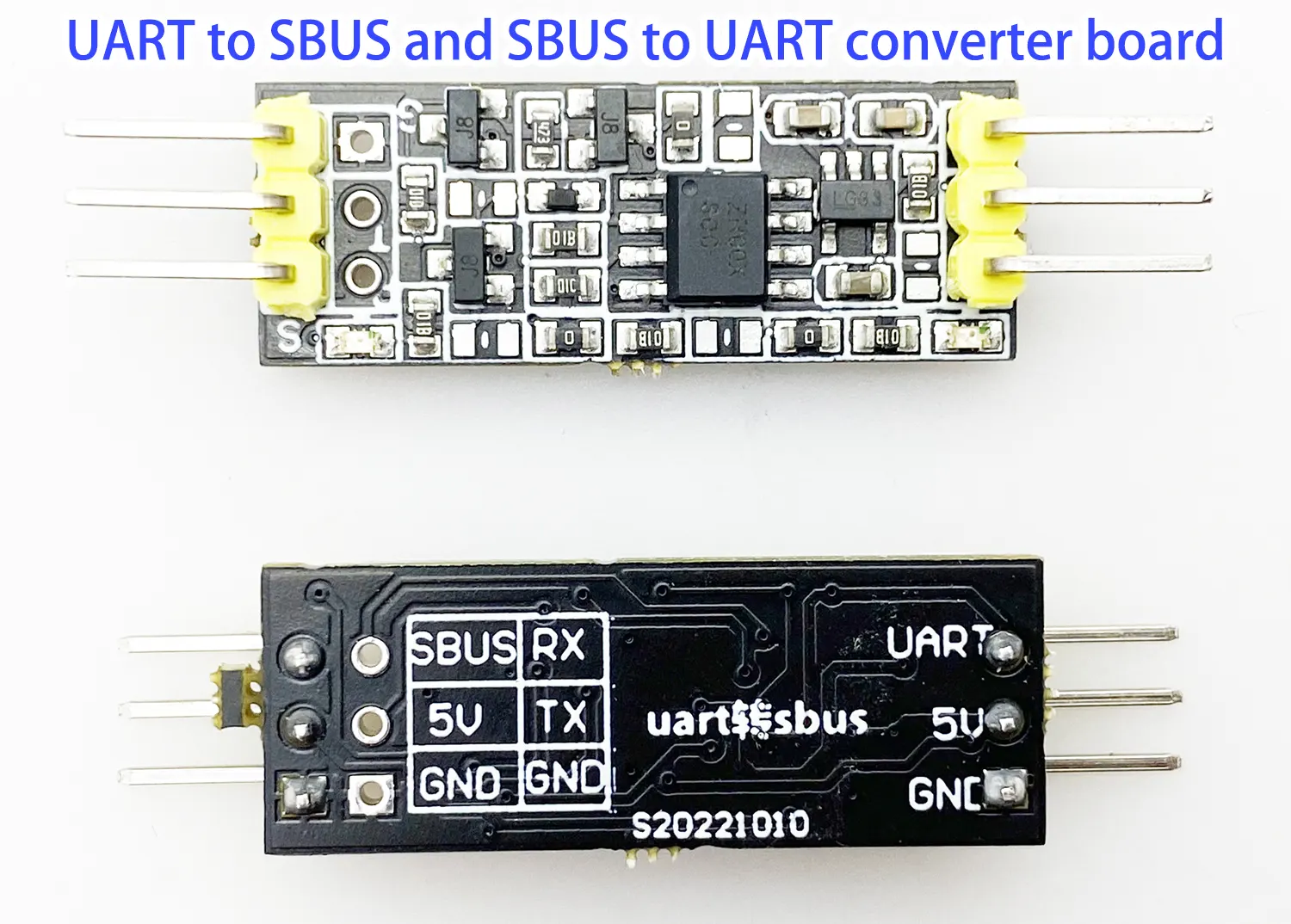

If you need it to support Sbus, we have to add one extra converter board from RS232 to Sbus.
更多的 operation about the RS232 to S-bus convertor.
Is it possible to add this RS232 to the Sbus adapter in the box of the link?
抱歉, can not. If you need to do that, the metal box will be bigger and increase the metal re-production cost.
What Frequency Range we can select (From X to Y MHz)?
The current frequency range is from 640Mhz-670Mhz. The center’s working frequency is 650Mhz. We also can customize it to meet your demand on other frequency ranges.
For camera video, Does the input support CVBS, HDMI, or IP (RJ45)?
Now only IP(RJ45) video input only.

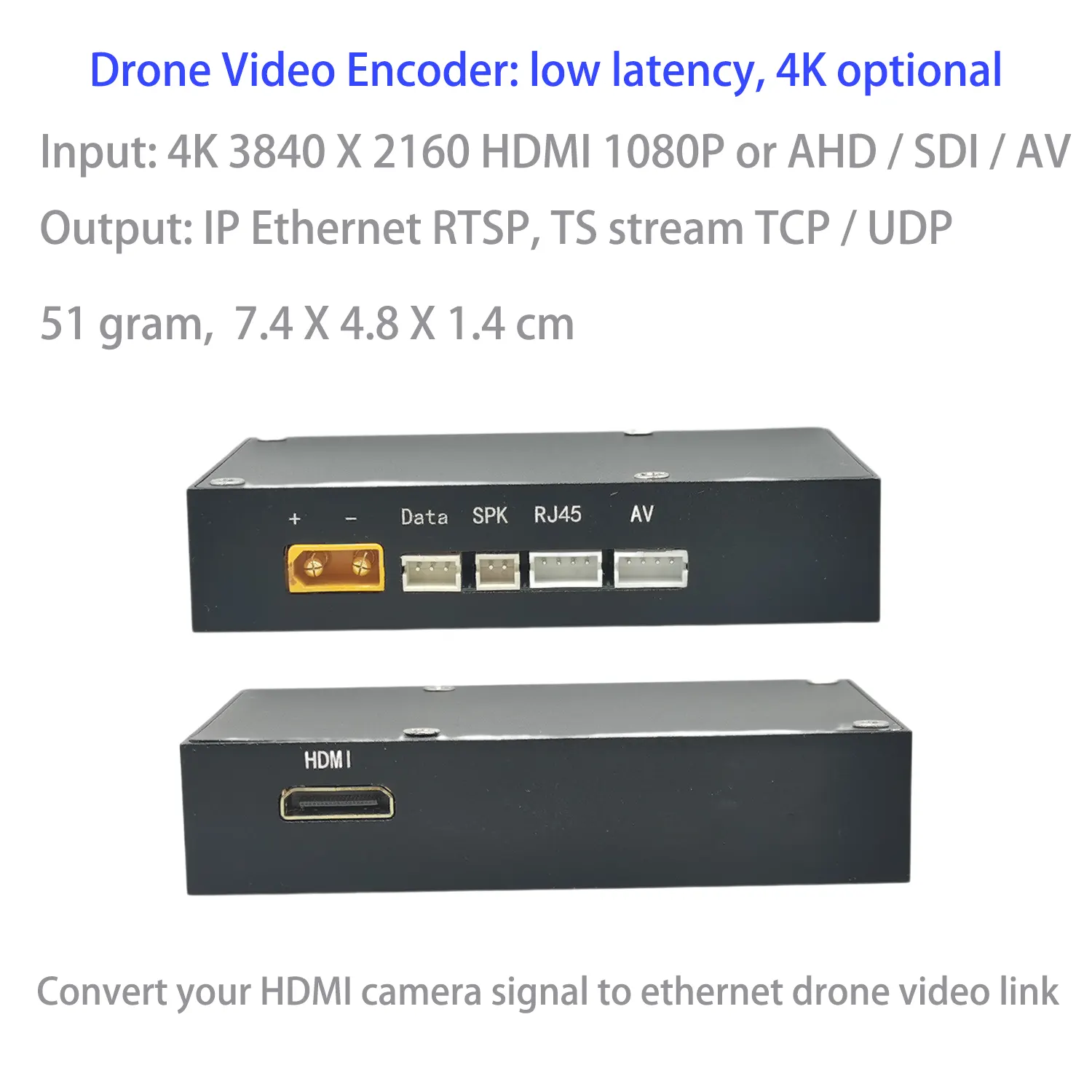

For CVBS and HDMI camera input, it needs an extended video encoder box with ethernet output.
for HD please explain all of the resolutions to be supported.
1080P
Is it possible to exchange air links with ground one?
是, 支持. The air transmitter and ground receiver are totally the same.
You can replace one more to re-pair the ground unit if the air transmitter is missing.
The system automatically identifies the roles of the transmitter and receiver and adjusts the upload and download rates between them. (Because video downloading requires more bandwidth and traffic than data transmission)

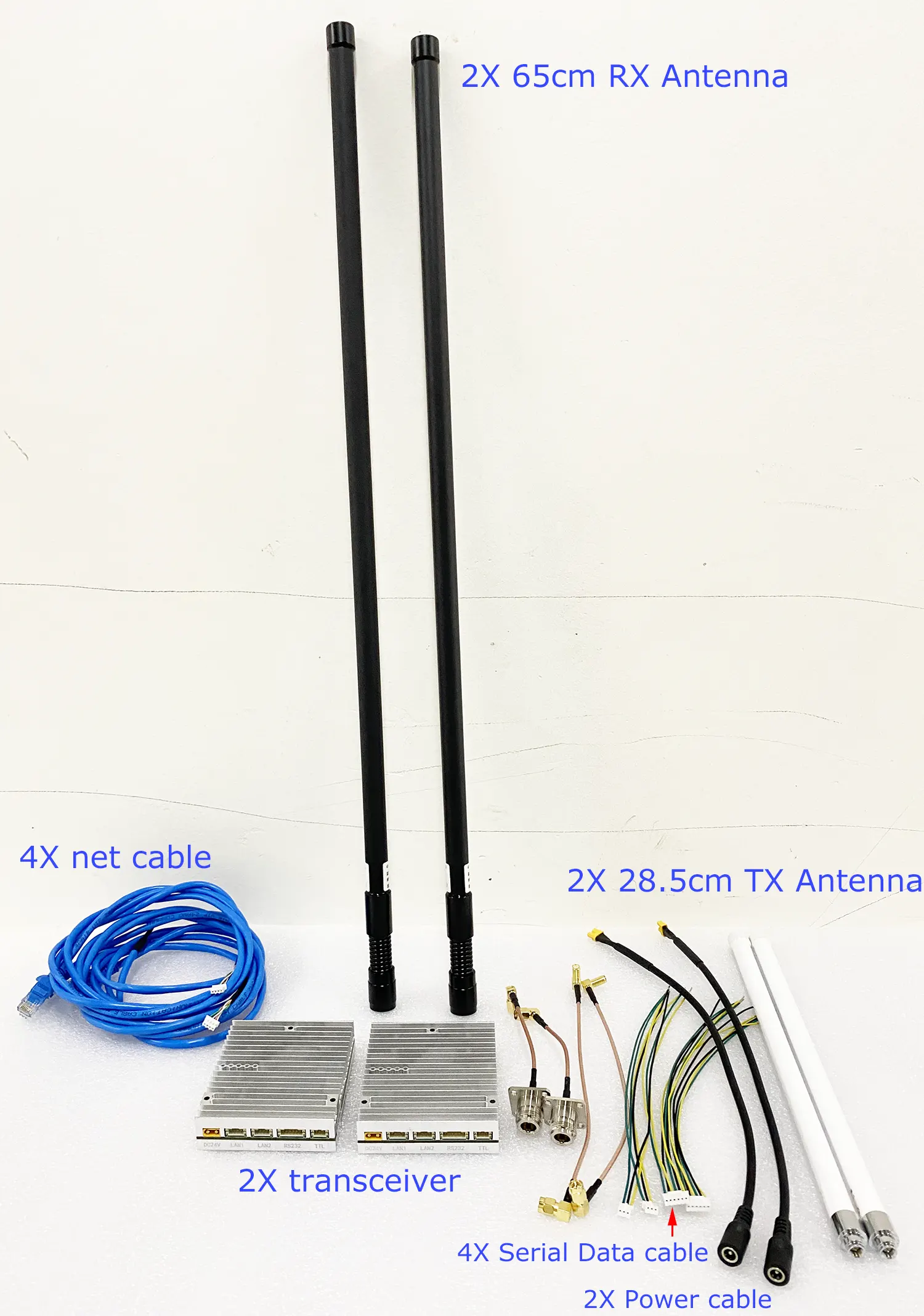

Can you provide a custom 2040-2072 Mhz frequency for this radio?
是, We can offer you the frequency from 2000-2200 Mhz for you.
How much is the weight of this VTX for drone wireless video data link?
277.5 克.
Does it support the transfer of 50 km from the air transmitter to the ground receiver?
If the flight Altitude is not less than 1000m, then 50km is not a problem at the current PA (功率放大器) and transmitter output power.
VTX is the abbreviation of video transmitter.
VTX for drone is a wireless video transmitter for drones. It can transmit the video taken by the aerial drone to the ground with ultra-low delay. So that the operator of the ground receiver can save the video, and adjust the flight altitude and direction of the drones without any delay.
VTX for drones needs to consider the following aspects.
- It must have the functions of one-way video downloading and two-way data transmission:
VTX for drone can not only download the real-time video of the UAV to the ground receiver, but also send the instructions issued by the operator of the ground receiver to the drone in the sky, such as zooming in and out of the cameras, or the flight control commands of the aircraft. - To support ultra-low latency, if the delay from the video data of the drone in the sky to the ground receiver is too large, it will delay the real-time control of the drone operation.
