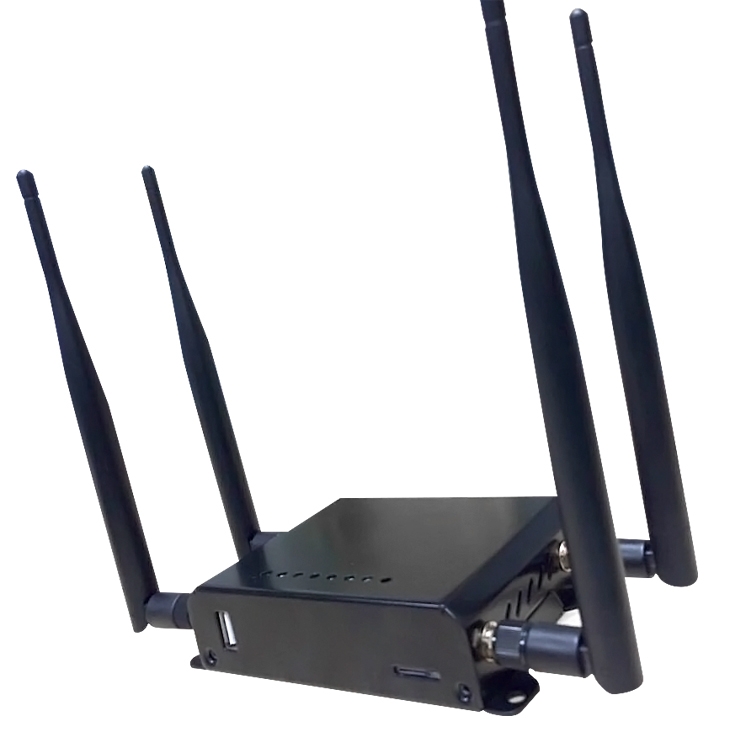

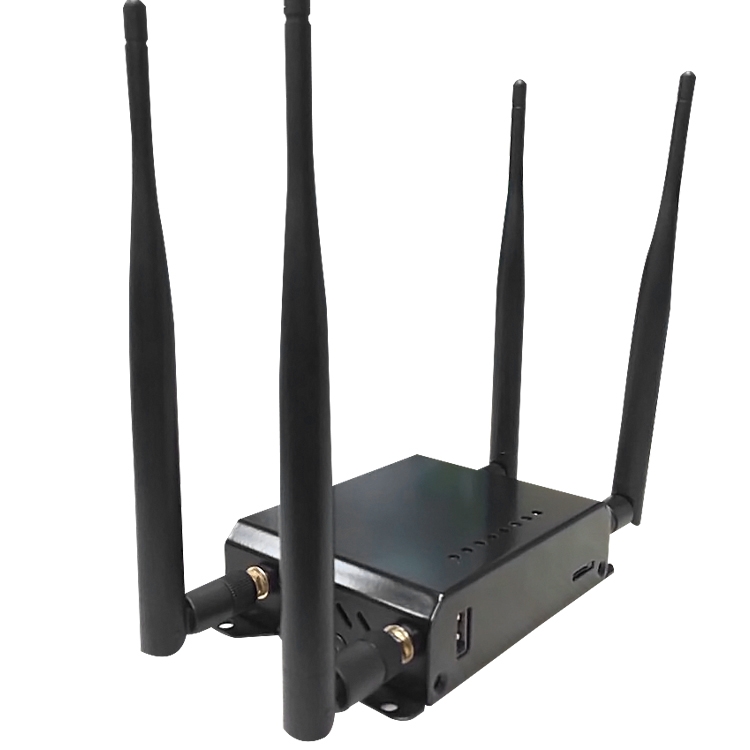

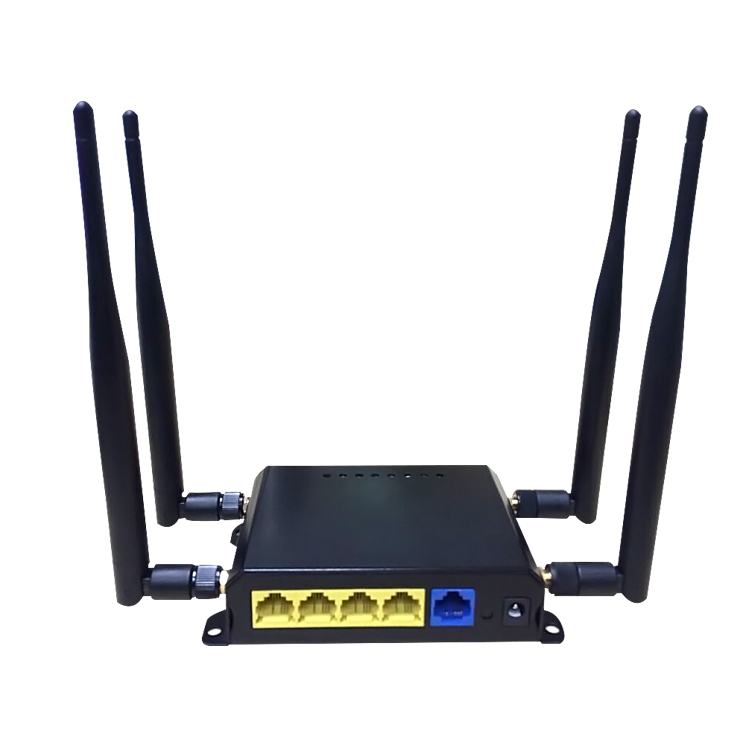

Bus wifi router OpenWRT
VCAN1321 Bus wifi Car wifi OpenWRT WiFi Router Stable wireless signal with antenna USB SD
وصف
The Wi-Fi router uses the latest wireless solution and performs better and more functions. Stable wireless performance, stronger scalability, the maximum transmission rate could be 1200Mbps (the 11ac PCIE mode is necessary). 2.4G 300Mbps, 5G will be 867M (الأعلى). Also supports 3G, and 4G (3ز、4G PCIE mode is necessary), it could also dial up via the USB port (should mount the 3G, 4G network card. يمد 1 USB2.0 interface and 1 Micro slot.
ميزة
Support 802.11ac / 802.11أ / 802.11n / 802.11ز / 802.11b network protocol, the transmission rate upto 1200Mbps (2.4G 300Mbps 5G 867Mbps)
يدعم 802.3 / 802.11 بروتوكول, 5 * 10/100Mbps Auto MDI/MDIX
USB2.0 interface
Micro SD Card Slot
Support 3G /4G and 11ac
Many kinds of way to protect your data transmission
مواصفة
| الأجهزة | ||
| Main Chipset | MT7620A | |
| RAM | DDR2 128MB (MAX DDR2 256MB) | |
| SPI FLASH | 16MB (MAX 32MB) | |
| بروتوكول | IEEE 802.11n、IEEE 802.11g、IEEE 802.11b、IEEE802.11ac 、IEEE802.11a IEEE 802.3、IEEE 802.3u |
|
| RT Power | 802.11b 18dBm±2dBm;
802.11g 15dBm±2dBm; 802.11n 15dBm±2dBm; 802.11ac depends on the 11AC mode; |
|
| Reception Sensitivity | 802.11b: -83dBm@10% PER
802.11ز: -74dBm@10% PER 802.11n: -68dBm@10% PER 802.11ac: depends on the 11AC mode; |
|
| Work Channel | 2.4GHz choose：1-13
5GHz choose ：149、153、157、161、165 |
|
| Wireless Rate | Max 1200Mbps（depends on the 11AC mode） | |
| Work
تكرار |
2.4غيغاهيرتز, 5.8غيغاهيرتز | |
| هوائي | 2*undetachable 5dBi antenna | |
| واجهة | 1*PCI-E slot
1*SIM card slot 1*USB 2.0 ميناء 1*Micro SD card slot 1*10/100/100M WAN port（Auto MDI/MDIX） |
|
| LED | قوة, PCIE mode,2.4ز, الشبكة الواسعة,LAN1, LAN2,LAN3, LAN4 | |
| Button | Reset/WPS | |
| Max Power consumption | < 12دبليو | |
| Dimension | 141*85*26MM (L * دبليو * H) | |
| برمجة | ||
| WAN Type | PPPoE, Dynamic IP, Static IP | |
| Work Mode | AP;
Router; |
|
| DHCP | Server, Client, DHCP Client List, Address Reservation | |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ | |
| Firewall Security | Dos, SPI Firewall
IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
|
| DDNS | يدعم | |
| VPN Pass-Through | PPTP, L2TP, IPSec (ESP Head) | |
| Band Ctrl | يدعم | |
| Static Router | يدعم | |
| System Log | يدعم | |
| Other Function | Mac clone NTP Synchronize Web firmware upgrade |
|
| Others | ||
| Work Environments | درجة حرارة التشغيل：0℃ ~ 60℃; درجة حرارة التخزين：-60℃~ 70℃;Operating Humidity：10%~90% non-condensing Storage Humidity：10%~90% non-condensing |
|
| محول | 12V 1A | |
| Authentication | ||
| Other accessories |
|
|
Packing detail
| اسم المنتج: | VCAN1321 |
| وزن الوحدة بما في ذلك العبوة: | 0.8كجم |
