Lensa Keluaran IP 19mm 640*512 Pencitra Termal dengan Gimbal 3 Sumbu
This is a single thermal imaging IP output gimbal camera, which adopts a 19mm focal length, 640×512 pixels resolution infrared thermal camera with 3-axis stabilization. It supports multi pseudo-color switching, area and point temperature measurement, Ethernet (standard RTSP stream) keluaran video, penyimpanan kartu TF lokal. Our ground control software allows you to control the PTZ and the thermal imaging camera at the same time. You would also be able to control the gimbal camera and read parameters through UART or UDP. We also provide multiple serial control protocols.
Fitur Fungsional
- 19mm 640*512 thermal
- multi pseudo-color mode
- 3-Gimbal yang distabilkan sumbu
- Lock & Follow mode
- 9x Pembesaran Digital
- 170ms low latency video streaming
- Ground control software/ app for display and control
Struktur Perangkat
| Voltase | 3S / 6S | |||||||||
| Konsumsi Daya | Dynamic 4W | |||||||||
| Thermal Camera | ||||||||||
| Resolusi | 640*512 piksel | |||||||||
| Spasi Pix | 12µm | |||||||||
| Jenis | Uncooled vanadium oxide infrared thermal imager | |||||||||
| Wavelength coverage | 8-14µm | |||||||||
| Thermal sensitivity NETD | <50mk@F1.0 | |||||||||
| Kontras, Pseudo color | Dapat disesuaikan, multiple pseudo-color mode | |||||||||
| Lens specification | 19mm lens, F1.0, FOV: 22.9° x18.4° | |||||||||
| Temperature measuring range | Titik tengah, Lowest, highest temperature display; Area and point temperature measurement |
|||||||||
| Working mode | 3-penstabil sumbu | |||||||||
| Berat | 372±10 gram | |||||||||
| Roll angle action range | -45—+45°, Jitter ±0.02° | |||||||||
| Pitch angle action range | -45—+120° | |||||||||
| Yaw angle action range | -280—+280°, Jitter±0.03° | |||||||||
| Gimbal Mode | Support one key back to center, Lock/Follow Mode; Angle setting, position reading |
|||||||||
| Modus Kontrol | PWM, SBU, UART & UDP control; Ground Control Software/App |
|||||||||
| Kondisi Kerja | -20°C hingga +60 °C / 20% ke 80% RH | |||||||||
| Stored Environment | -40°C hingga +70 °C / 20% ke 95% RH | |||||||||
| Aplikasi utama | Fotografi udara UAV | |||||||||

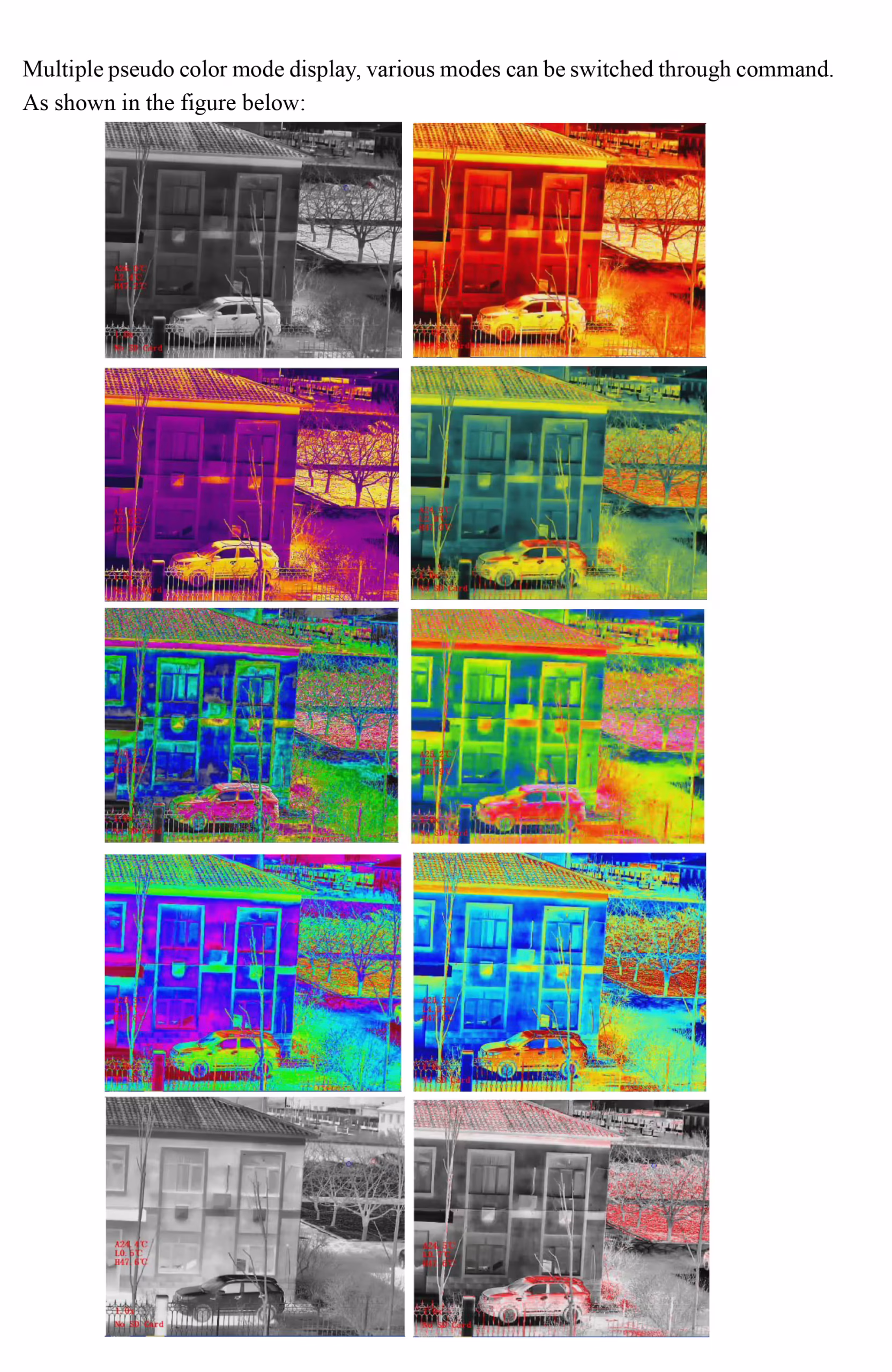

Pseudo Color Switching
Antarmuka
Lucas –
This thermal imager gimbal combo is our team’s night vision superhero! The 19mm wide-angle lens captures expansive heat signatures across entire factory floors or wildfire zones, while the 640×512 thermal sensor reveals critical details—like overheating machinery or trapped survivors—in pitch darkness or thick smoke. Paired with rock-solid 3-axis stabilization, footage stays perfectly steady even on speeding drones through turbulence. IP streaming is revolutionary: we monitor live thermal feeds across tablets and command centers, enabling real-time decisions during midnight emergencies. Its IP67-rated housing survived ash storms and torrential rains. For firefighting, security, or industrial inspections, this unshakable thermal eye redefines 24/7 situational awareness—saving lives and assets daily
