VCAN1244 Universal 5.8G & 2.4G WIFI Wirelss MirrorLink BOX

VCAN1244 Universal 5.8G & 2.4G WIFI Wirelss MirrorLink BOX

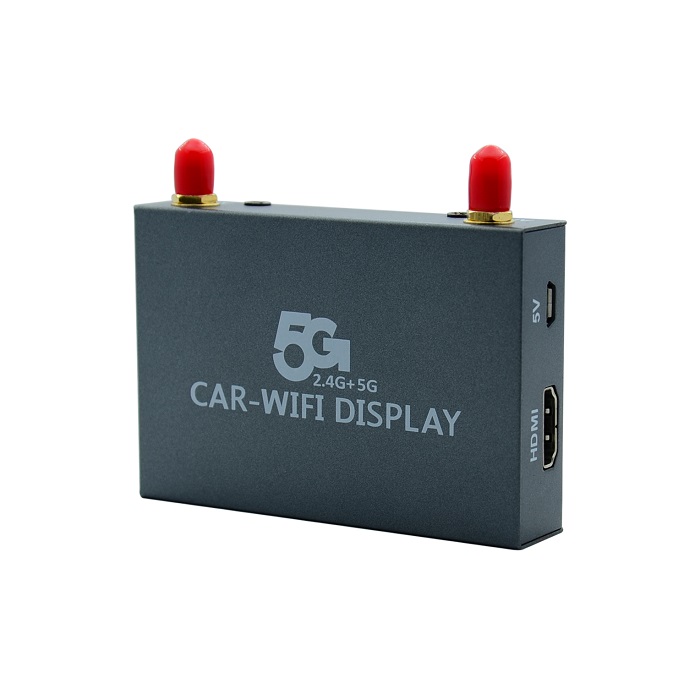

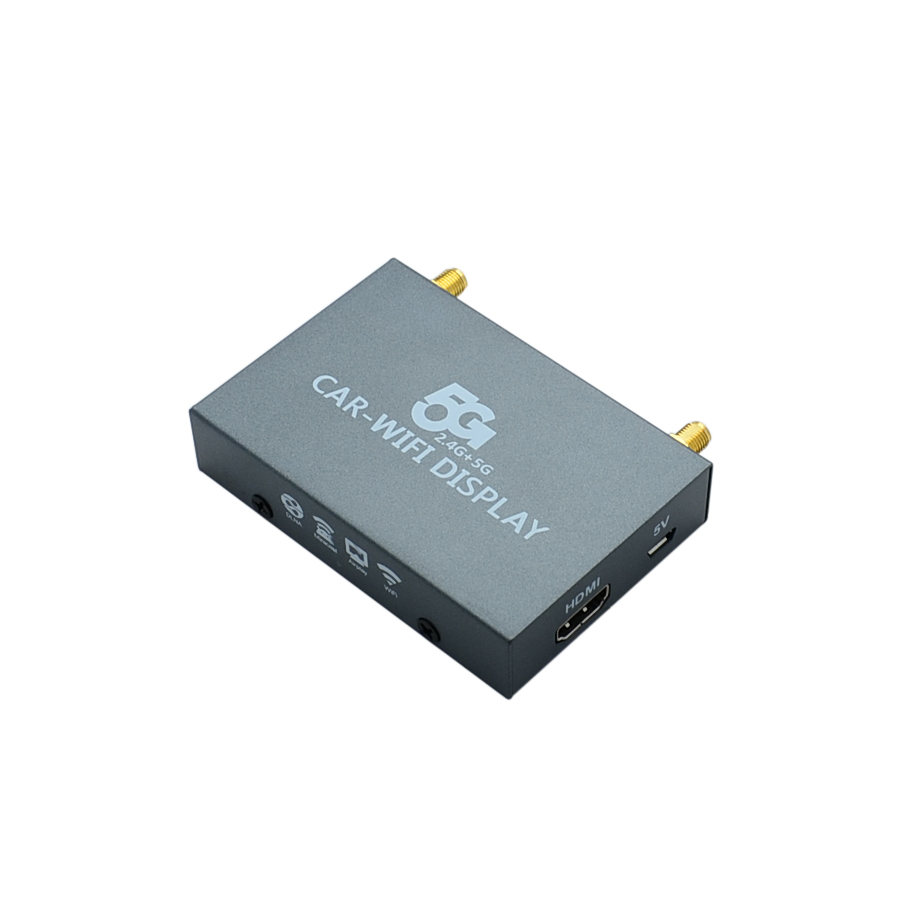

VCAN1244

Phổ thông 5,8G & 2.4G WIFI Wirelss MirrorLink BOX w/o Interference

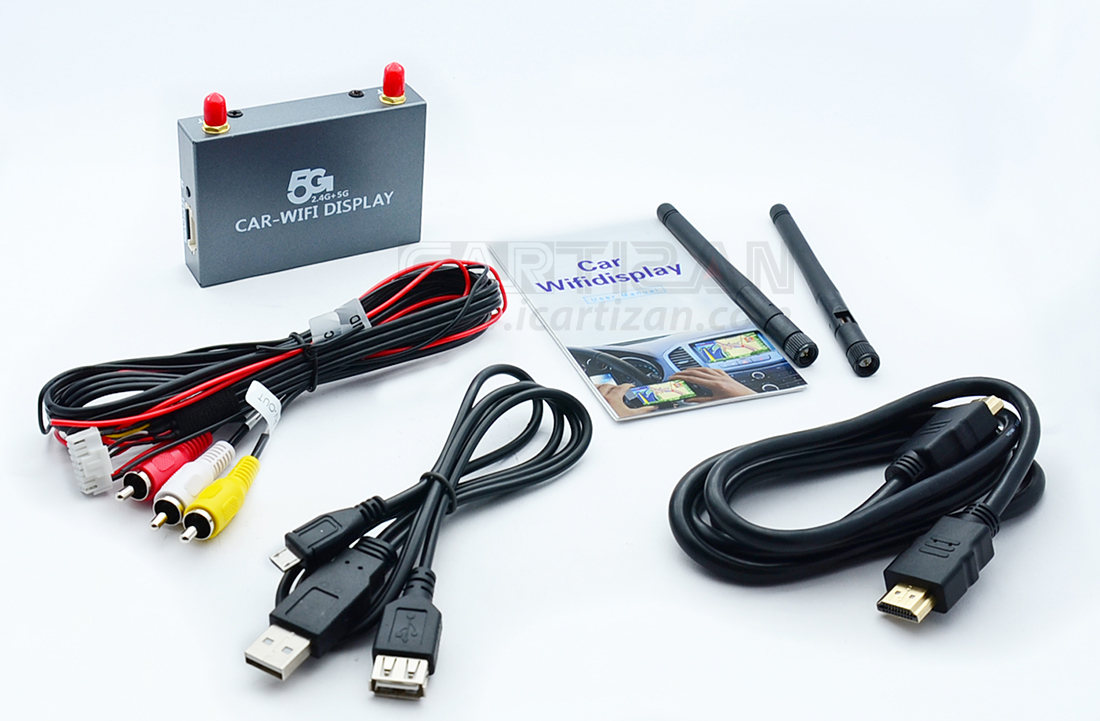

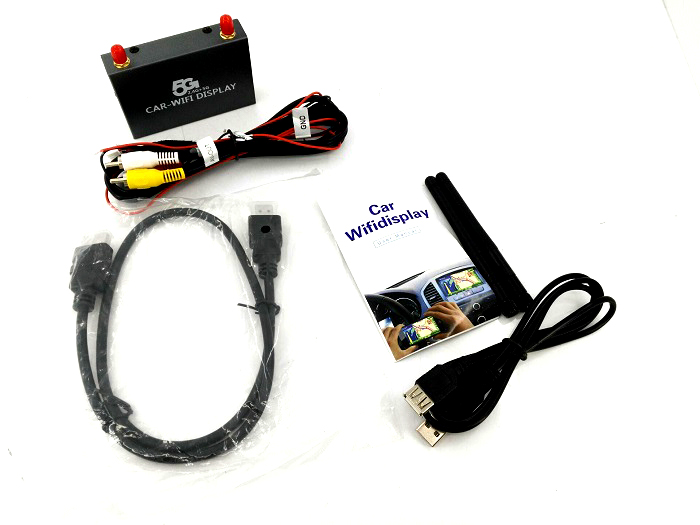

►Product composition

①　external antenna

②　Red, yellow, white standard AV interface

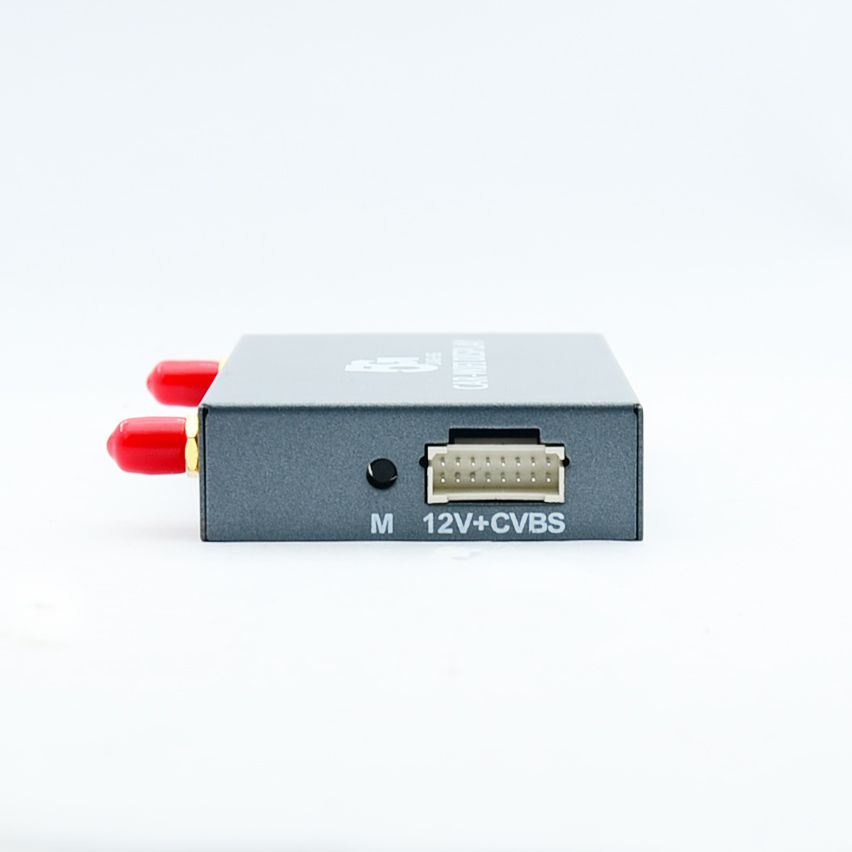

③　12V power supply (red positive, negative black)

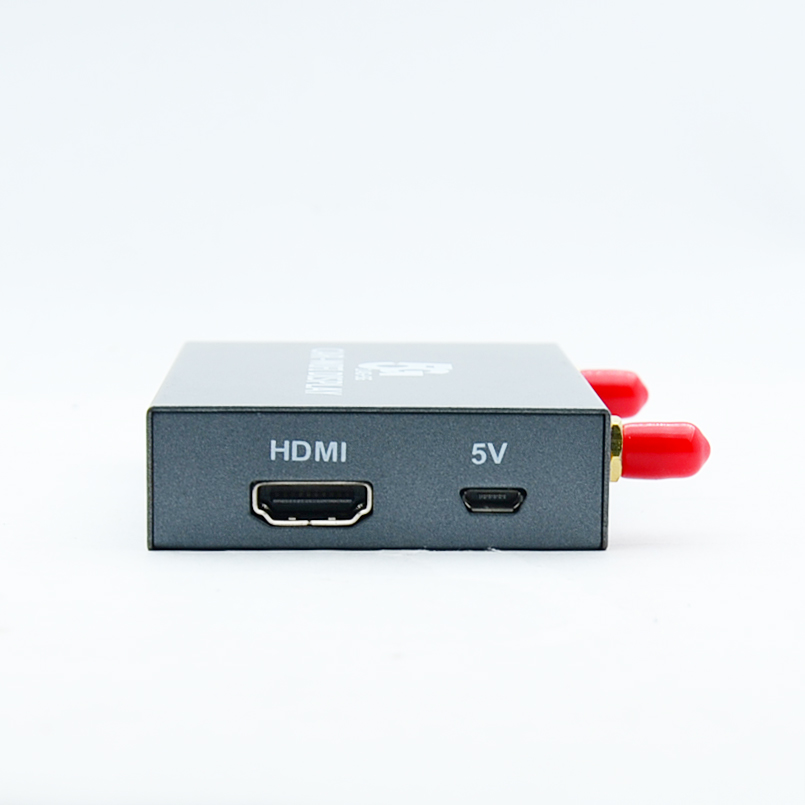

④　HDMI cable

⑤　USB power cable

►Installation Method

Schematic diagram：

• Switching the corresponding signal input on car display；
• Use the picture  device above connected to the AV port on the car display；
• 12V power input device on the image above (positive red, black negative) to the rear of the car’s 12V power supply，Or directly access to the USB cable into the back behind the car’s USB port for the 5V power supply
• After the installation is successful, the following figure appears on the monitor screen.
• ►Mirror（IOS）IOS connection (Airplay Mirroring)，take iPhone5 IOS8 for example, look at the figure。

  First open the phone wifi settings – connected devices wireless signal; call up the Control Center to find and select the device checked Airplay mirroring, then mirroring successfully!

• IOS Model description (mirror synchronization)iPhone：4s55c5s66 Plus…

  iPad：234airmini12…

  MAC:Apple’s official website to check prevail

  iTouch5



  ►Miracast（For Android）

  Take the native Android system (Native Android 4.2 hệ thống) for example ; open the phone “Cài đặt” – “Trưng bày” – “Wireless Display”, look at the following picture.

  • The above is a native Android system connection method，At present, mobile phone manufacturers name MIRACAST is different ,and the function location are also different. Ví dụ, the Samsung models are called Allshare cast, The screen image, Screen mirroring, and some are named WLAN display;
  • After connect with the screen, there are not any conflict between wifi Internet or mobile Internet.
•



  ►Connect the router

  By connecting the device to the router, IOS mirror can be connected to the same network mirror screen to cast



  The first method：

  1、Firstly let the phone’s wifi to connect with devices, and then open the web browser and enter the IP address in the address bar: 192.168.59.254, the phone screen appears in the following figure after the connection is successful, the phone will enter the second picture above.

  2、Open WIFI Connection item, the system will automatically scan the current environment, the wireless router diagram, select the corresponding wireless router and enter the password, click submit button and then point OK, the interface will automatically exit. Wait about 5 seconds the device can be connected to the router (AP name will be displayed on the connected TV).
