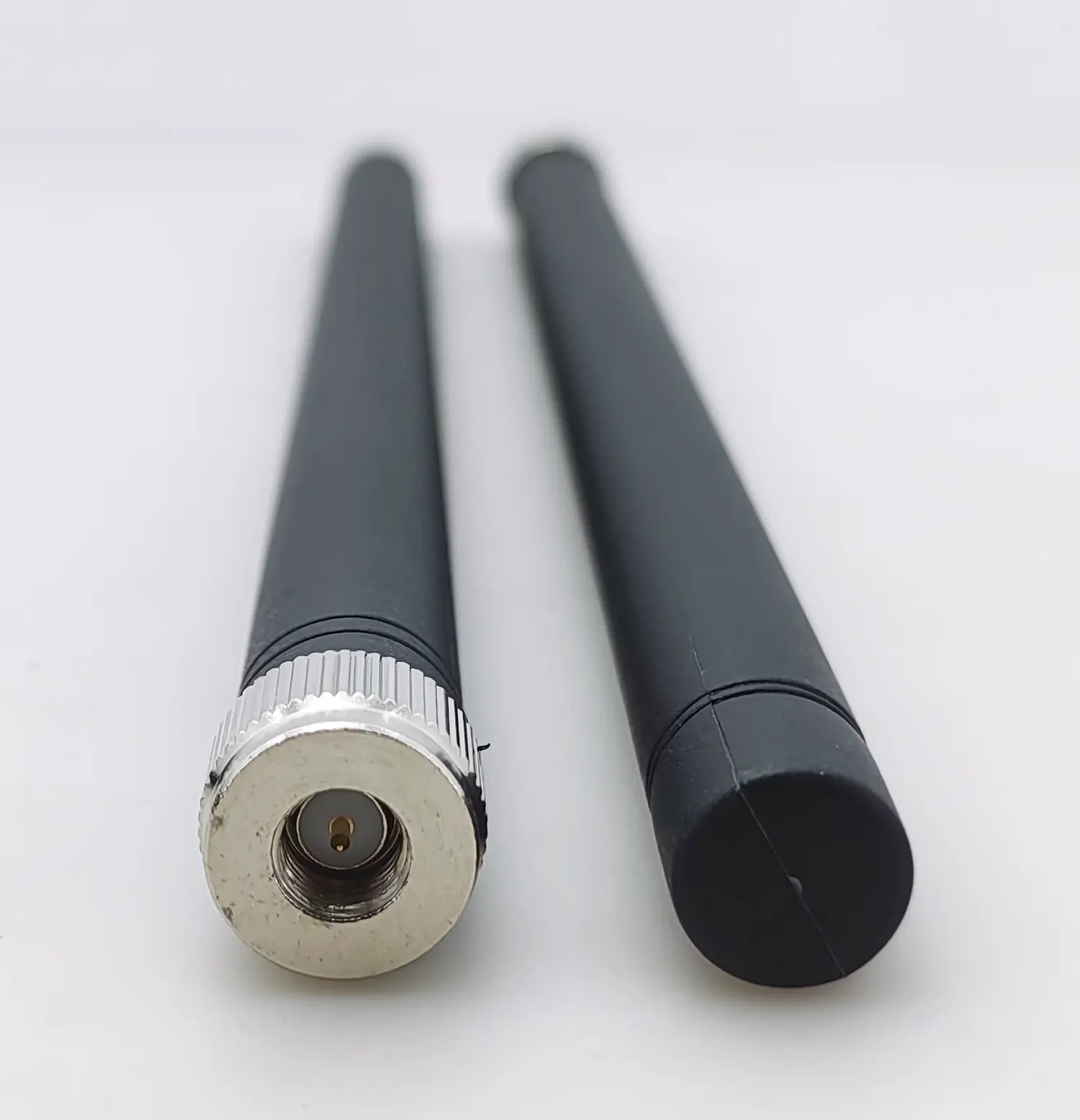

tiny rubber omnidirectional antenna 1.4G-1.5G for two-way video data transceiver 20cm

规格
| 类别 | Rubber omnidirectional Antenna |
| 模型 | |
| Frequency Range-MHZ | 1400~1500 |
| Bandwidth-MHZ | 100 |
| Gain-dBi | 2.5 |
| 驻波比 | ≦1.5 |
| Nominal Impedance-Ω | 50 |
| 极化 | Vertical |
| Maximum Power-W | 30 |

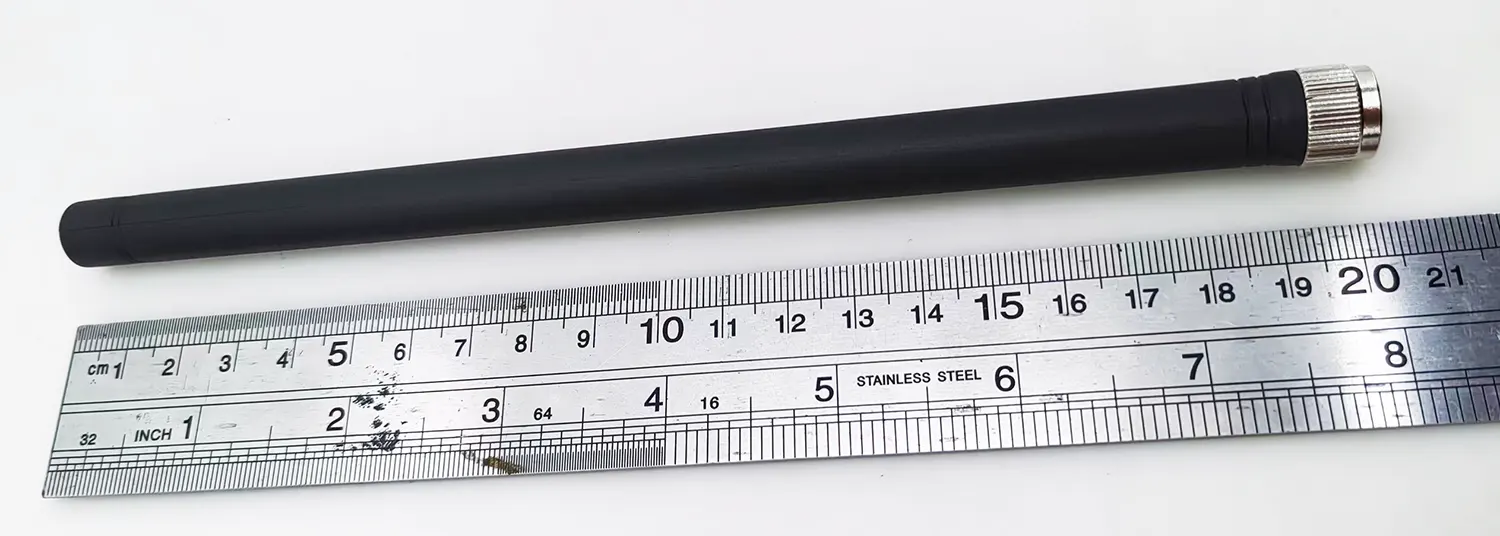

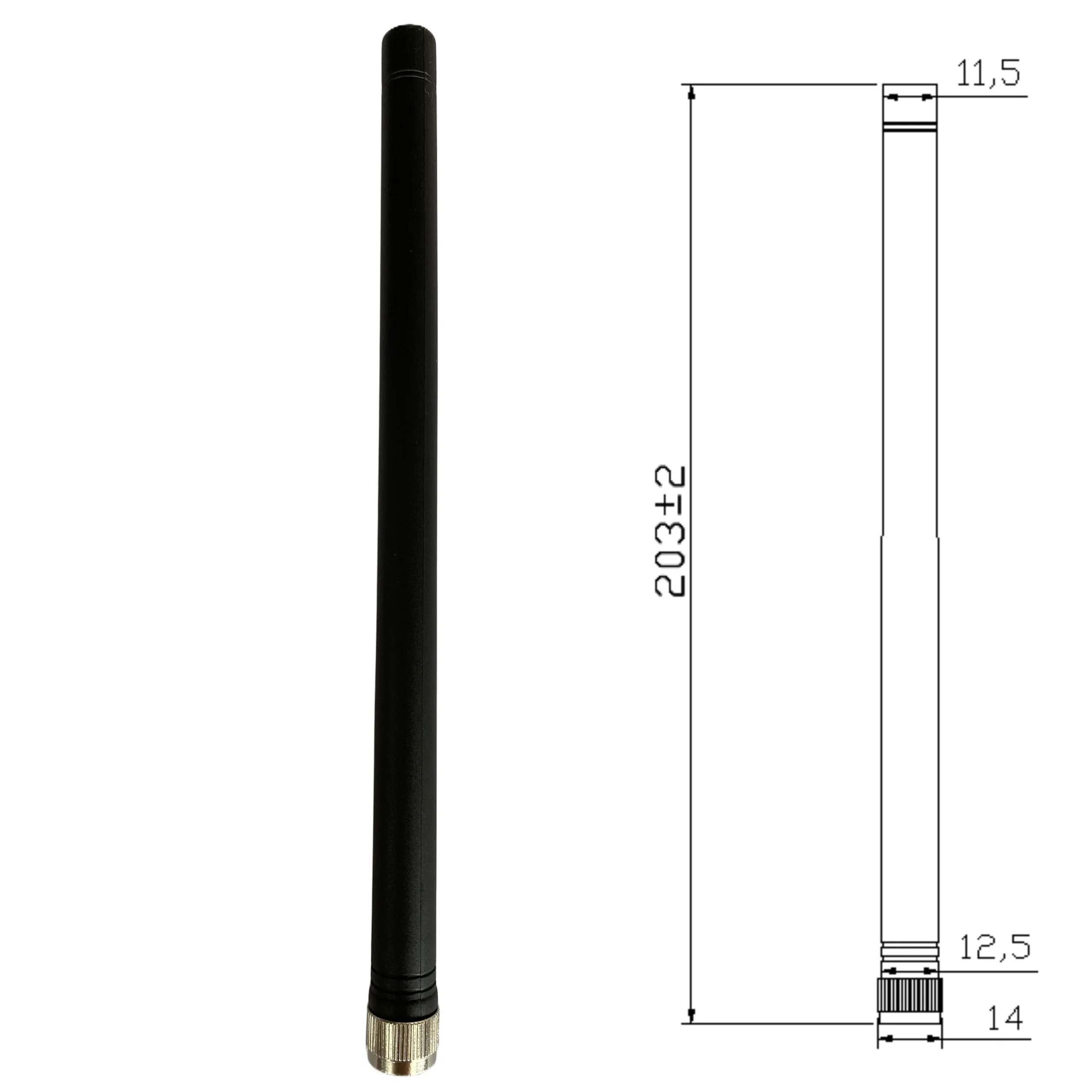

| Dimension-cm | 17-20厘米 |
| Weight-g | 50 |
| 连接器 | SMA |
下载
画廊



200Mhz and 500Mhz Antenna






isdb-t.com_buyer –
This tiny rubber omnidirectional antenna is a game-changer for our long-range drone video links! Despite its compact and flexible 20cm design, it delivers shockingly reliable performance in the 1.4G-1.5G band, providing stable two-way video and telemetry even in challenging environments. The signal consistency is impressive—whether our drone is banking, diving, or flying behind light obstacles, the connection remains strong with minimal dropouts. It’s incredibly easy to install and practically indestructible, surviving bumps, bends, and harsh weather. For anyone needing a durable, low-profile antenna that doesn’t sacrifice range or clarity, 这是绝对必备的!
